HF-24

- Compatible with: SSU31, SSU33L, TSR19

ELDAS®: 528790800

Approvals	EAC

Approvals

Data sheet

3D-models "HF-24"

HF-24 / STEP file

Accessories

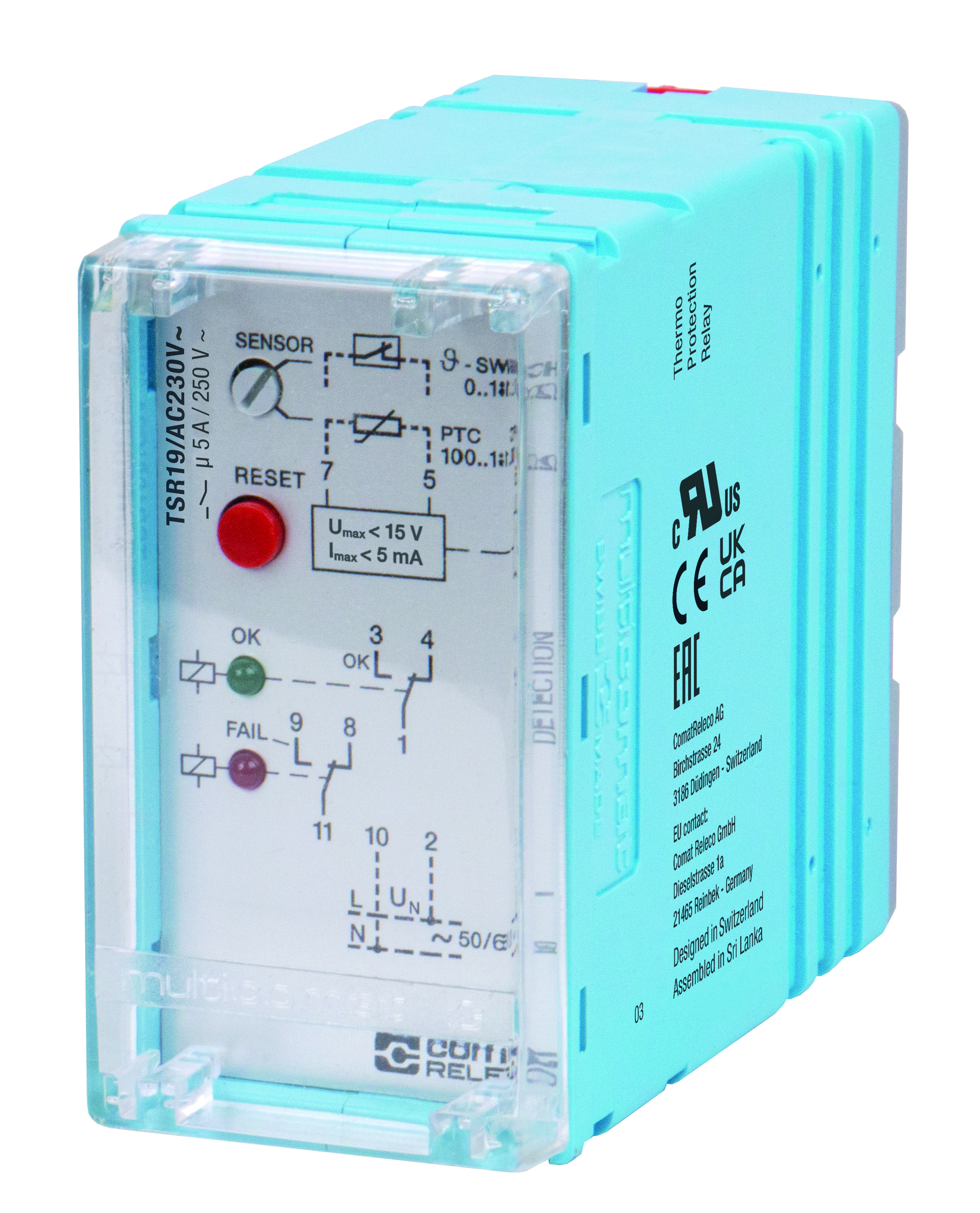

TSR19/AC230V

- 2 changeover contacts (Alarm & OK)
- Contact material AgNi
- PTC sensor or thermo switch
- Measuring range sensor resistance 100-1800

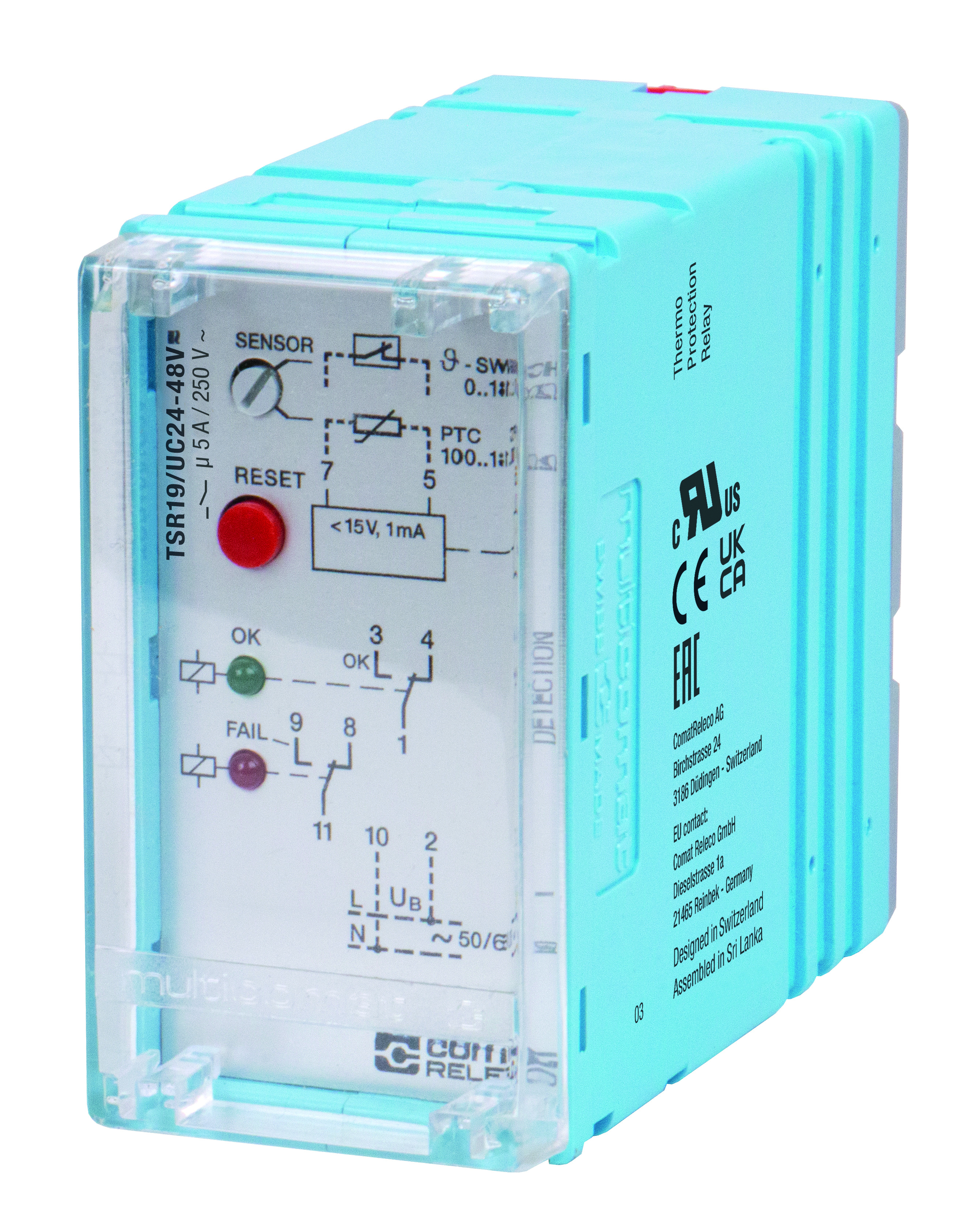

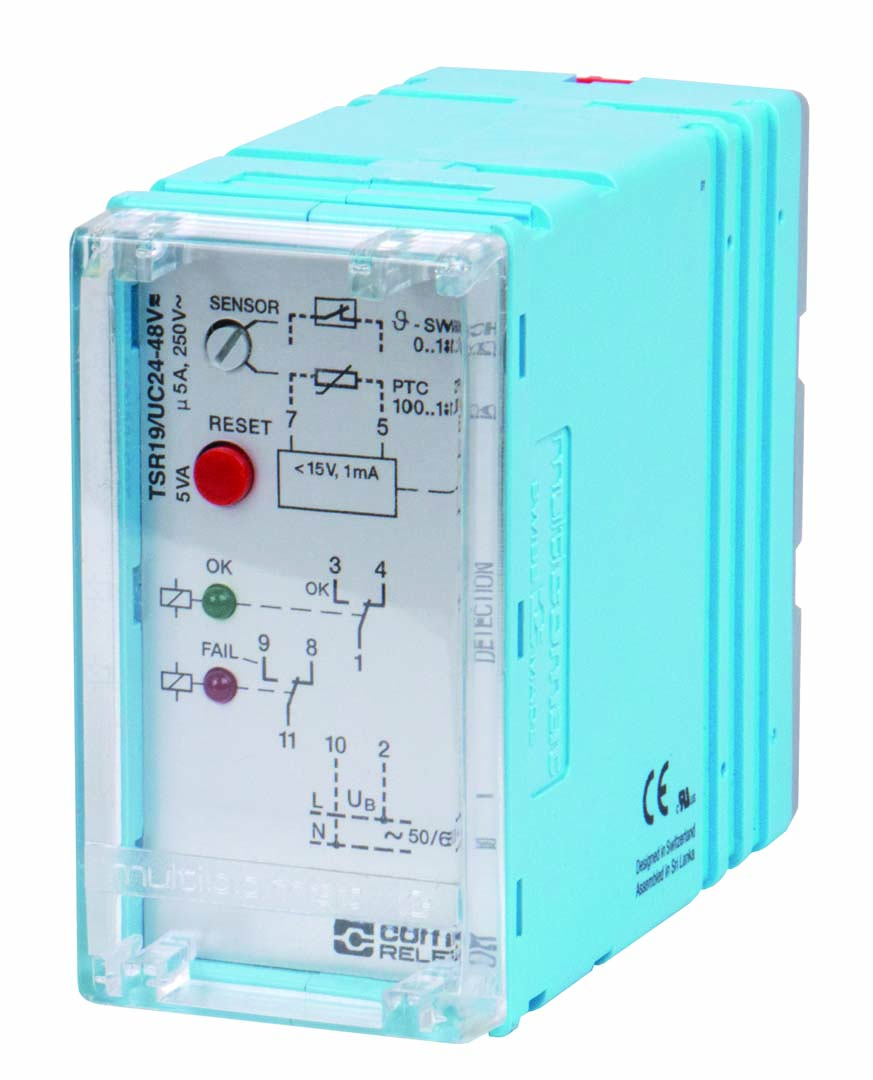

TSR19/UC24-48V

- 2 changeover contacts (Alarm & OK)
- Contact material AgNi
- PTC sensor or thermo switch
- Measuring range sensor resistance 100-1800

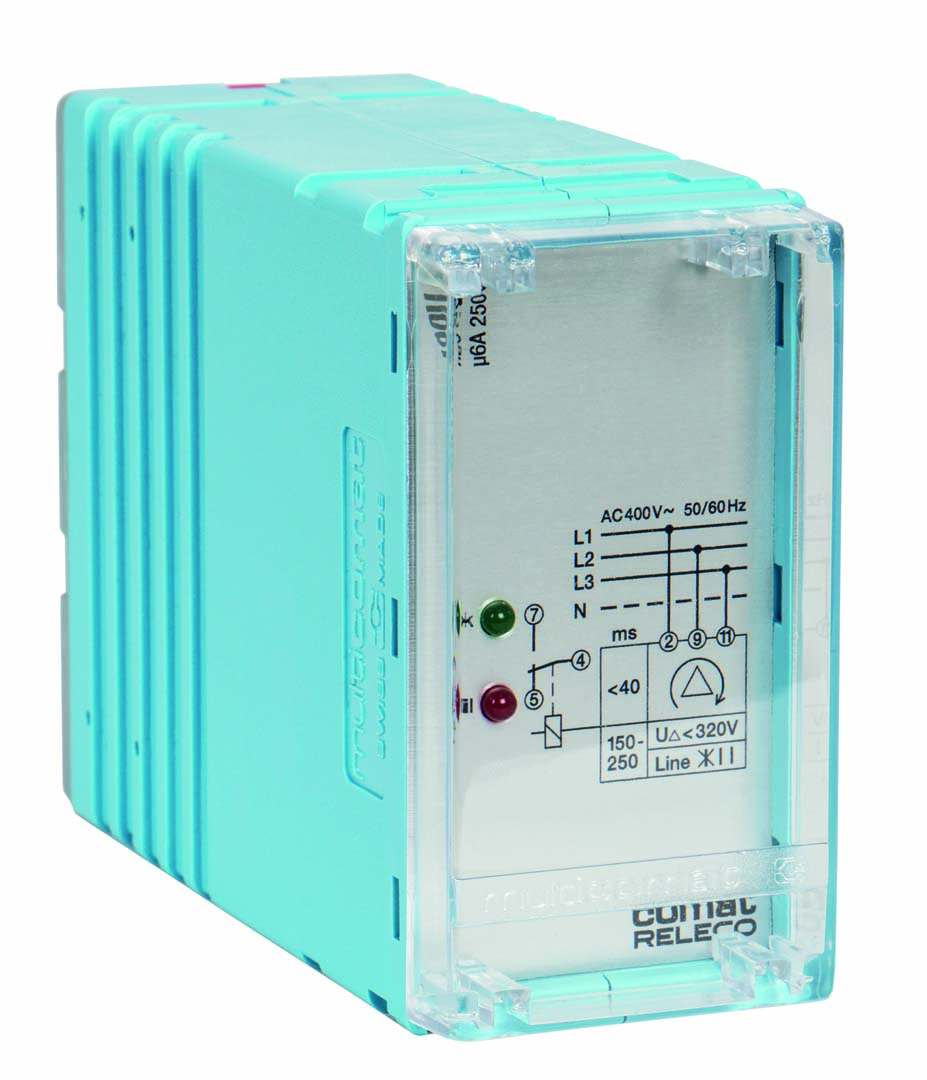

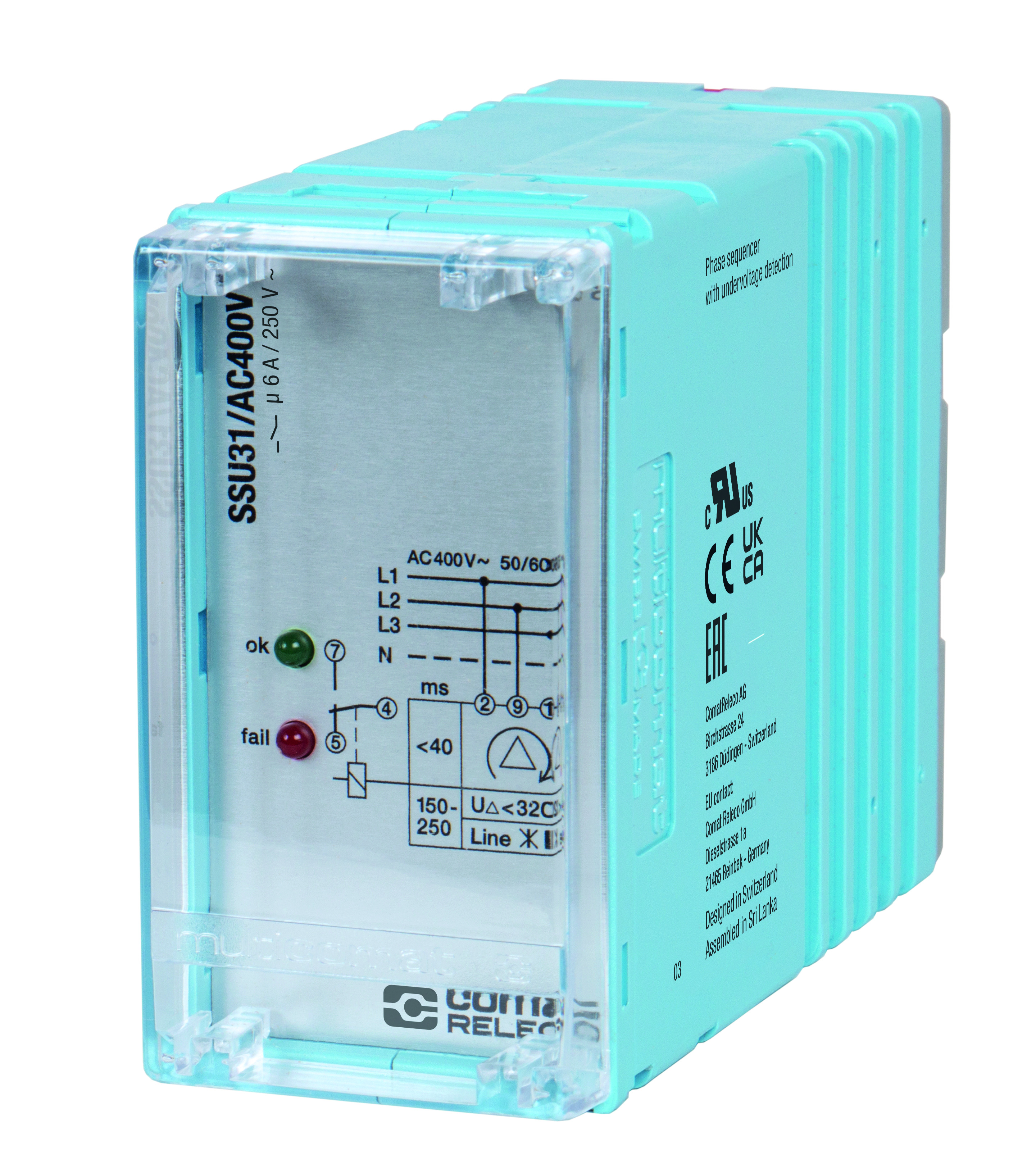

SSU31/AC400V

- 1 changeover contact
- Contact material AgNi
- Pluggable
- Monitoring: phase sequence, phase failure, undervoltage

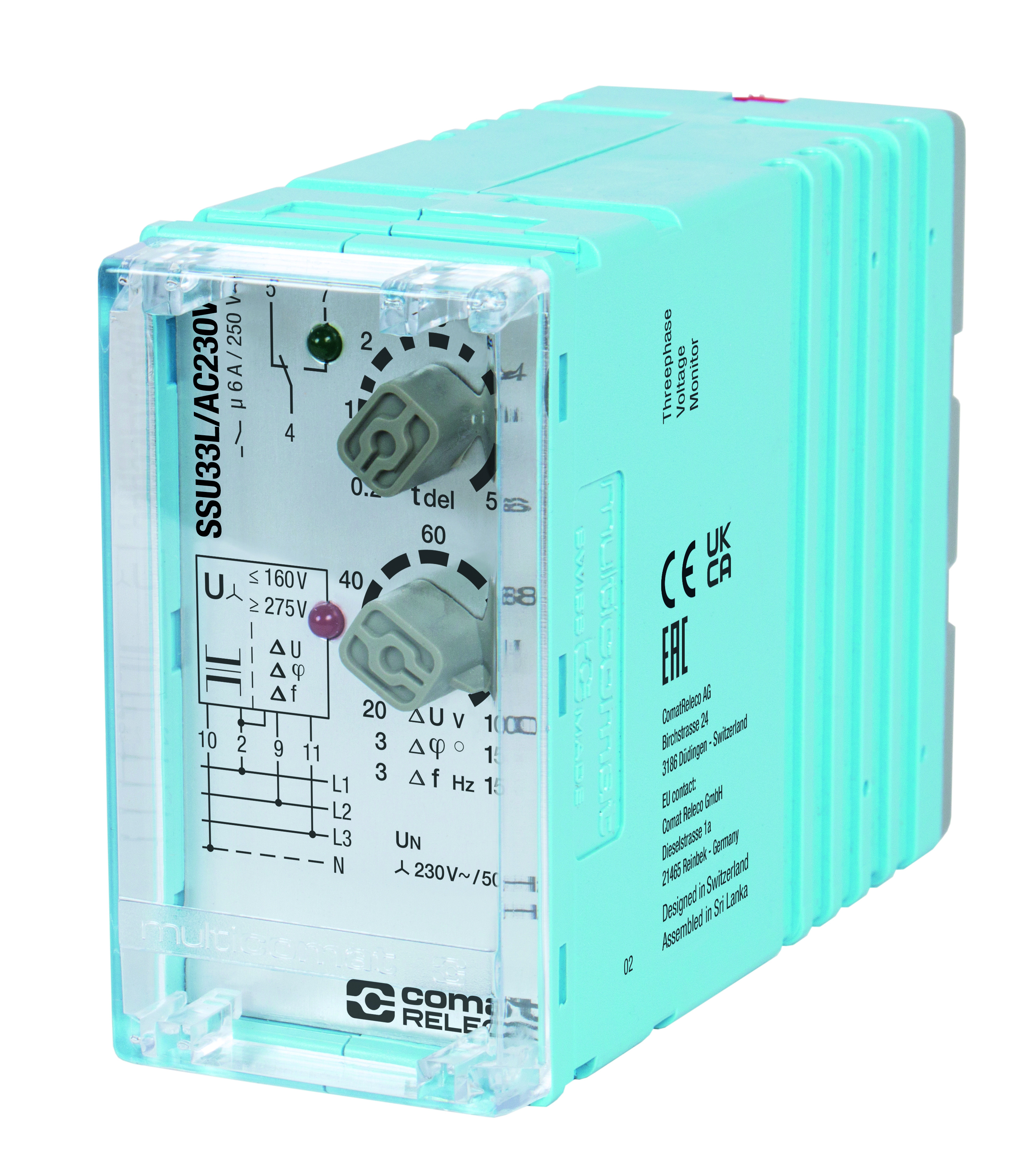

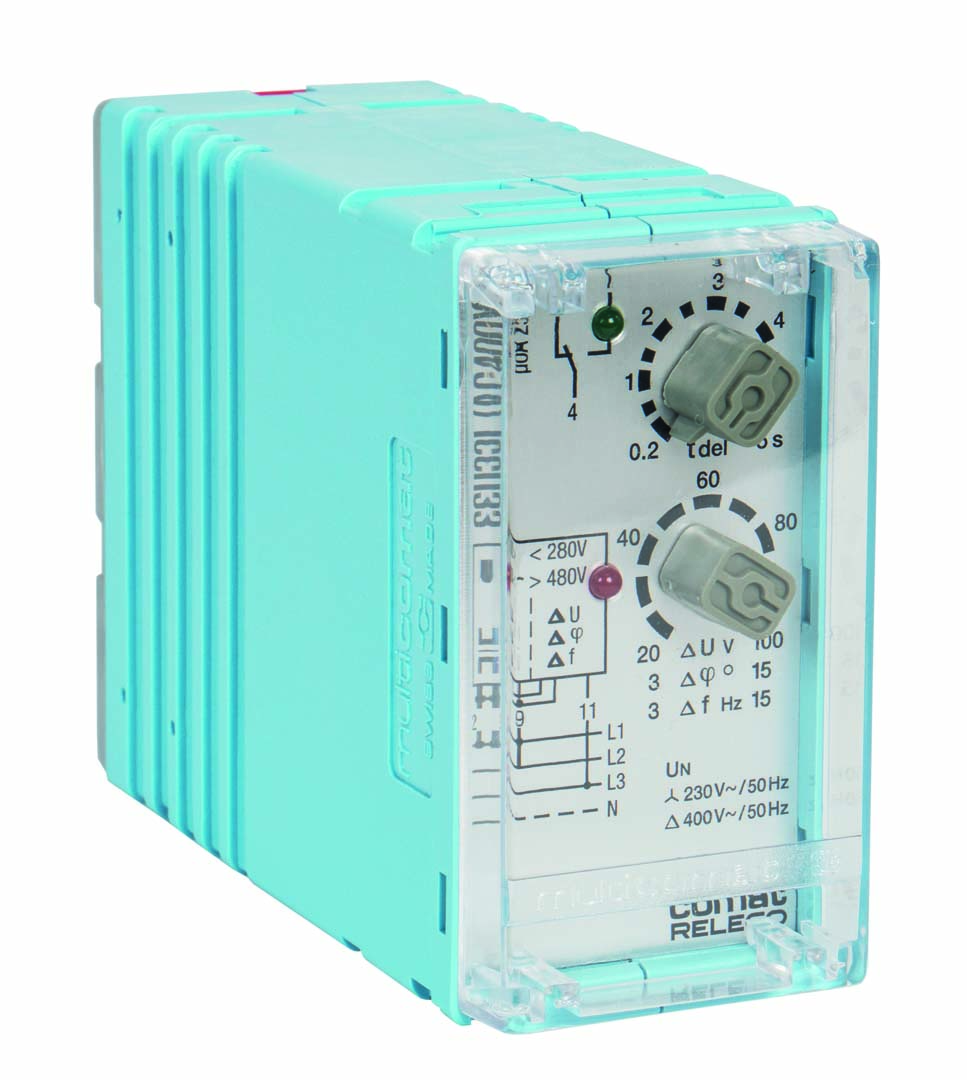

SSU33L/AC230V 50HZ

- 1 changeover contact
- Contact material AgNi
- Pluggable
- Monitoring: phase sequence, phase failure, undervoltage, overvoltage, frequency

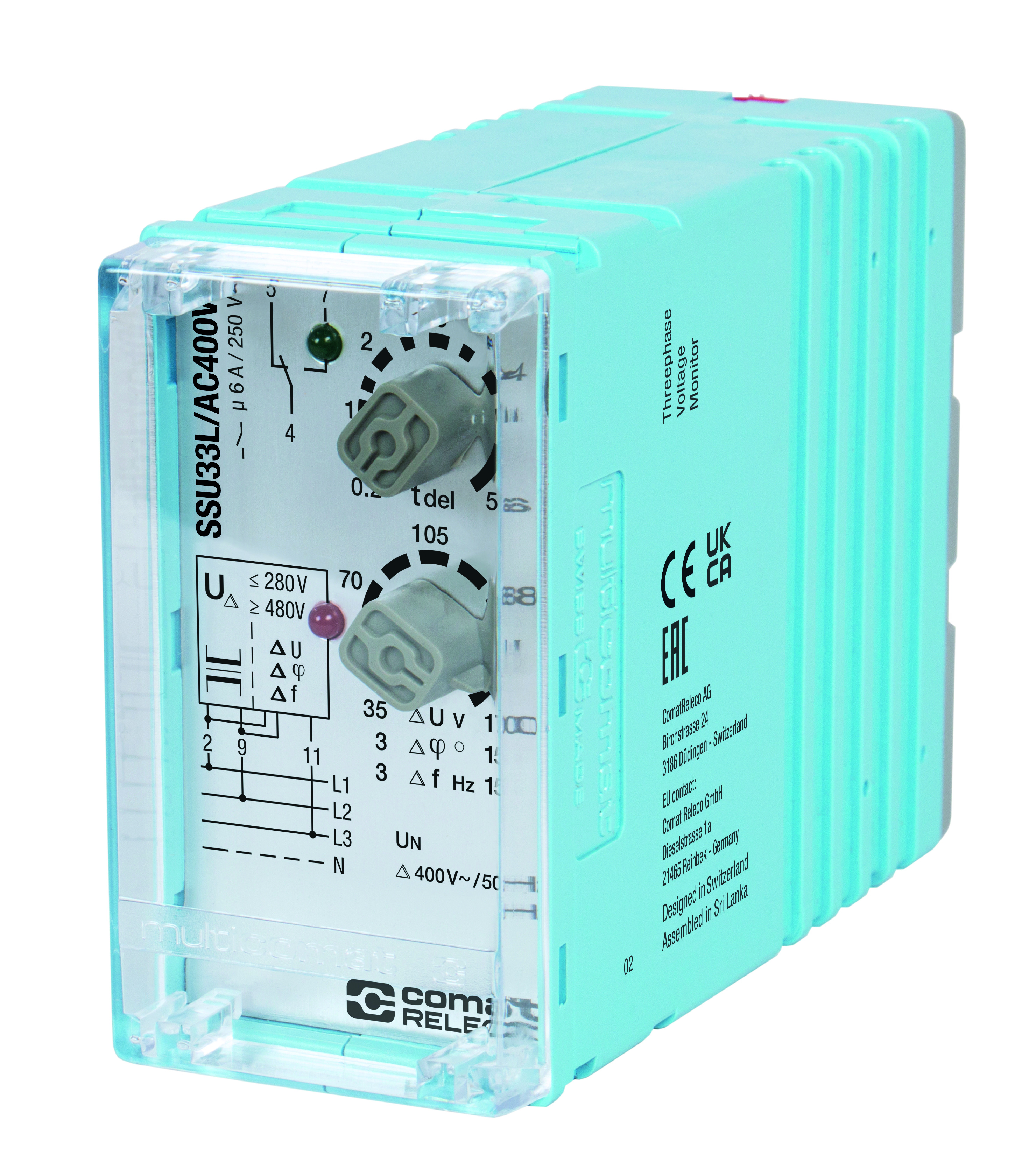

SSU33L/AC400V 50HZ

- 1 changeover contact
- Contact material AgNi
- Pluggable
- Monitoring: phase sequence, phase failure, undervoltage, overvoltage, frequency

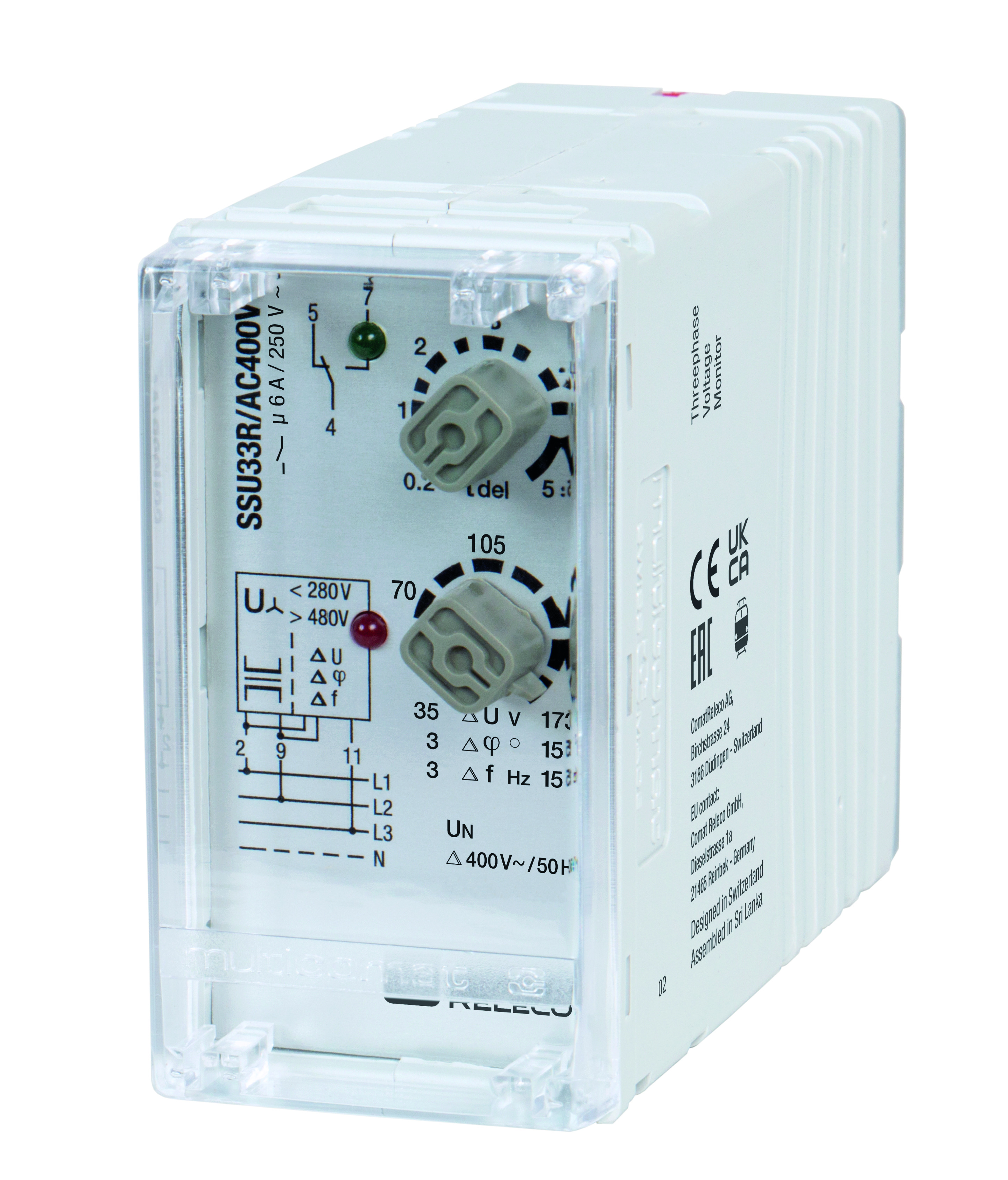

SSU33R/AC400V 50 HZ

- 1 changeover contact
- Contact material AgNi
- Pluggable
- Monitoring: phase sequence, phase failure, undervoltage, overvoltage, frequency

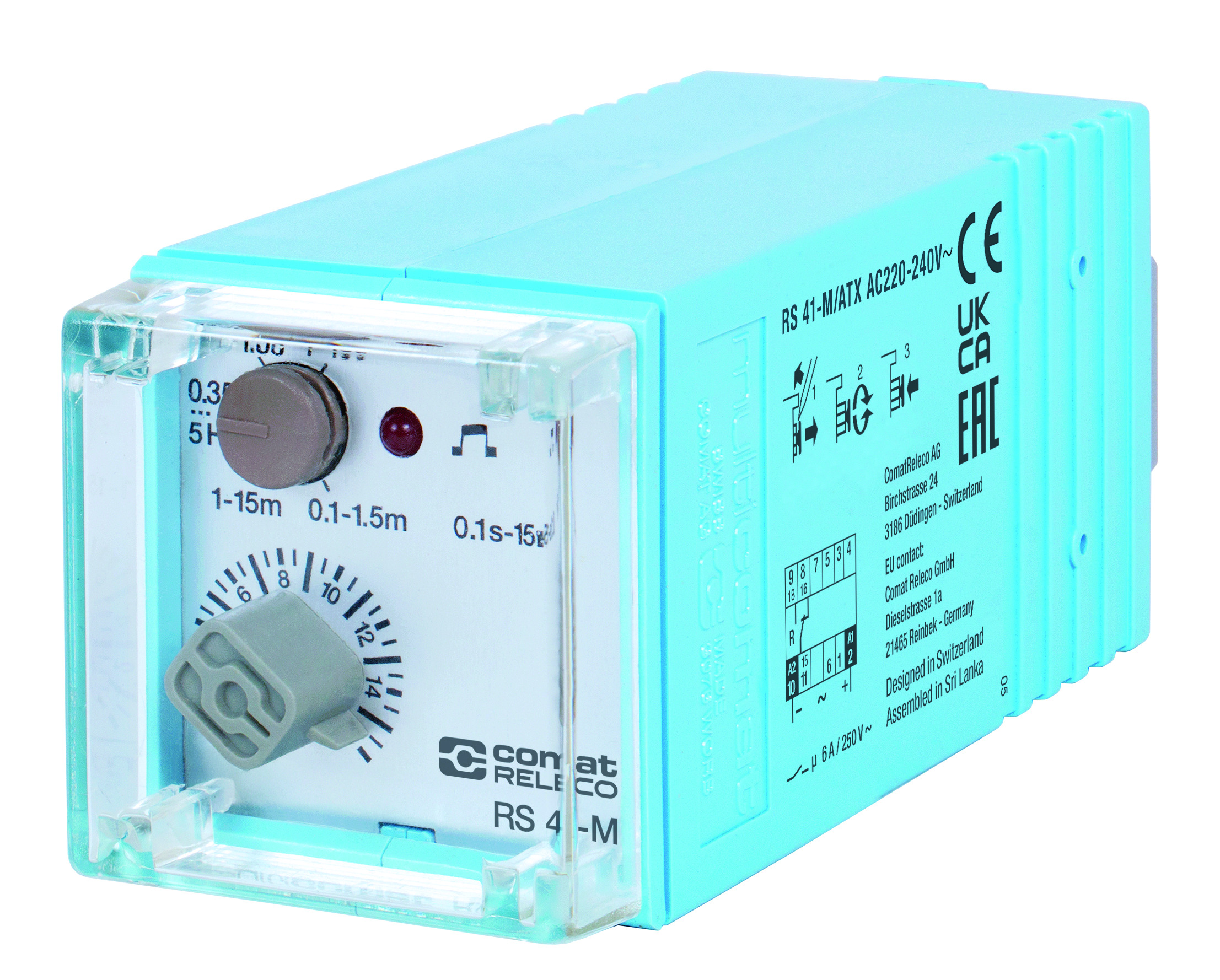

RS 41-M/ATX AC220-240V

- 1 pole
- Changeover contact
- Contact material AgNi
- 6 A @ 250 V AC
- Pluggable
- Time functions: E, W, B, A, K

S2-B

- 10 A @ 300 V

S3-B

- 10 A @ 300 V

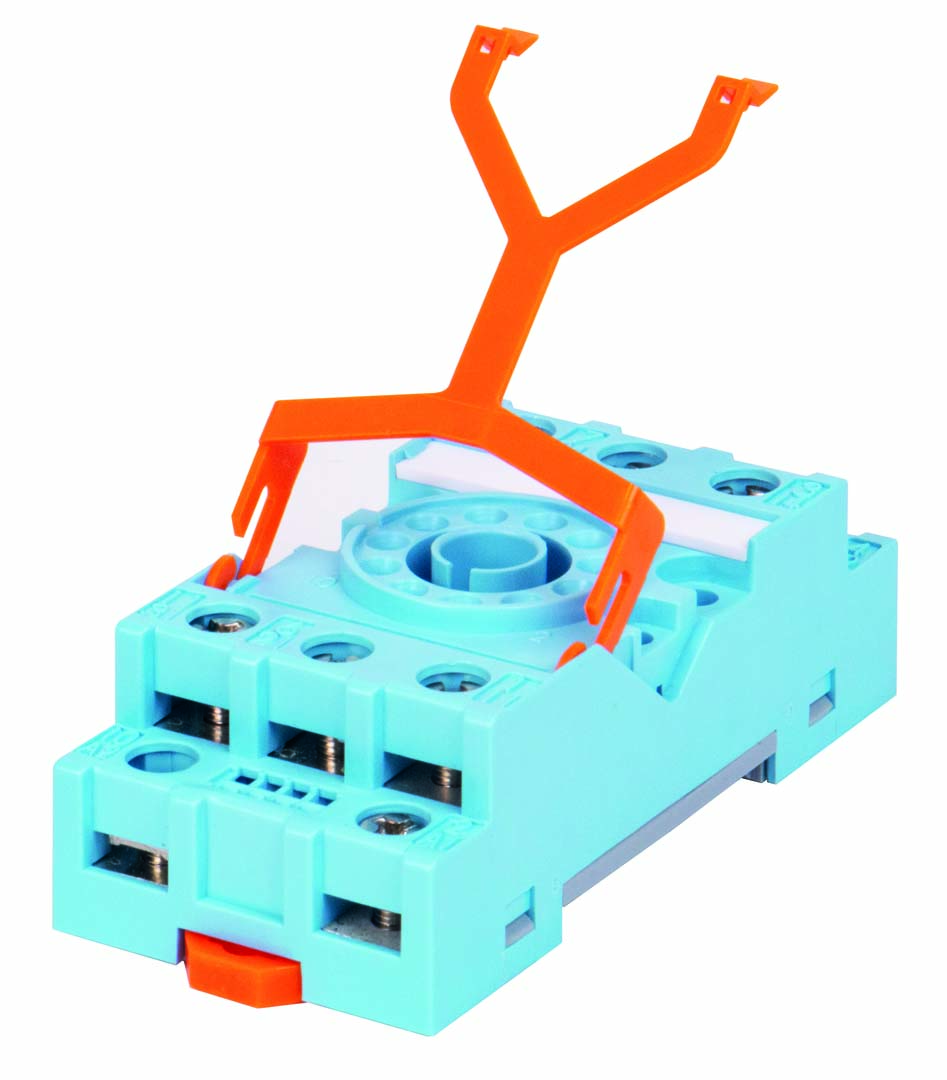

S3-S

- 10 A @ 250 V

S3-M

- 10 A @ 250 V
- Modulfach für steckbare R-Module

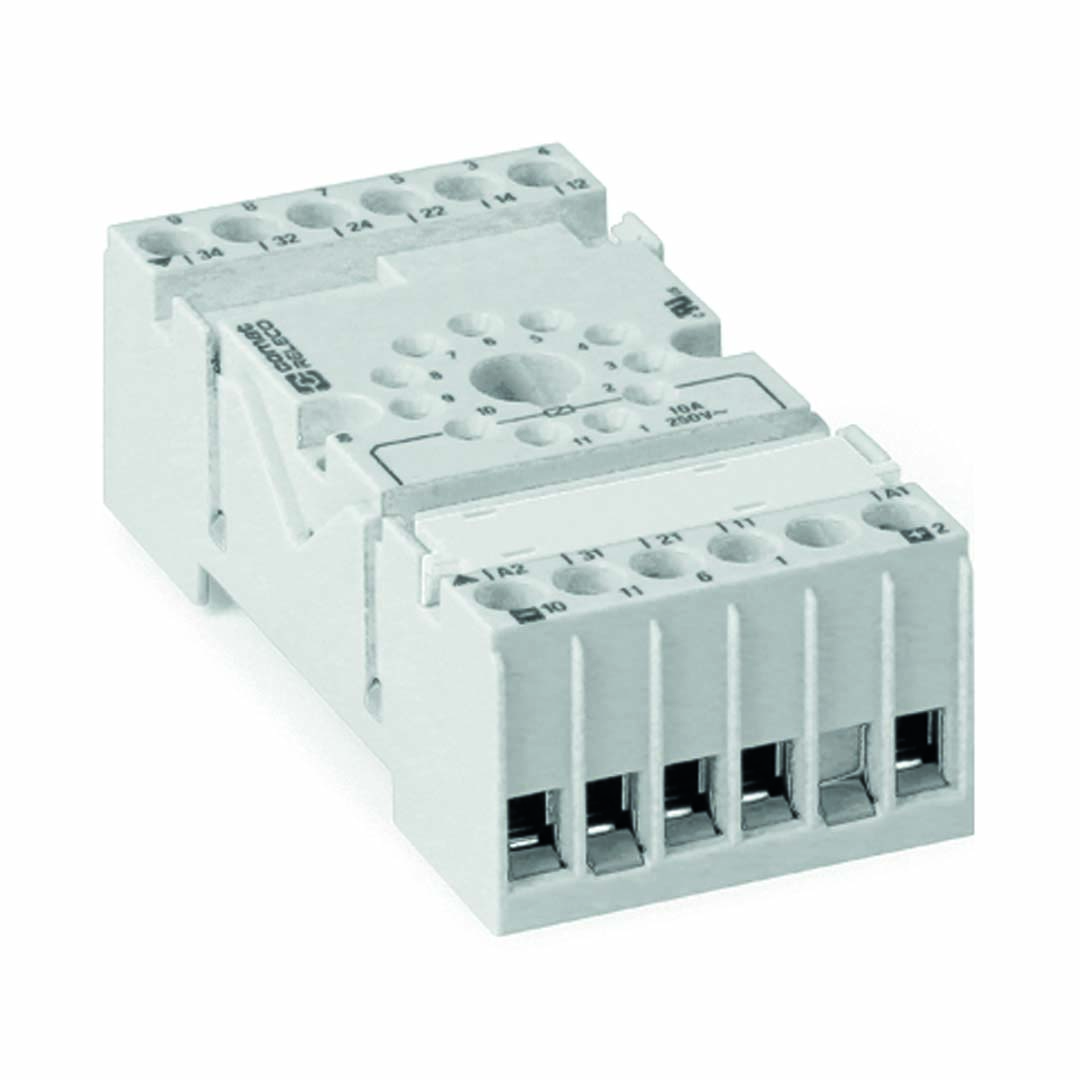

S3-MR

- 10 A @ 250 V
- Module compartment for pluggable R modules

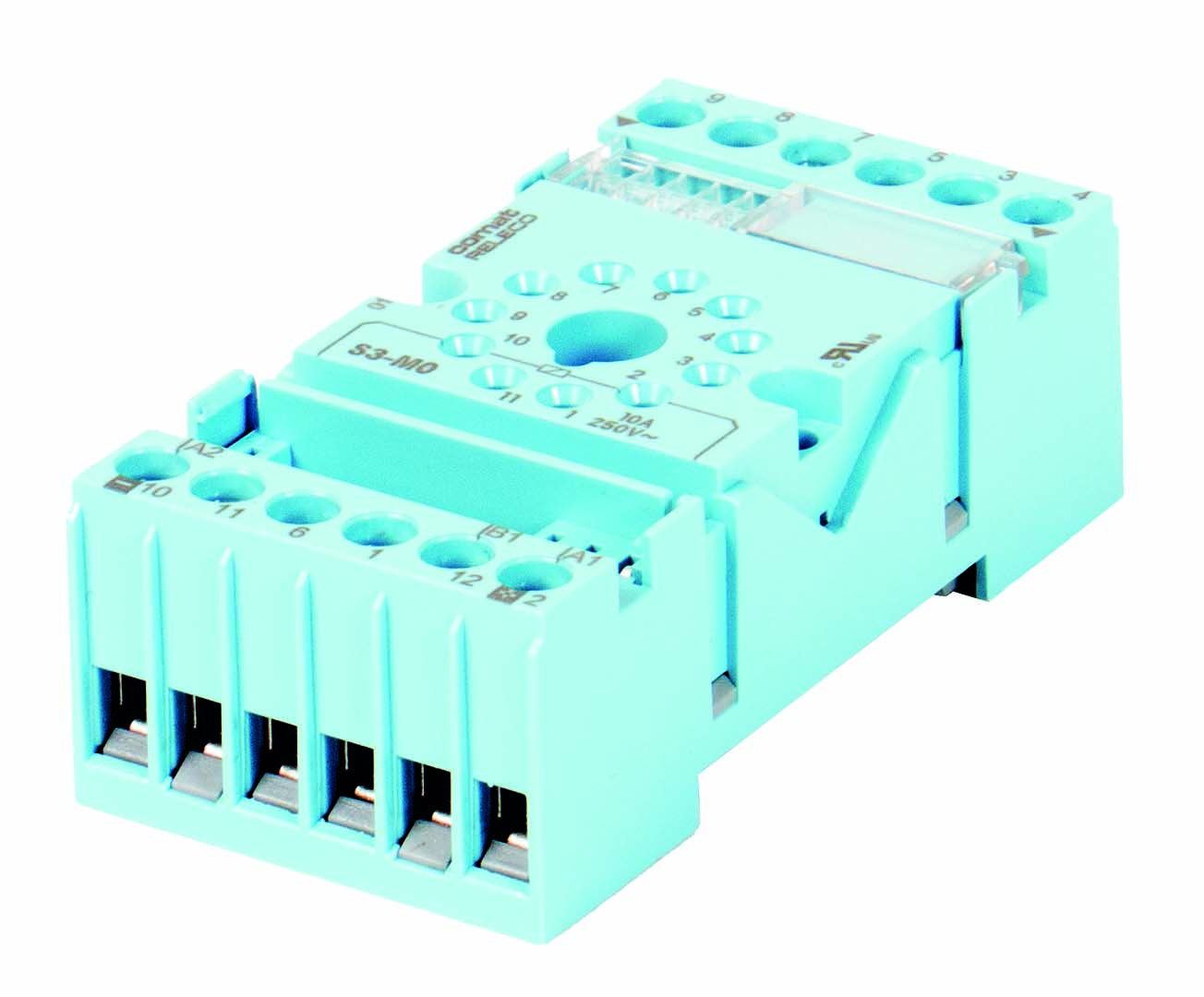

S3-M0

‘- 10 A @ 250 V
- Module compartment for time or monitoring modules

S3-M0R

‘- 10 A @ 250 V
- Module compartment for time or monitoring modules

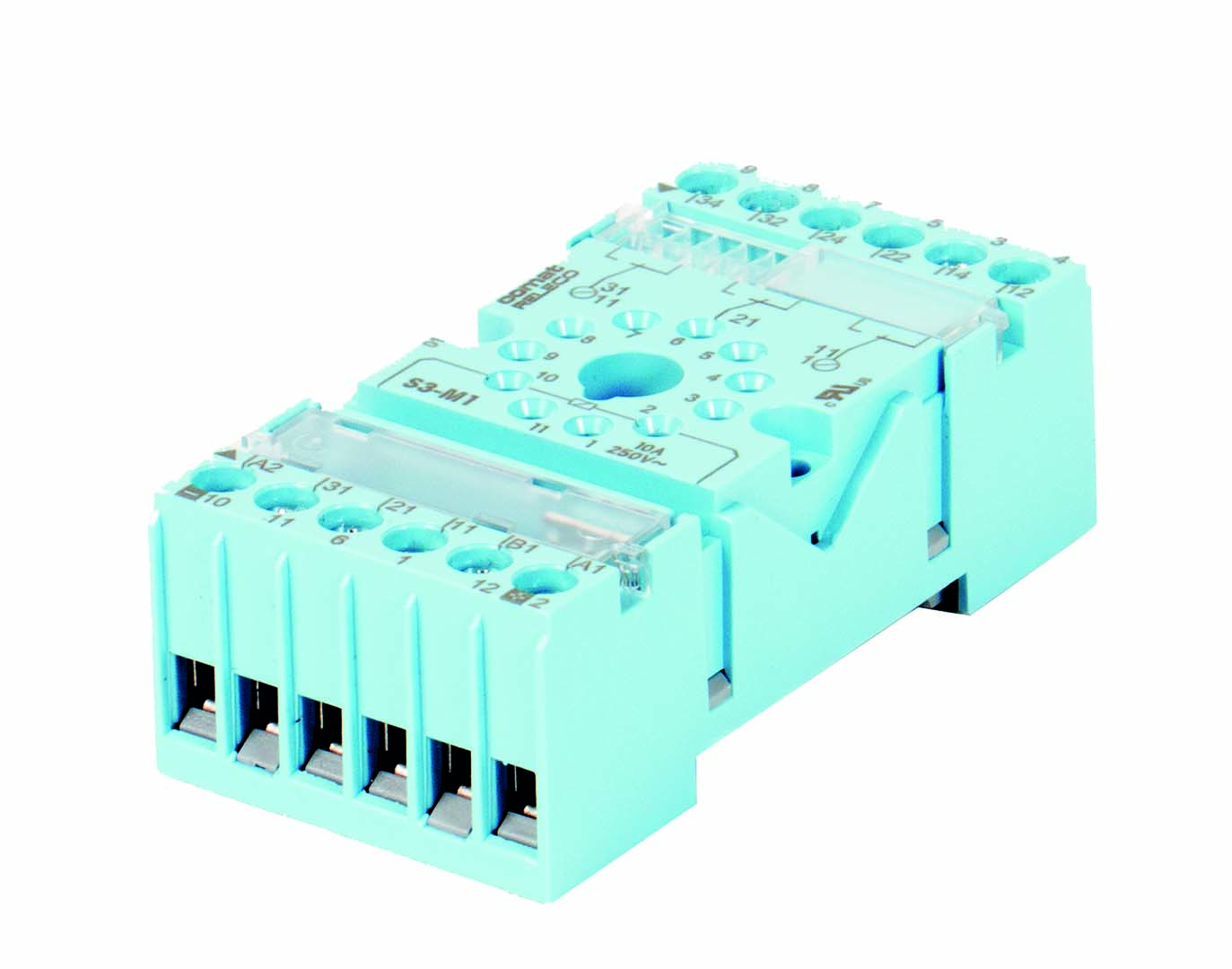

S3-M1

‘- 10 A @ 250 V
- Module compartment for time or monitoring modules

S3-M1R

‘- 10 A @ 250 V
- Module compartment for time or monitoring modules

General data
