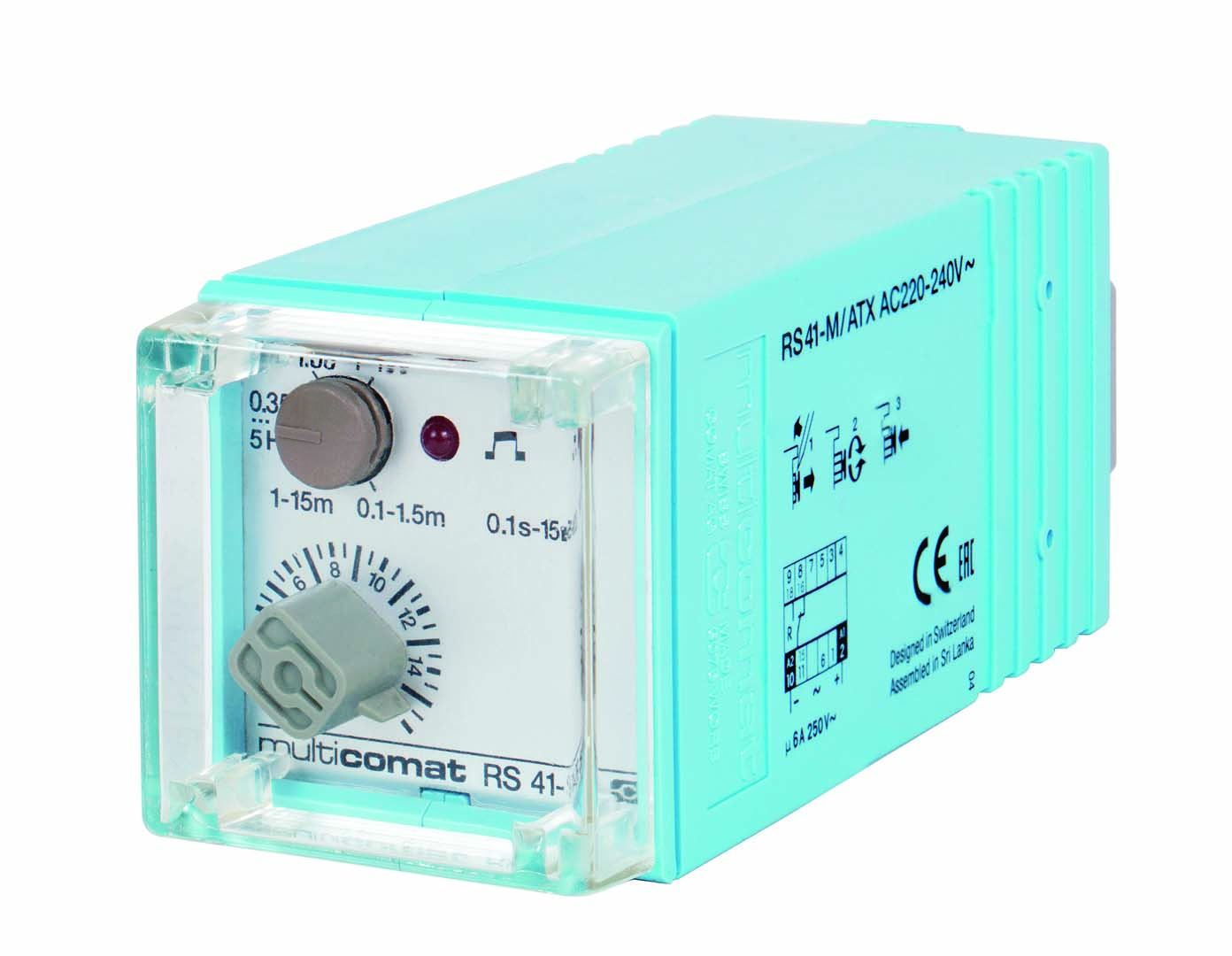

RS 41-M/ATX AC220-240V

- 1 pole
- Changeover contact
- Contact material AgNi
- 6 A @ 250 V AC
- Pluggable
- Time functions: E, W, B, A, K

ELDAS®: 528731700

Timer relay with 5 timer functions (E; A; K; W; I) and 5 time ranges, which cover the range from 100ms to 15min. Switching takes place on the front.A changeover contact with 6A/250V AC1 is available as an output.This device allows control by means of a potential-free contactThe function is programmed in the wiringHowever, the flashing function is switched on via the time selector switch (wiring as for W function)

Current type	AC (50 Hz)
Nominal voltage	220 V-240 V

Current consumption on input control B1 AC / DC	2 mA / 2 mA
Current consumption on supply A1-A2 AC / DC	10 mA / 10 mA
Frequency range	0; 45 … 63 Hz
Nominal voltage	220 … 240 V AC / DC
Operating voltage range	187 … 265 V AC / DC
Power consumption AC / DC	2.4 VA / 2.4 W
Threshold voltage on input control B1 AC / DC	8 V from terminal 4

Housing material	PC
Ingress Protection	IP 20
Operation temperature	-25 … 60 °C
Storage temperature (no ice)	-40 … 85 °C
Weight	75 g

Overvoltage category	III
Pollution degree	2
Rated test voltage control / main circuit	2 kV rms / 1 min
Rated test voltage open contact	1 kV rms / 1 min

Contact materials	AgNi
Inrush current	10 A, 10 ms
Mechanical endurance (cycles)	20 000 000
Minimum load	10 mA, 10 V
Number of contacts	1 CO
Rated current	6 A
Rated load AC-1	1500 VA
Rated voltage	250 V
