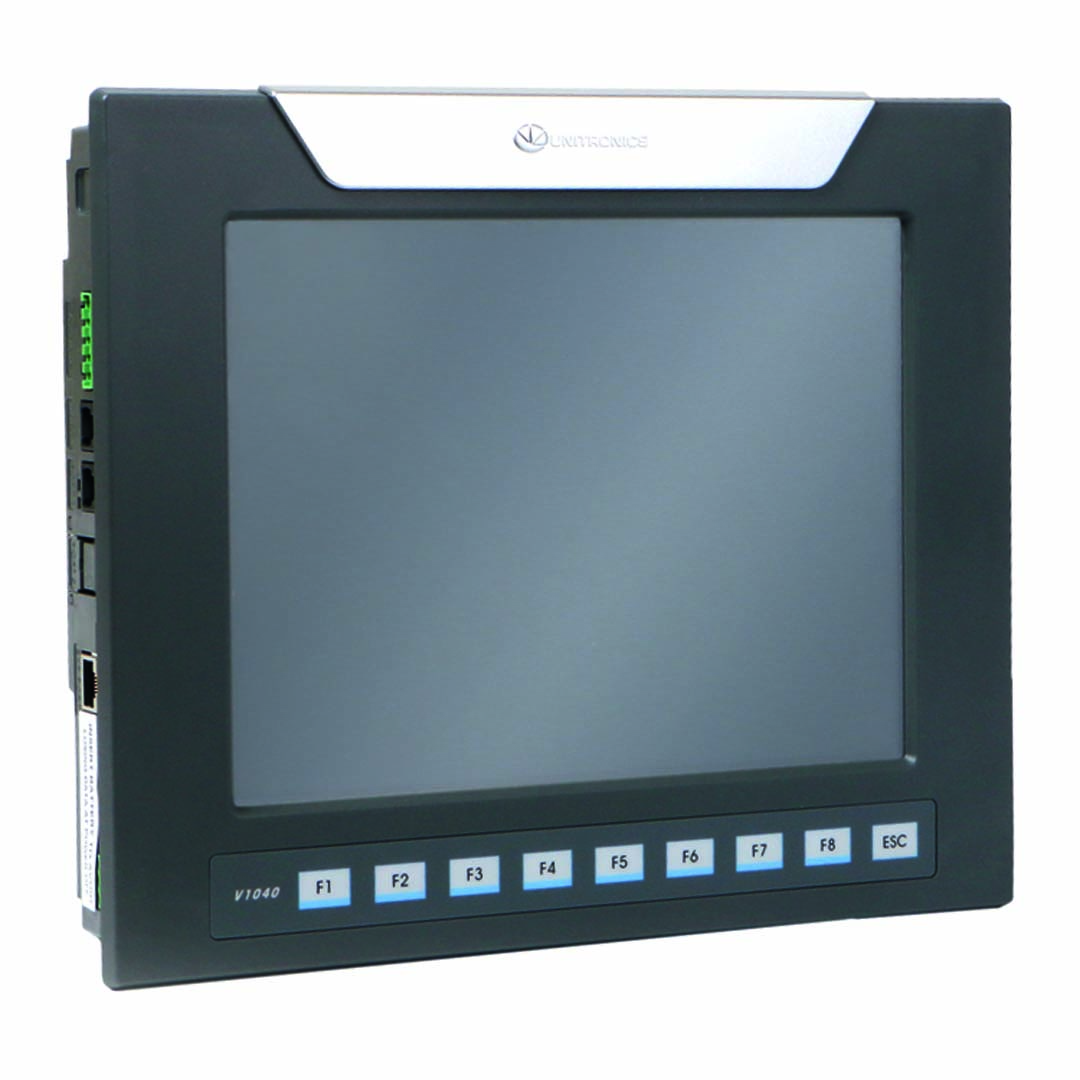

V1040-T20B

V1040-T20B
- Display: 10.4" touchscreen
- Power supply: 12/24 V DC
- Expansion to up to 1000 I/Os with snap-in I/Os
- I/O options such as digital, analogue, high speed, temperature and weight measurement
- Communication: RS232 / RS485, CAN
ELDAS®: 560824007

Current type DC
Nominal voltage 12 V-24 V

Back-up battery 7 years typical at 25 °C, battery back-up for RTC and system data, including variable data
Ingress Protection IP 20 / NEMA1 (case), IP 65 / NEMA4X (front Panel)
Mounting Panel with brackets
Operation temperature 0 ... 50 ºC / 32 ... 122 °F
Relative huminity, no condensation 5 ... 95 %
Storage temperature (no ice) -20 ... 60 ºC / -4 ... 140 °F
Weight 1.5 kg

Display 10.4” touchscreen, TFT, LCD, resistive, analog, 65 536 (16 bit) colors
Number of definable displays 1024
Number of keys 9
Resolution 800 x 600 pixels (SVGA)

Execution time 9 µs / Kb
Number of ladder code memory (virtual) 2000
Number of memory bits (coils) 8192
Number of memory integers (registers) 4096
Number of timers 384

Nominal voltage 24 V DC
Operating voltage range 20.4 ... 28.8 V DC

Approvals CE,cULus,UKCA,EAC
