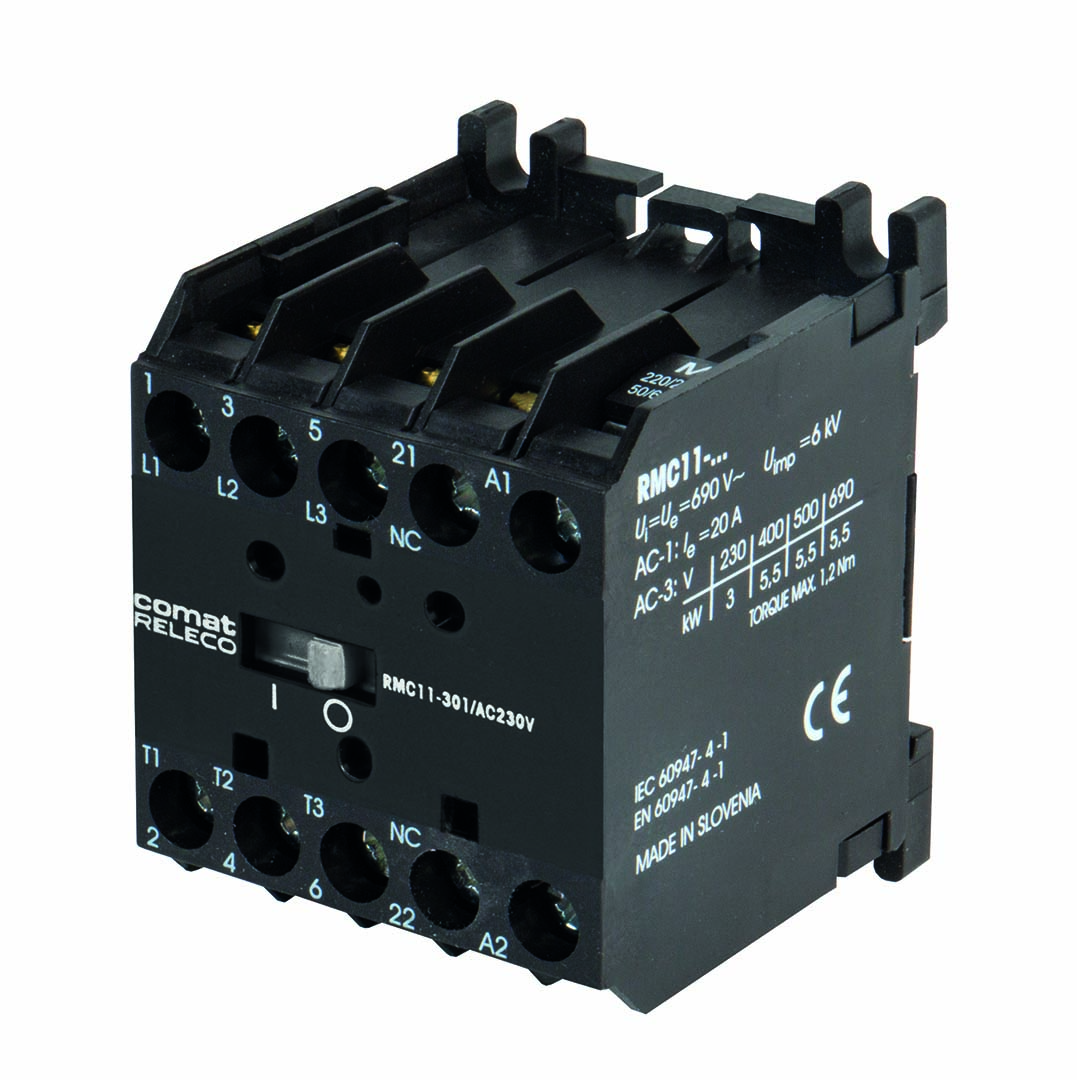

RMC11-310/DC24V

- 4 pole
- 4 NO contacts
- Contact material AgNi
- Max 11.3 A @ 400 V AC-3
ELDAS®: 507976250

Current type DC
Nominal voltage 24 V

Frequency range 50 / 60 Hz
Operating voltage range 0.85 ... 1.1 UN
Pick-up time 10 ... 15 ms
Pick-up voltage ≤ 0.85 UN
Power consumption AC / DC 8.1 VA / 4 W
Release time 6 ... 15 ms
Release voltage ≥ 0.2 UN AC / ≥ 0.1 UN DC

Ambient temperature operation close contact -20 ... 45 °C
Ambient temperature operation open contact -20 ... 60 °C
Housing material PA 66
Ingress Protection IP 20
Mounting DIN rail
Operation Altitude Max. 2 000 m
Relative huminity, no condensation 95 %
Storage temperature (no ice) -30 ... 80 °C
Weight AC: 170 g / DC: 215 g

Clearance of open contact 3.6
Overvoltage category III
Pollution degree 3
Rated impulse withstand voltage open contact 6 kV / 1 min
Rated insulation voltage 690 V

Contact materials AgNi
Electrical endurance at rated load AC-1 (cycles) 200 000
Mechanical endurance (cycles) 10 000 000
Rated current AC-1 20 A
Rated current AC-3 11.3 A, 400 V
Rated current DC-3 0.25 A, 110 VDC
Rated load AC-1 three-phase 400 V 13 kW
Rated load AC-3 three-phase 400 V 5.5 kW
Rated voltage 690 V AC
Recommended minimum contact load 50 mA, 17 V
Switching frequency at rated load AC-1 (cycles / h) ≤ 600
Switching frequency at rated load AC-3 (cycles / h) ≤ 600
Switching frequency at rated load DC-3 (cycles / h) ≤ 300

Approvals UKCA,CE,EAC,cULus
Standards IEC/EN 60947

Conductor cross section control / main circuit 2.5 mm2 / 2.5 mm2
Contact type control / main circuit Screw connection, M3.5 / M3.5
Nominal screw torque control / main circuit 1.2 Nm / 1.2 Nm
Screwdrive control / main circuit PZ2 / PZ2
Stripping Length control / main circuit 10 mm / 10 mm
Approvals
Documents "RMC11-310/DC24V"

Accessories

RMC-AUX02
- NO and/or NC contacts
- Contact material AgNi

RMC-AUX04
- NO and/or NC contacts
- Contact material AgNi

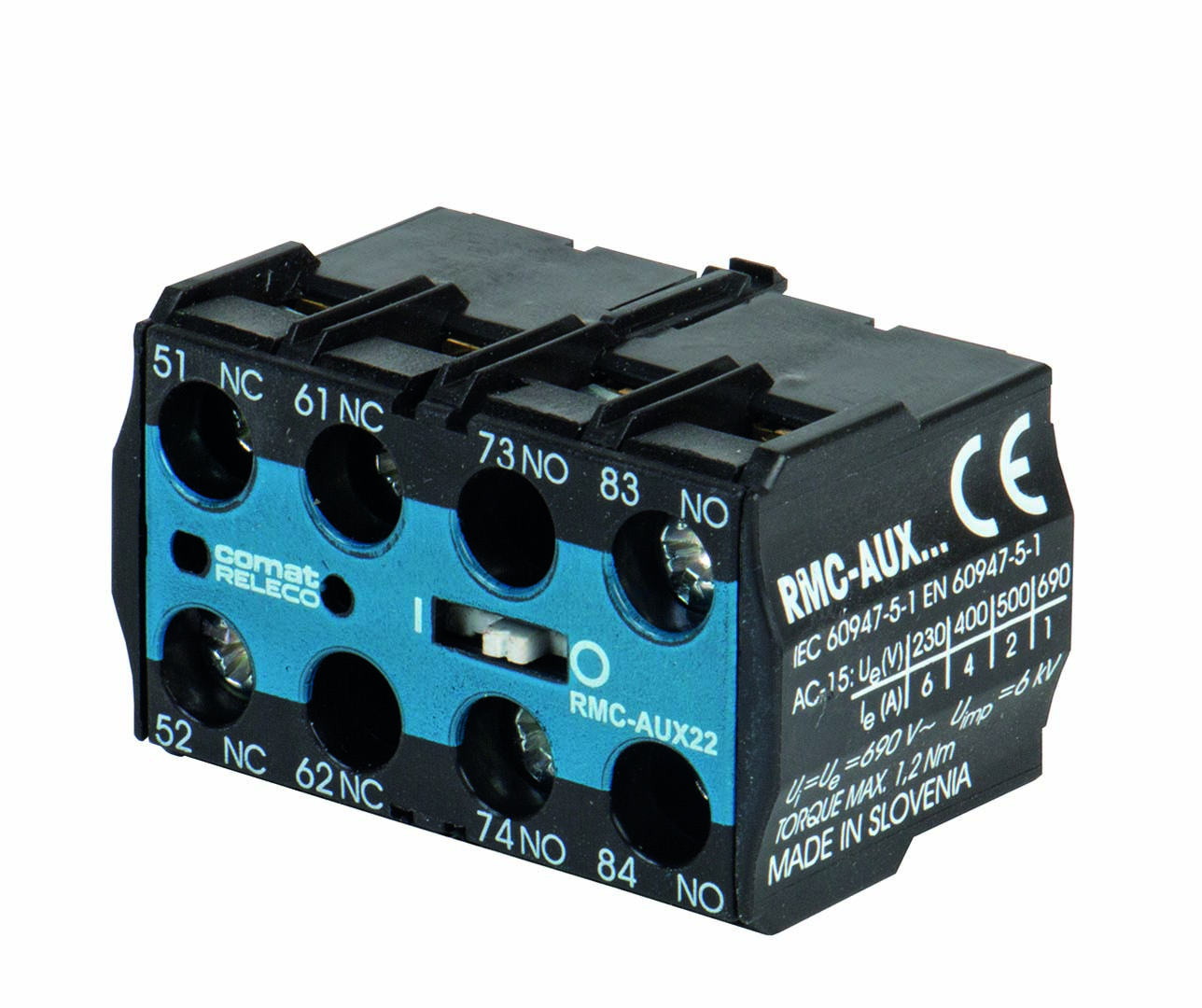

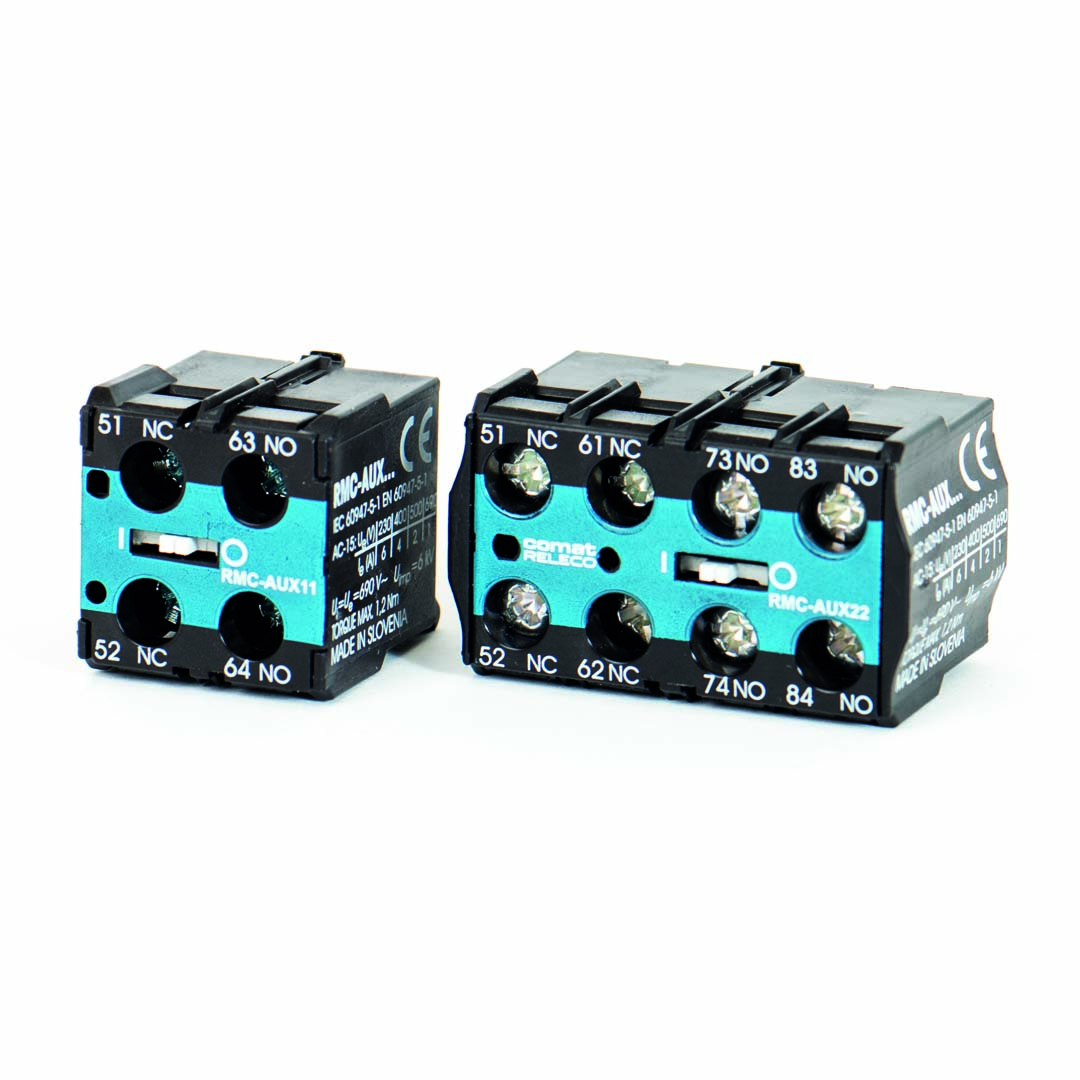

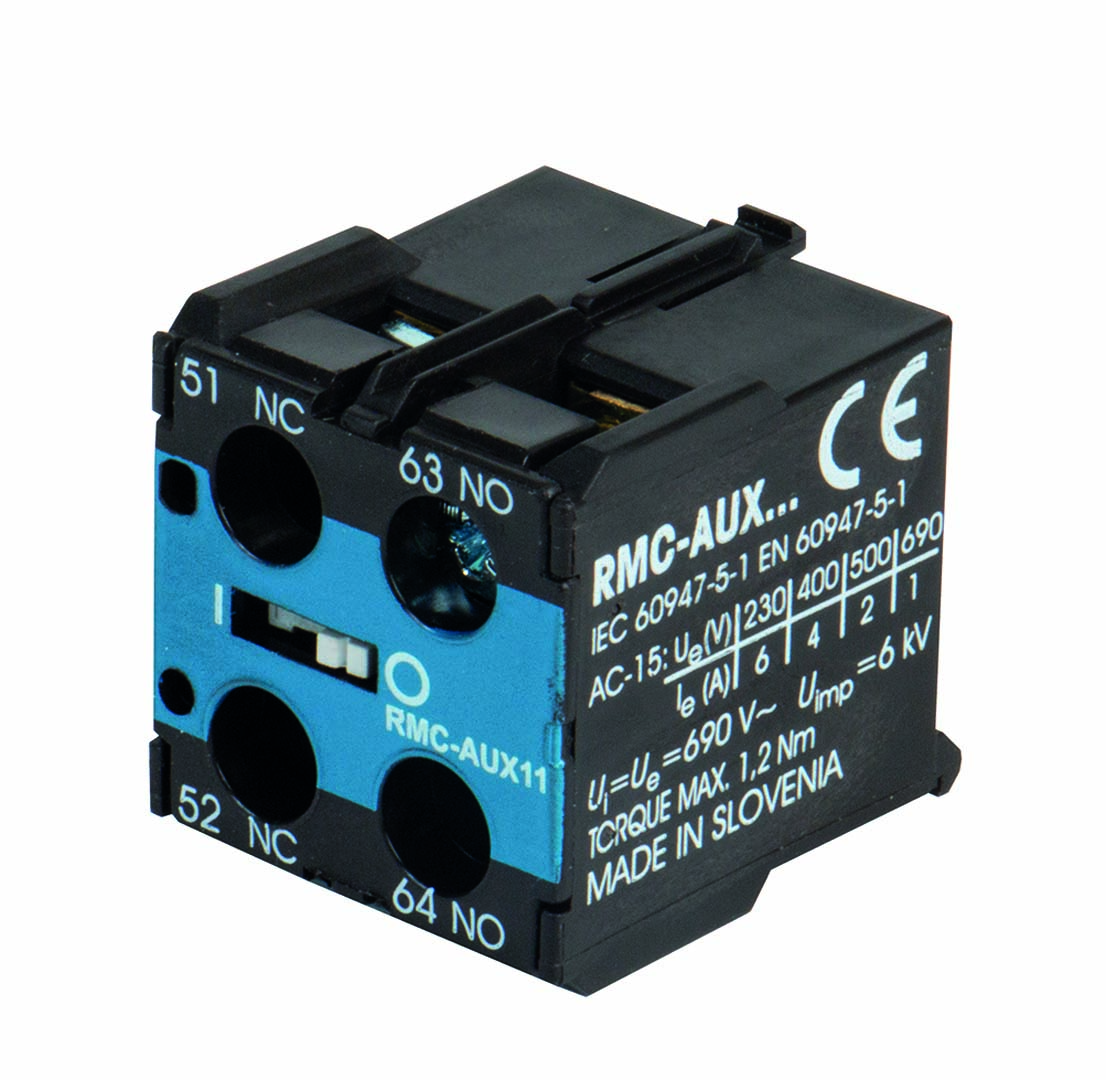

RMC-AUX11
- NO and/or NC contacts
- Contact material AgNi

RMC-AUX20
- NO and/or NC contacts
- Contact material AgNi

RMC-AUX22
- NO and/or NC contacts
- Contact material AgNi

RMC-AUX40
- NO and/or NC contacts
- Contact material AgNi

RMC-DI
for RMC contactors 6...250VDC

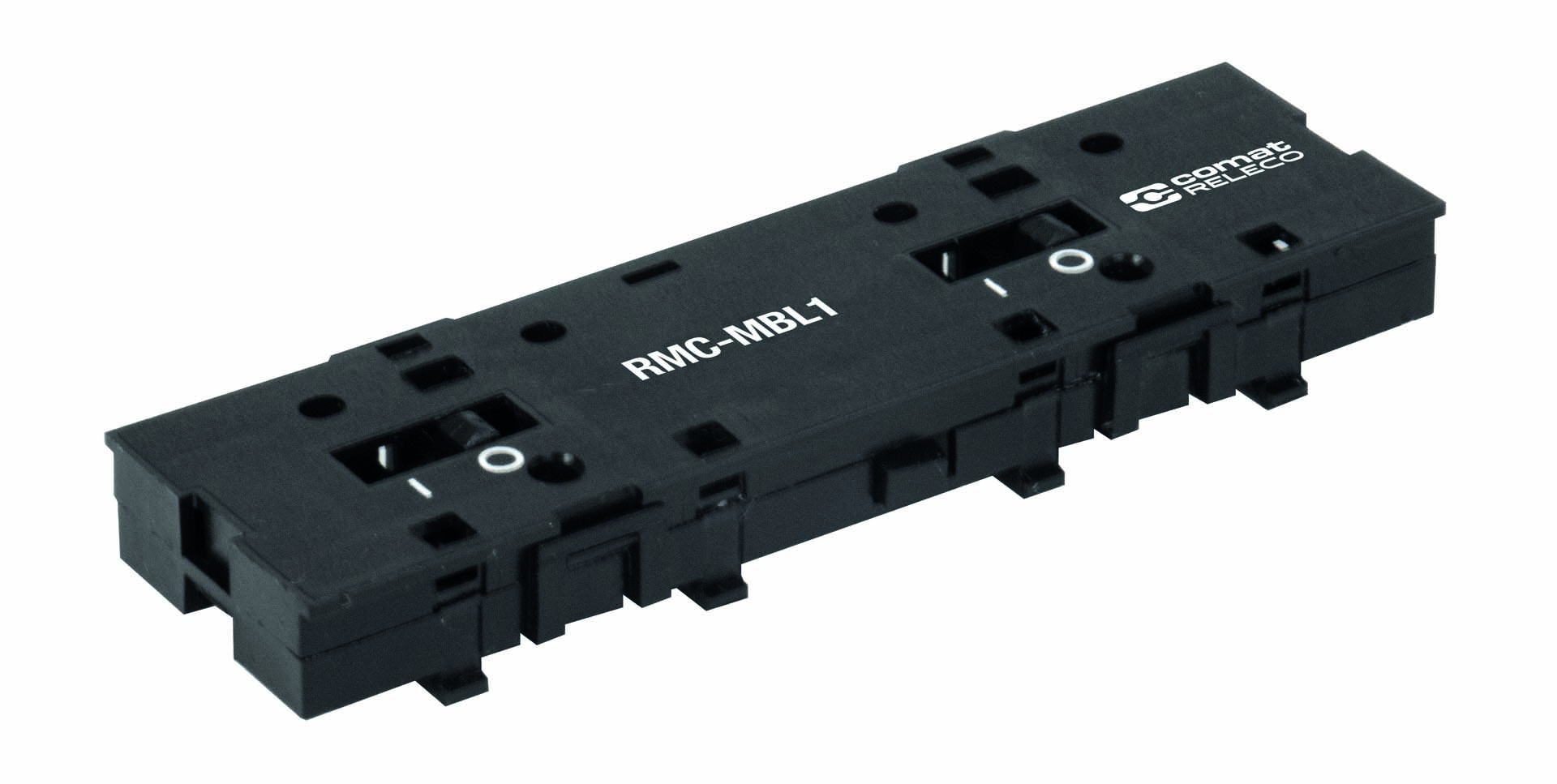

RMC-MBL
- Mechanical locking of 2 contactors

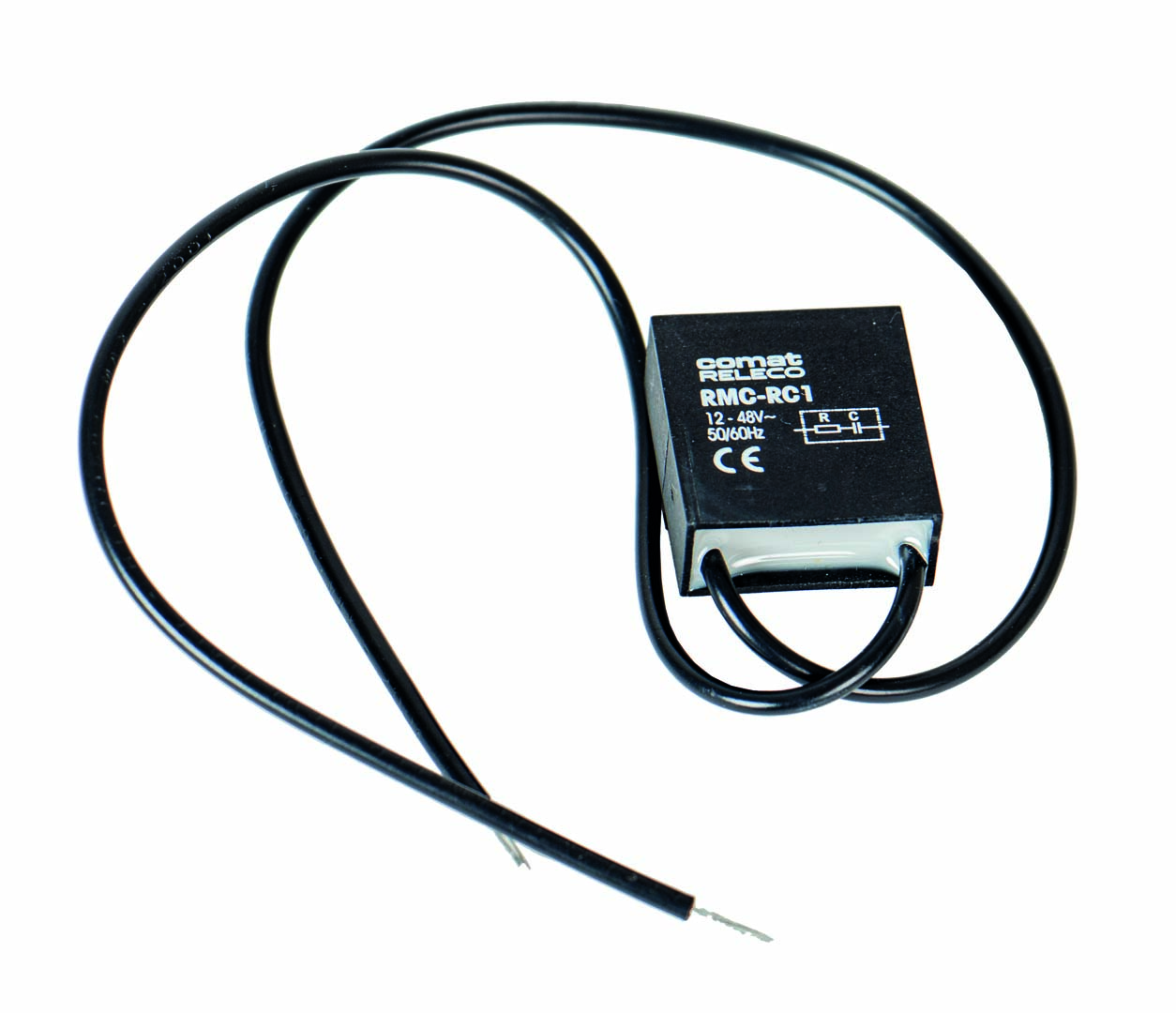

RMC-RC1
for RMC contactors 12...48VAC

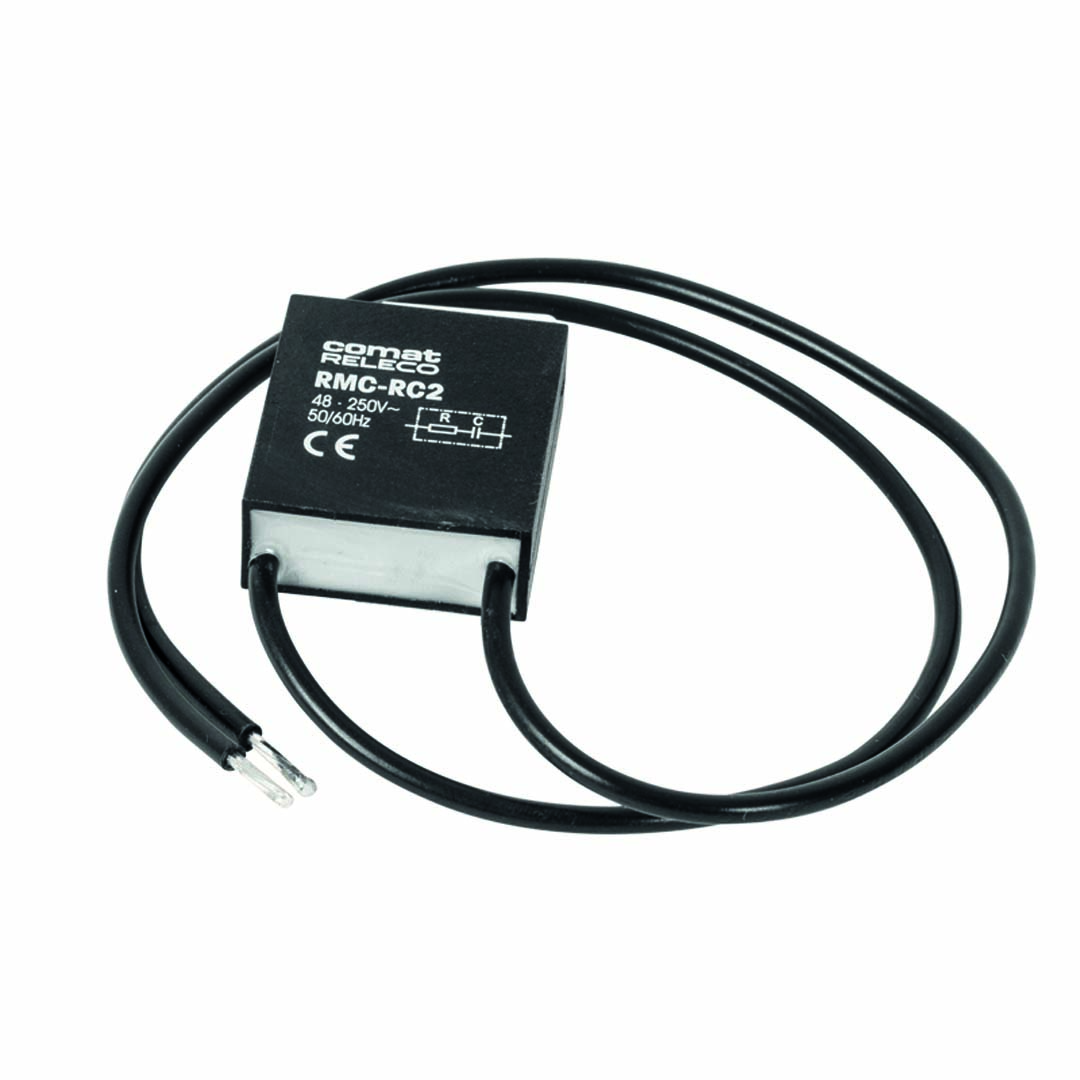

RMC-RC2
