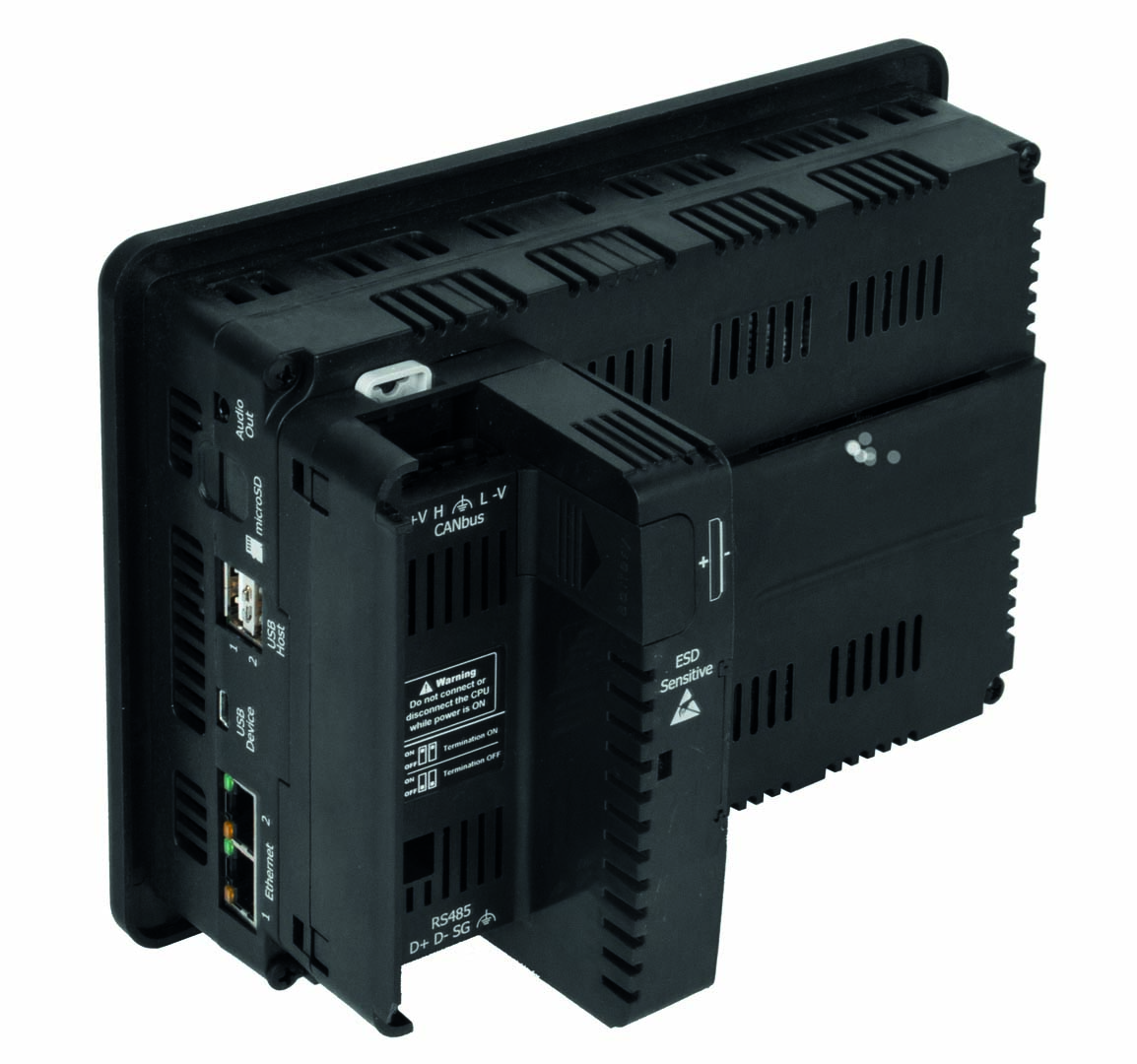

USP-104-M10
- Modular touch display: 10.4" multi-touch- compatible with CPU module USC-B10
ELDAS®:
| Current type | DC |
|---|---|
| Nominal voltage | 12 V-24 V |
| Ingress Protection | IP20 / NEMA1 (case), IP65 / IP66/NEMA4X (front panel) |
|---|---|
| Mounting | Panel with brackets |
| Operating altitude | 2000 m / 6562 ft |
| Operation temperature | -20 … 55 °C / -4 ... 131 °F |
| Relative huminity, no condensation | 5 ... 95 % |
| Storage temperature (no ice) | -30 … 70 °C / -22 ... 158 °F |
| Display | Touchscreen, TFT, LCD, resistive, analog, 65 536 (16 bit) colors |
|---|---|
| Resolution | 800 x 480 (QVGA) 7" (16:9), 800 x 600 (SVGA) 10.4" (4:3), 1366 x 768 15.6" (16:9) |
| Memory card | Micro SD-Card |
|---|
| Nominal voltage | 12 … 24 V DC |
|---|---|
| Operating voltage range | 10.2 … 28.8 V DC |
| Approvals | CE,cULus,UKCA,EAC |
|---|---|
| Standards | IEC 60068-2-27,IEC 60068-2-6 |
Approvals
Accessories
UAG-XK125
- Short-range adapter kit, 1.25 m cable (without power supply)- for panels with DIN rail structure, supports up to 8 Uni-I/O modules
UAG-XKP125
- Short-range adapter kit, 3 m cable (without power supply)- for panels with DIN rail structure, supports up to 8 Uni-I/O modules
UAG-XK300
- Short-range adapter kit with power supply, 1.25 m cable- for panels with DIN rail structure, supports up to 16 Uni-I/O modules
UAG-XKP300
- Short-range adapter kit with power supply, 3 m cable- for panels with DIN rail structure, supports up to 16 Uni-I/O modules
UAG-XKPL600
- Long-range local expansion adapter (power kit, 6 m) for Uni-I/O- with integrated 24 V supply kit, supports up to 16 Uni-I/O modules
UAG-XKPL1200
Long-range local expansion adapter (power kit, 12 m) for Uni-I/O- with integrated 24 V supply kit, supports up to 16 Uni-I/O modules
UAG-XKPL1500
- Long-range local expansion adapter (power kit, 15 m) for Uni-I/O- with integrated 24 V supply kit, supports up to 16 Uni-I/O modules
UAG-XKPL2000
- Long-range local expansion adapter (power kit, 20 m) for Uni-I/O- with integrated 24 V supply kit, supports up to 16 Uni-I/O modules
UAG-XKPL3000
- Long-range local expansion adapter (power kit, 30 m) for Uni-I/O- with integrated 24 V supply kit, supports up to 16 Uni-I/O modules
UAC-01RS2
CHF8.40*
- Uni-COM module with 1 × RS232 interface- adds RS232 connectivity to the UniStream CPU panel
UCR-ST-B5-EU
CHF8.40*
- 4G/LTE & WiFi router (B5 series) for UniStream, including digital I/O, RS interface & SIM slot
UCR-ST-B8-EU
CHF8.40*
- Dual SIM 4G/LTE & WiFi router (B8 series) with multiple Ethernet ports, I/O, RS232/RS485 & GPS
