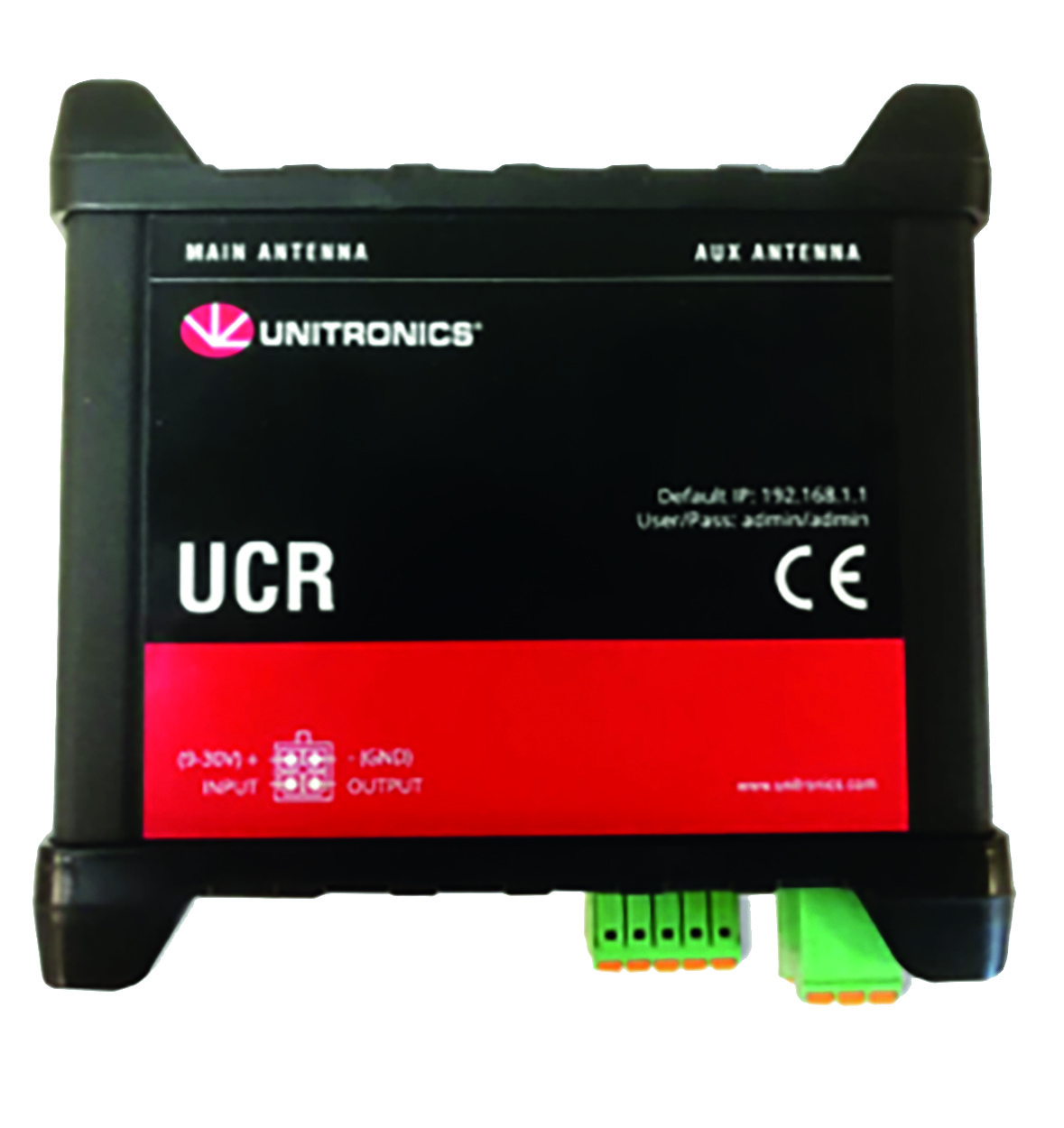

UCR-ST-B8-EU
- Dual SIM 4G/LTE & WiFi router (B8 series) with multiple Ethernet ports, I/O, RS232/RS485 & GPS
| Current type | DC |
|---|---|
| Nominal voltage | 24 V |
| Dimensions | 100mm x 110mm x 50mm |
|---|---|
| Mounting | DIN rail |
| Operation temperature | -40 ... 75 °C / -40 ... 167 °F |
| Storage temperature (no ice) | -40 ... 75 °C / -40 ... 167 °F |
| Number of analog inputs* | 1 |
|---|---|
| Number of digital inputs | 3 |
| Database size | 128 |
|---|---|
| Memory card | Micro SD-Card |
| Number of relay outputs | 1 |
|---|---|
| Number of transistor outputs | 2 |
| Frequency range | -4G (LTE-FDD): B1, B3, B7, B8, B20, B28A -4G (LTE-TDD): B38, B40, B41 -3G: B1, B8 -2G: B3, B8 |
|---|---|
| Operating voltage range | 9 ... 30 V DC, 4 pin DC connector |
| Power consumption DC | < 5 W |
| Approvals | UKCA,CE |
|---|
