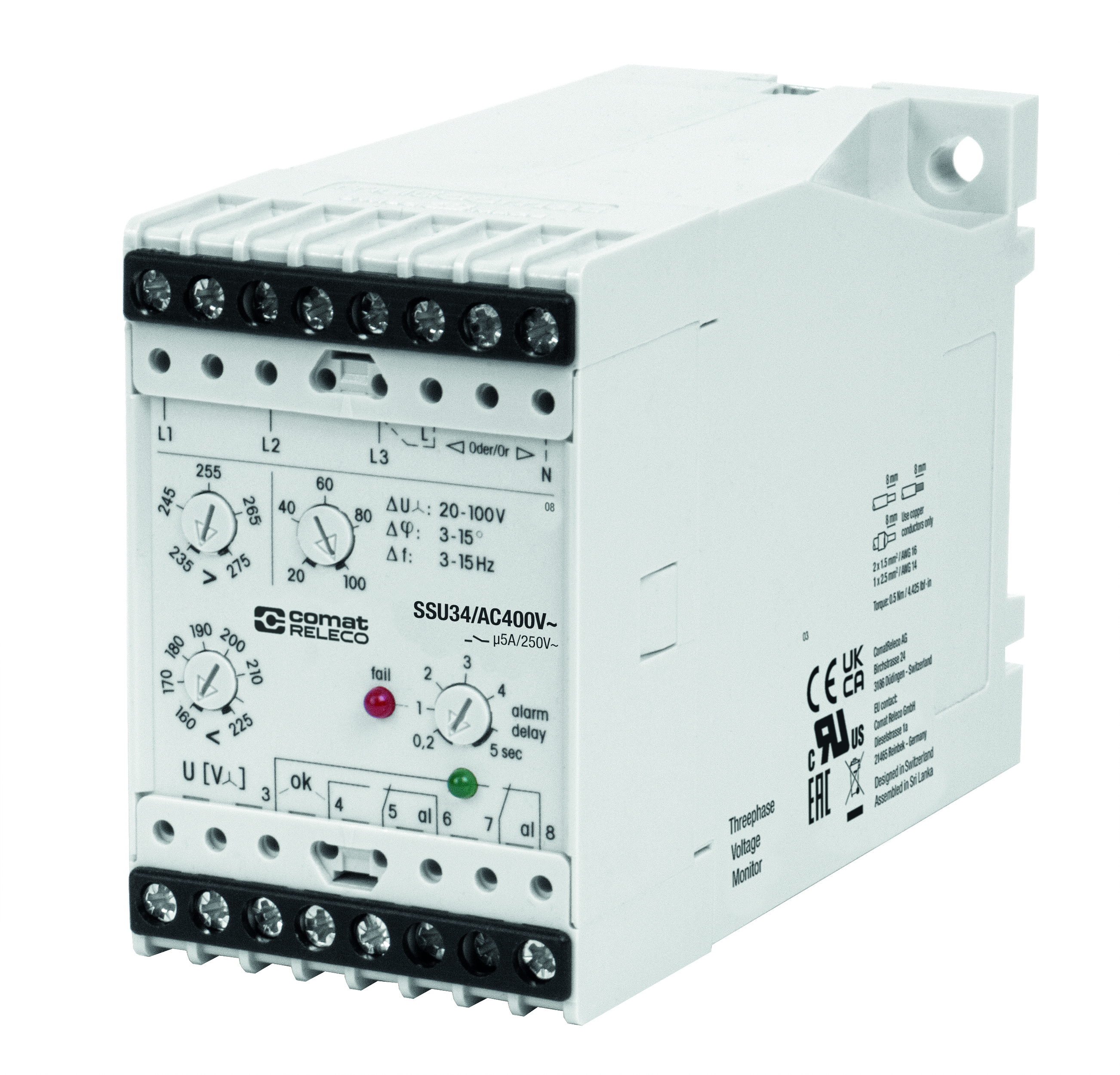

SSU34/AC400V 50HZ

SSU34/AC400V 50HZ

- 2 changeover contacts (Alarm & OK)
- Contact material AgNi
- Pluggable
- Monitoring: phase sequence, phase failure, undervoltage, overvoltage, frequency

ELDAS®: 543730650

Current type	AC (50 Hz)
Nominal voltage	400 V

Conductor cross section control / main circuit	2.5 mm², 2 x 1.5 mm²
Housing material	PC
Ingress Protection	IP 20
Nominal screw torque control / main circuit	0.5
Operation temperature	-10 … 60 °C
Storage temperature (no ice)	-40 … 85 °C
Weight	350 g

Overvoltage category	III
Pollution degree	2
Rated test voltage measuring / measuring circuit	3 kV rms / 1 min
Rated test voltage measuring circuit / main circuit	3 kV rms / 1 min
Rated test voltage open contact	1 kV rms / 1 min

Contact materials	AgNi
Mechanical endurance (cycles)	5 000 000
Minimum load	10 mA, 12 V
Number of contacts	2 CO
Rated current	5 A
Rated load AC-1	1250 VA
Rated voltage	250 V AC

AC voltage measurement range L-N / L-L	160 … 275 V / 280 … 480 V
Alarm delay	0.2 … 5 s
Frequency difference setting range L-N / L-L	3 ... 15 Hz
Measured parameters	U, ΔPhi, Δf
Monitoring functions	Under, over, phase failure, phase sequence
Number of voltage measurement inputs	4 (L1 / L2 / L3 / N)
Overvoltage setting range	235 … 275 V / 410 … 480 V
Phase angle difference setting range L-N / L-L	3 ... 15°
Rated AC voltage L-N / L-L	230 V / 400 V
Rated base frequency	50 Hz
Undervoltage setting range	160 … 225 V / 280 … 390 V
Voltage difference setting range L-N / L-L	20 … 100 V \| 35 … 173 V

Frequency range	50 Hz
Nominal voltage	400 V AC
Operating voltage range	240 … 495 V
Power consumption AC / DC	< 5 VA / -

Approvals	UKCA,CE,EAC,cURus
Standards	IEC/EN 60947
