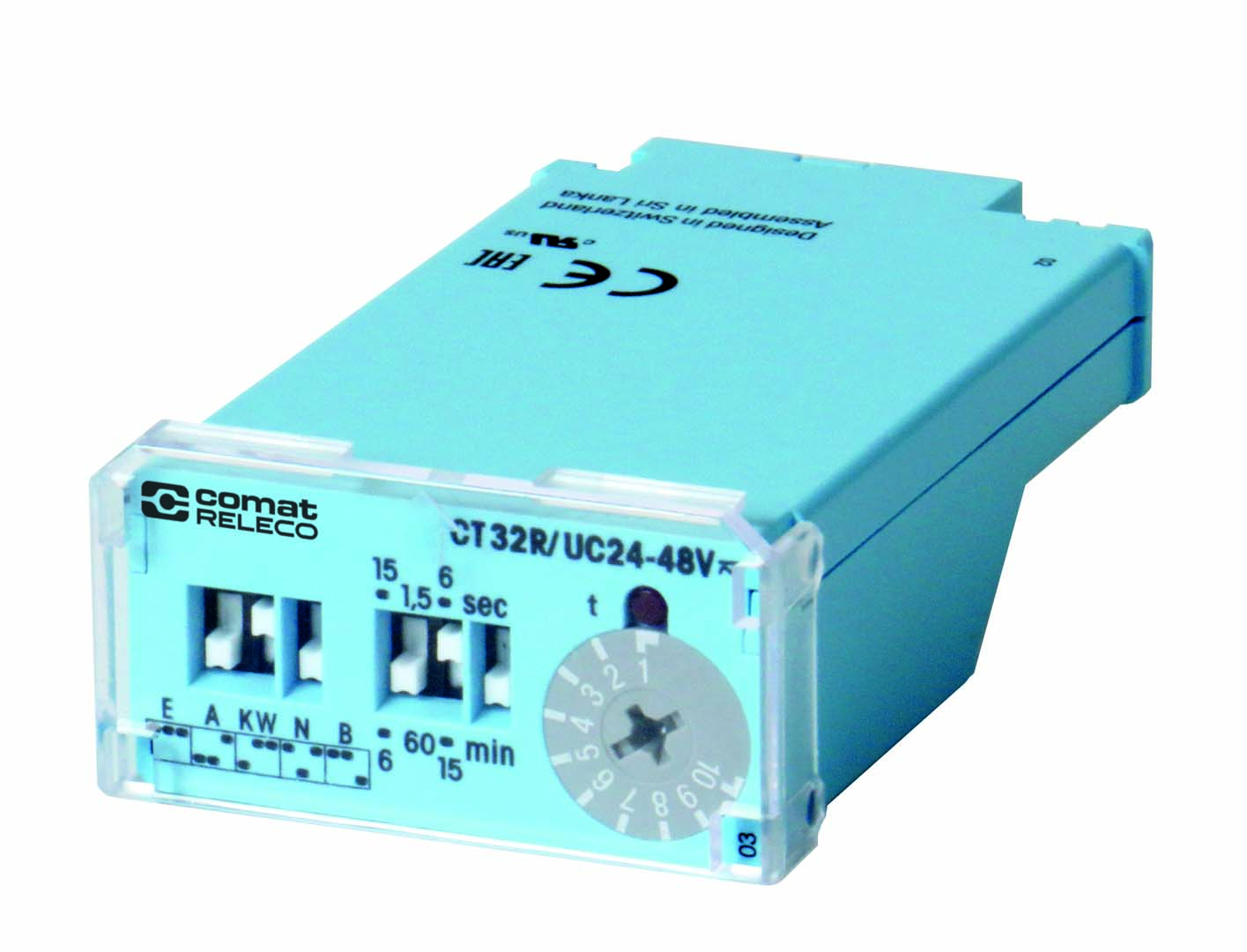

CT32R/DC110V

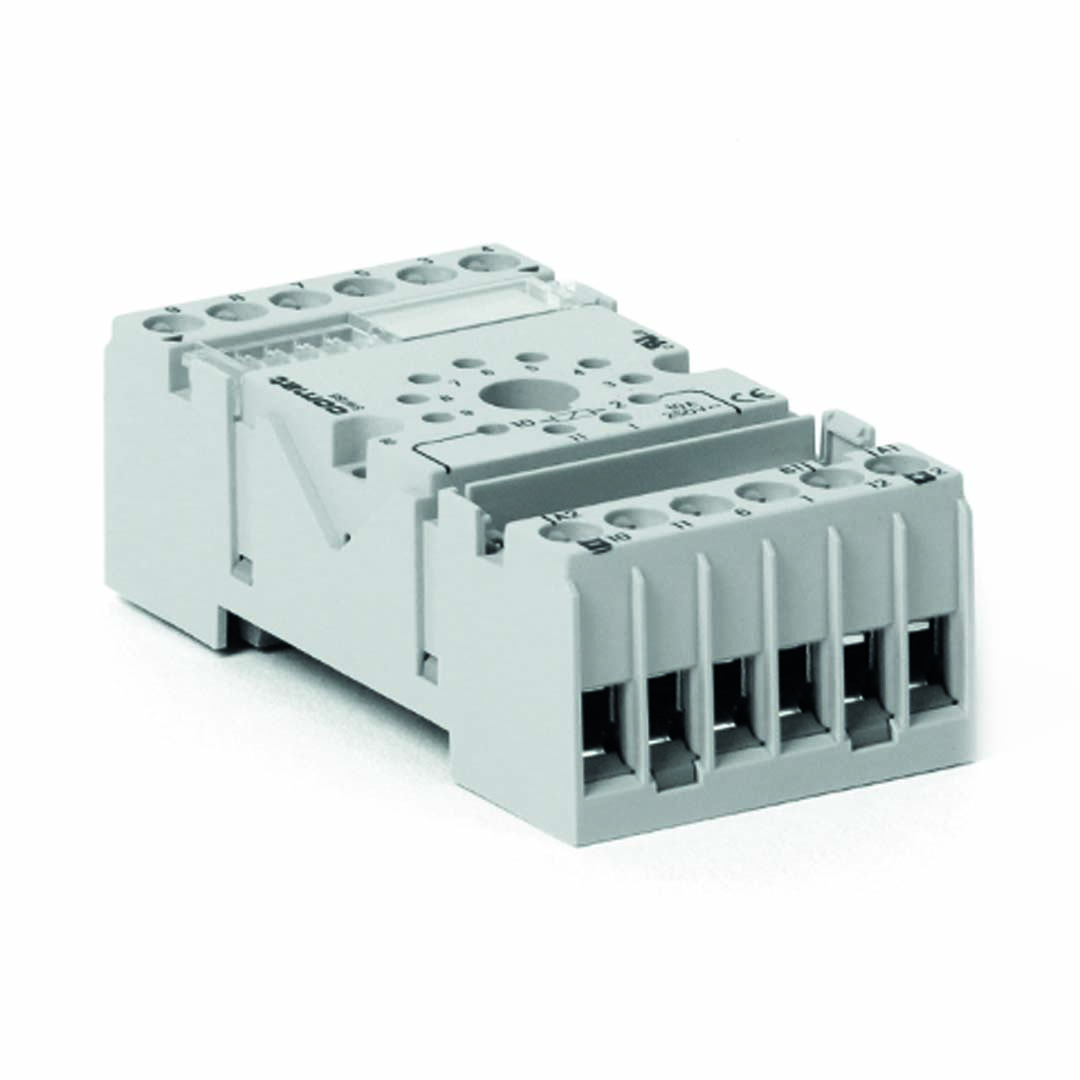

‘- pluggable in base
- Time functions: E, A, N, K, B1, W, B
- Time range 0.15 s - 60 min

Current type	DC
Nominal voltage	110 V

Current consumption on supply A1-A2 AC / DC	- / 11 mA \| - / 3 mA
Frequency range	0; 40 … 60 Hz \| DC
Nominal voltage	24 … 48 V AC/DC \| 110 V DC
Operating voltage range	19 … 60 V AC/DC \| 77 ... 138 V DC
Power consumption AC / DC	0.3 VA / 0.3 W \| - / 0.3 W
Threshold voltage on input control B1 AC / DC	9 V / 9 V \| - / 60 V

Timing range	0.15 s … 1.5 s / 0.6 s … 6 s / 1.5 s … 15 s / 6 s … 60 s / 0.15 min … 1.5 min / 0.6 min … 6 min / 1.5 min … 15 min / 6 min … 60 min
Timing scale	0.15 s … 60 min
