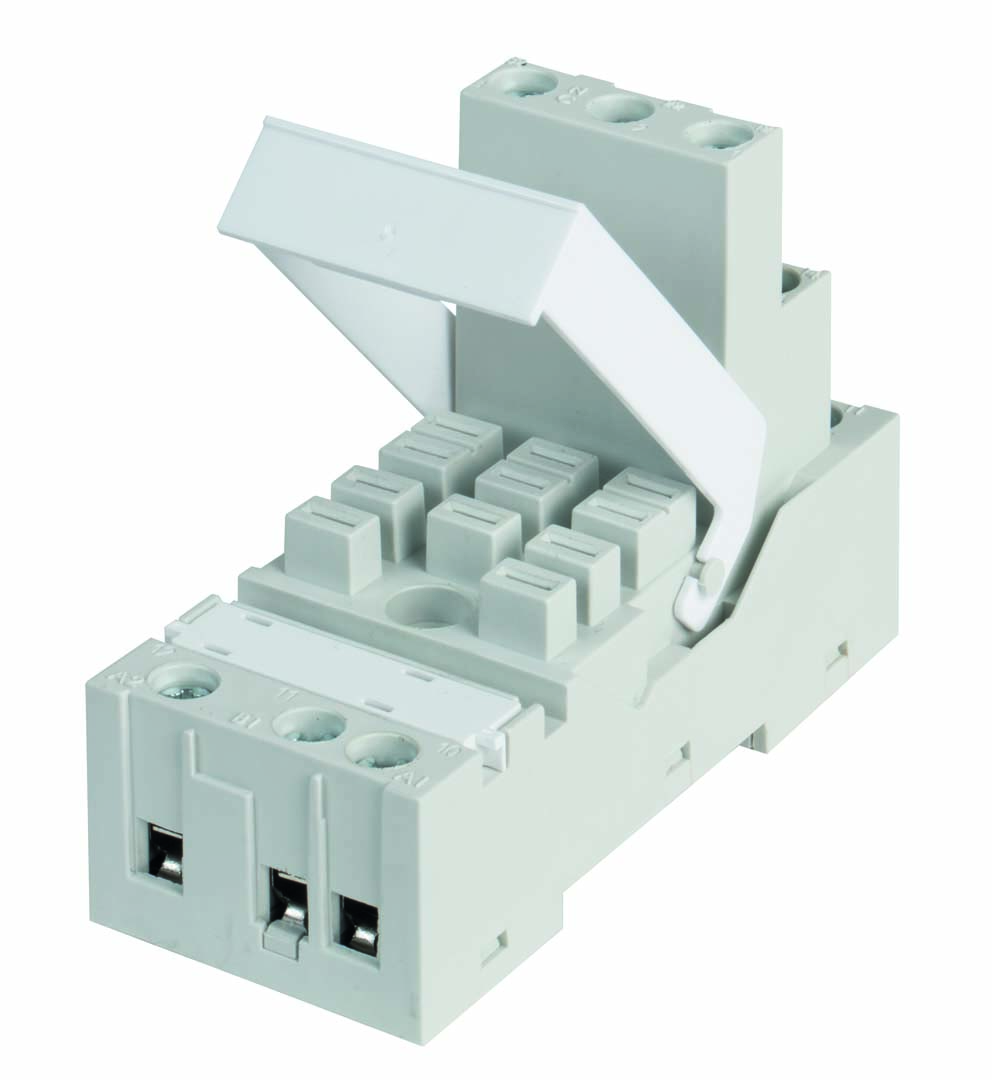

S5-MR
- 16 A @ 400 V
- Mounting on DIN rail or mounting plate
- Mounting on DIN rail or mounting plate
ELDAS®:
7.63001E+12
| - All terminals / DIN rail | 4 kV rms /1 min |
|---|---|
| - Multi wire (un-crimped) | 1 x 6 mm2 / AWG 10, 2 x 2.5 mm2 / AWG 16 |
| - Single wire | 1 x 6 mm2 / AWG 10, 2 x 2.5 mm2 / AWG 14 |
| - Terminal / terminal | 4 kV rms /1 min |
| Housing material | PA |
| Mounting | TH35 (EN 60715) or back panel mounting |
| Nominal screw torque | 0.8 Nm |
| Operation temperature | -40 … 70 °C |
| Rated load | 16 A / 400 V |
| Screw Dimension | M3.5 Pozi slot |
| Storage temperature (no ice) | -40 … 80 °C |
| Weight | 92 g |
| Approvals | CE,UKCA,Railway |
|---|---|
| Railway | EN 45545-2,EN 50155 |
| Standards | EN 60664-1 |
Approvals
3D-models "S5-MR"

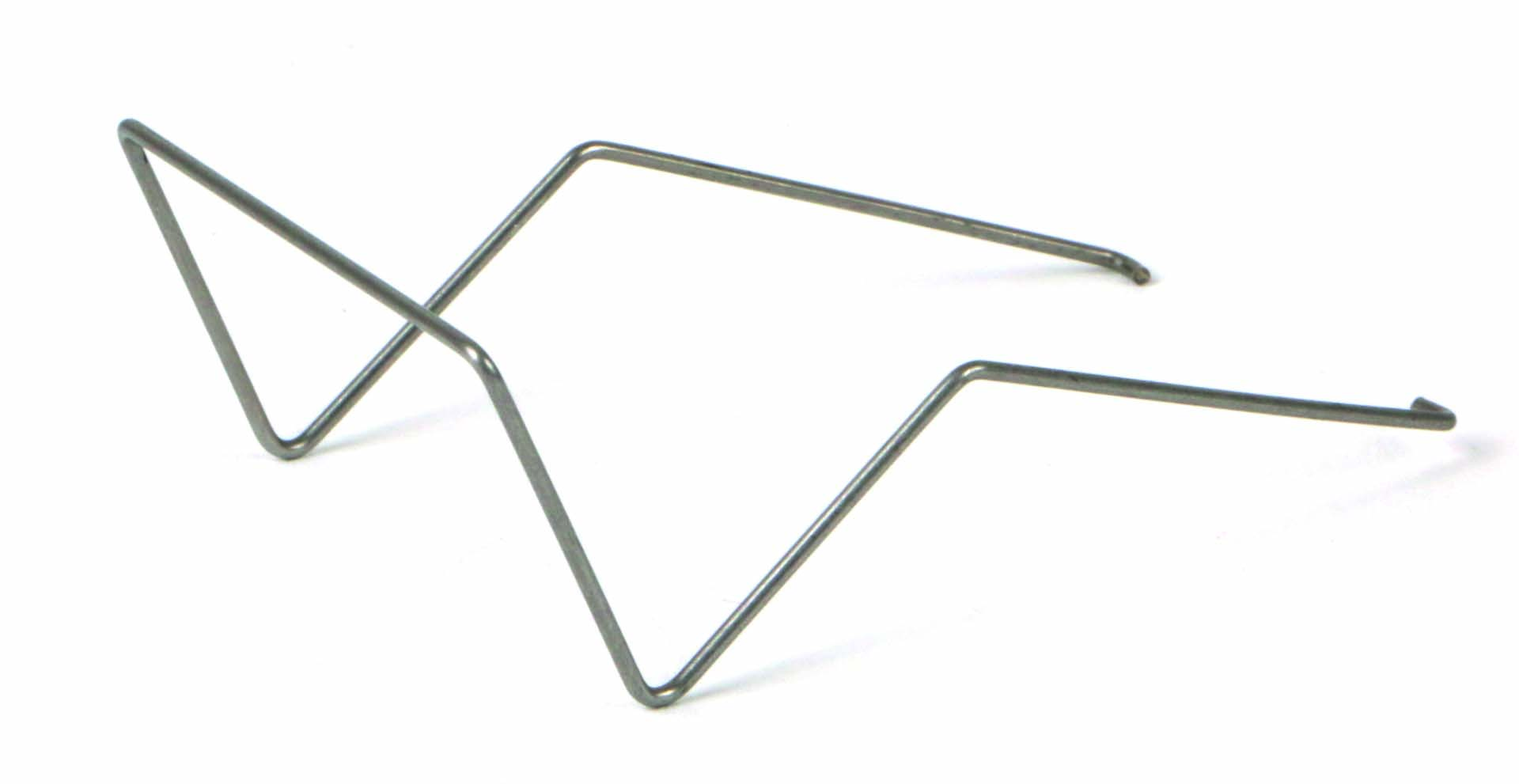

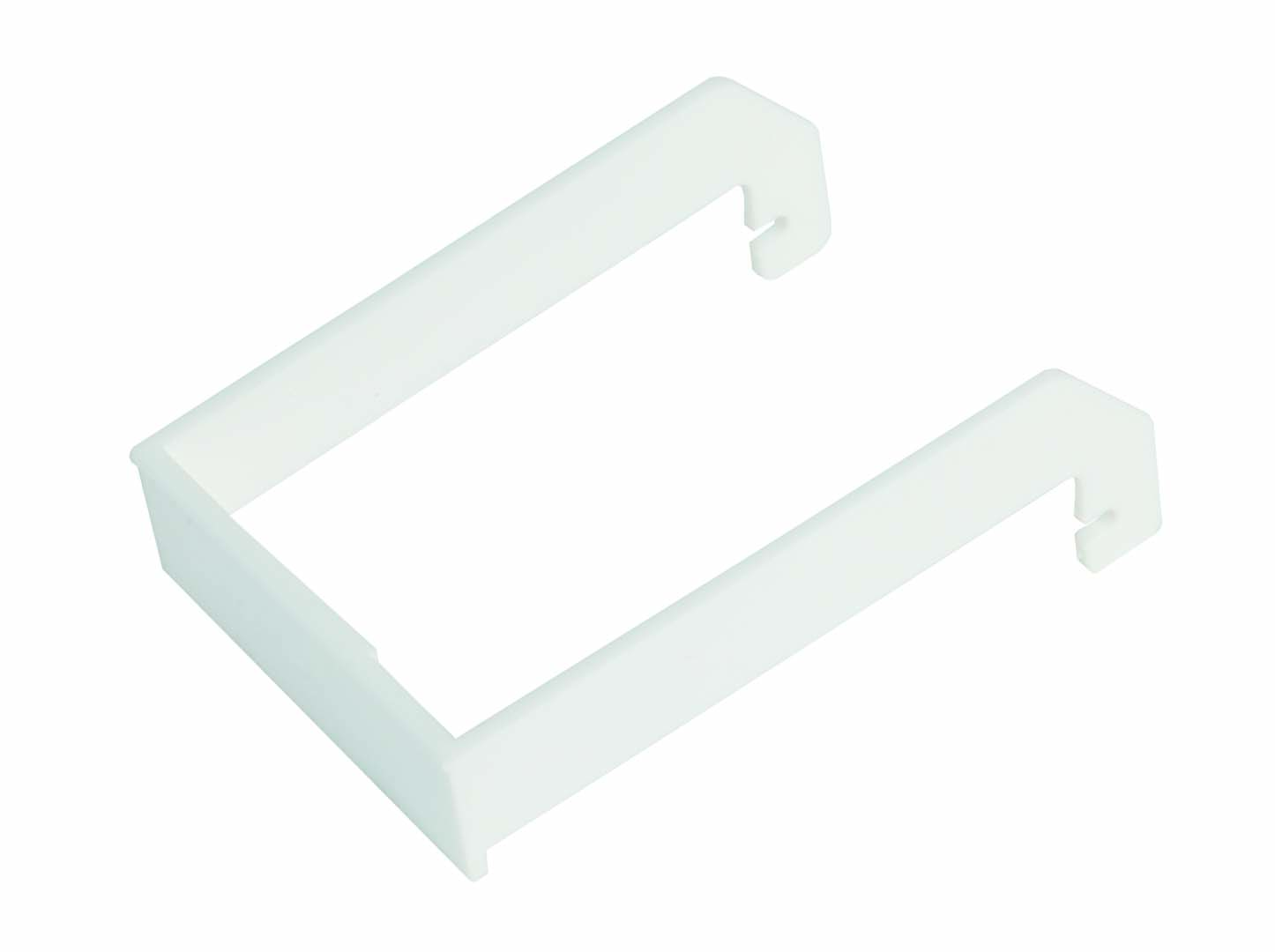

Accessories
