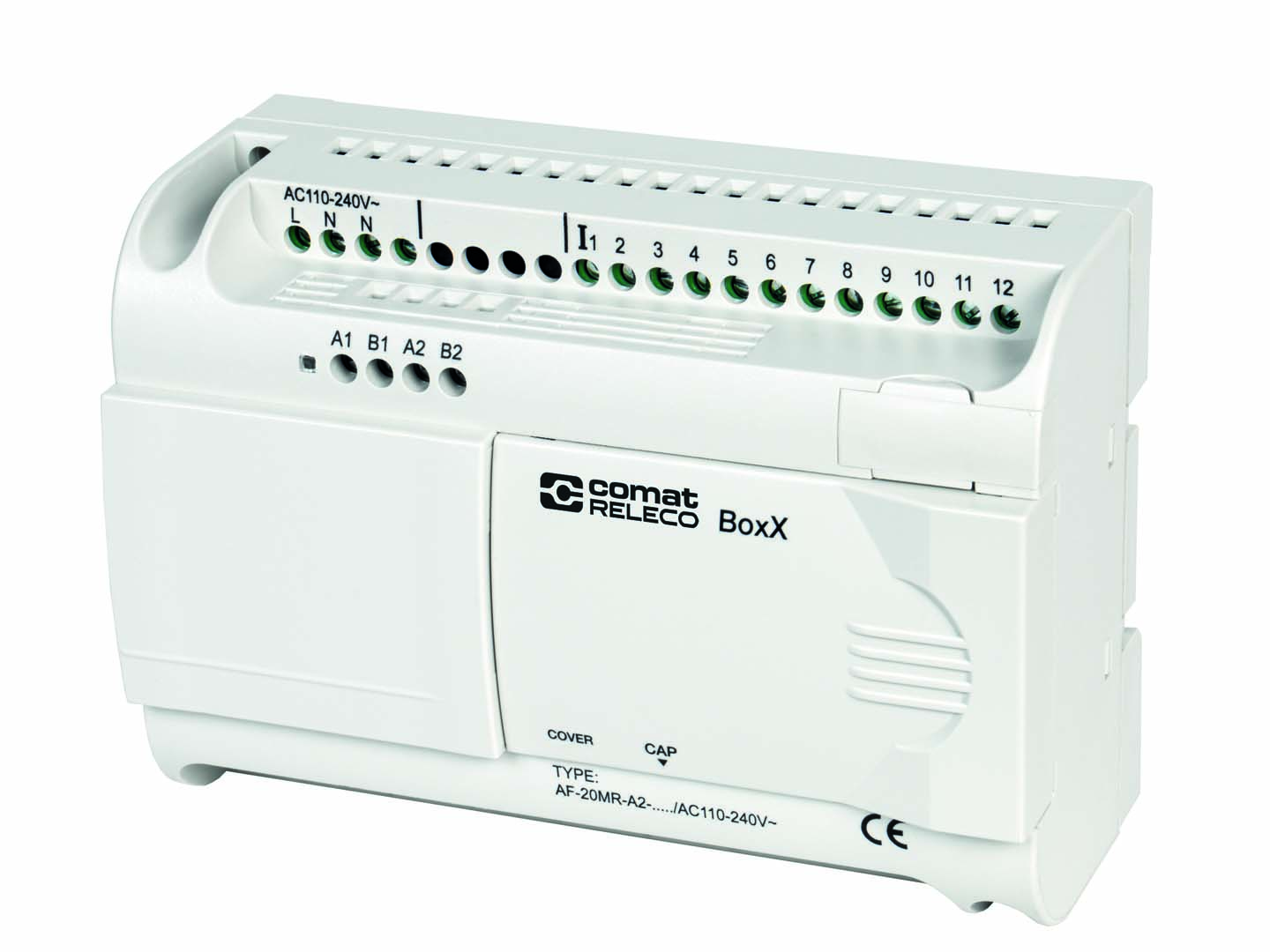

AF-20MR-A2-CAP/AC110-240V
BoxX2 without display
ELDAS®:
560820230
| Approvals | CE |
|---|
| Current type | AC (50 Hz) |
|---|---|
| Nominal voltage | 110 V-240 V |
| Baud rate | 9 600 bps / 19 200 bps |
|---|---|
| Interface | support 2 channel with RS485 and 1 channel with program interfaces |
| Protocol | Self-defined protocol / MODBUS RTU protocol (only read) |
| Housing material | ABS |
|---|---|
| Ingress Protection | IP 20 |
| Mounting | DIN rail or Wall (M3) |
| Operation temperature | -20 … 70 °C |
| Relative huminity, no condensation | 5 ... 95 % |
| Storage temperature (no ice) | -40 … 70 °C |
| Weight | 348 g |
| Delay time | 50 |
|---|---|
| Nominal voltage digital inputs | 80 … 240 V AC |
| Number of digital or analog inputs | 12 |
| Induced load | 2 |
|---|---|
| Programming language | Function block diagram (FBD) |
| Resistor load / Lamp load | 10 |
| Storage capacity | Program 64 k / 127 function block |
| Digital output | 25 000 switch cycles |
|---|---|
| Number of relay outputs | 8 |
| Output type | Relay |
| Rated current | 10 A |
| Rated voltage | 250 V AC |
| Type of terminal | NO |
| Nominal voltage | 100 … 240 V AC |
|---|---|
| Operating voltage range | 85 … 260 V AC |
| Power consumption AC | 10 VA |
| Approvals | UKCA,CE |
|---|---|
| Standards | IEC/EN 61000-3-2,IEC/EN 61000-3-3,IEC/EN 55032,IEC/EN 55035 |
| Conductor cross section control / main circuit | 1 x 2.5 mm2 2 x 1.5 mm2 |
|---|---|
| Contact type control / main circuit | Screw connection |
| Max. wire count control / main circuit | 2 |
| Nominal screw torque control / main circuit | 0.5 Nm / 0.5 Nm |
| Screwdrive control / main circuit | Screwdriver with a spade tip of 3 mm |
Approvals
3D-models "AF-20MR-A2-CAP/AC110-240V"
Tools "AF-20MR-A2-CAP/AC110-240V"
BoxX: Quick II up to V6.1.25
AF-x0MR-A-XX (old)
- Software: Quick II up to V6.1.25
- Cable: AF-D232 / AF-DUSB
- Display: AF-LCD
BoxX2: Quick II V6.1.26
AF-x0MR-A2-XX (new)
- Software: Quick II V6.1.26
- Cable: AF-DUSB2
- Display: AF-HMI
