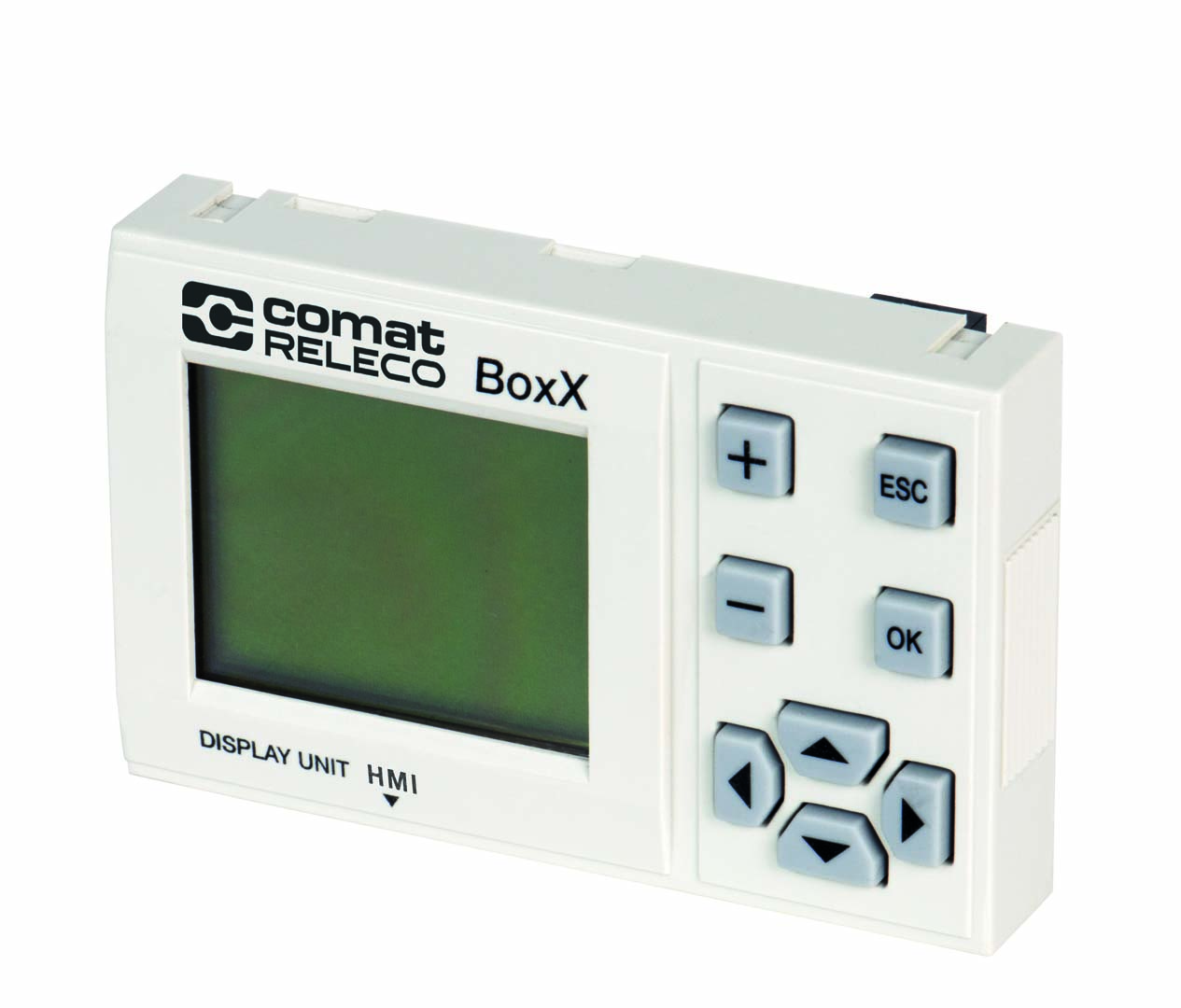

AF-HMI
Display for BoxX2
ELDAS®:
560820910
| Dimensions | 45 x 71 x 16 mm |
|---|---|
| Housing material | ABS |
| Ingress Protection | IP 20 |
| Mounting | Pluggable on AF-10 and AF-20 |
| Operation temperature | -20 … 70 °C |
| Relative huminity, no condensation | 5 ... 95 % |
| Storage temperature (no ice) | -40 … 70 °C |
| Weight | 38 g |
| Display | Removable LCD display |
|---|---|
| Number of keys | 8 |
| Approvals | UKCA,CE |
|---|
Approvals
Documents "AF-HMI"
Tools "AF-HMI"
BoxX: Quick II bis V6.1.25
AF-x0MR-A-XX (alt)
- Software: Quick II bis V6.1.25
- Kabel: AF-D232 / AF-DUSB
- Display: AF-LCD
BoxX2: Quick II V6.1.26
AF-x0MR-A2-XX (neu)
- Software: Quick II V6.1.26
- Kabel: AF-DUSB2
- Display: AF-HMI
