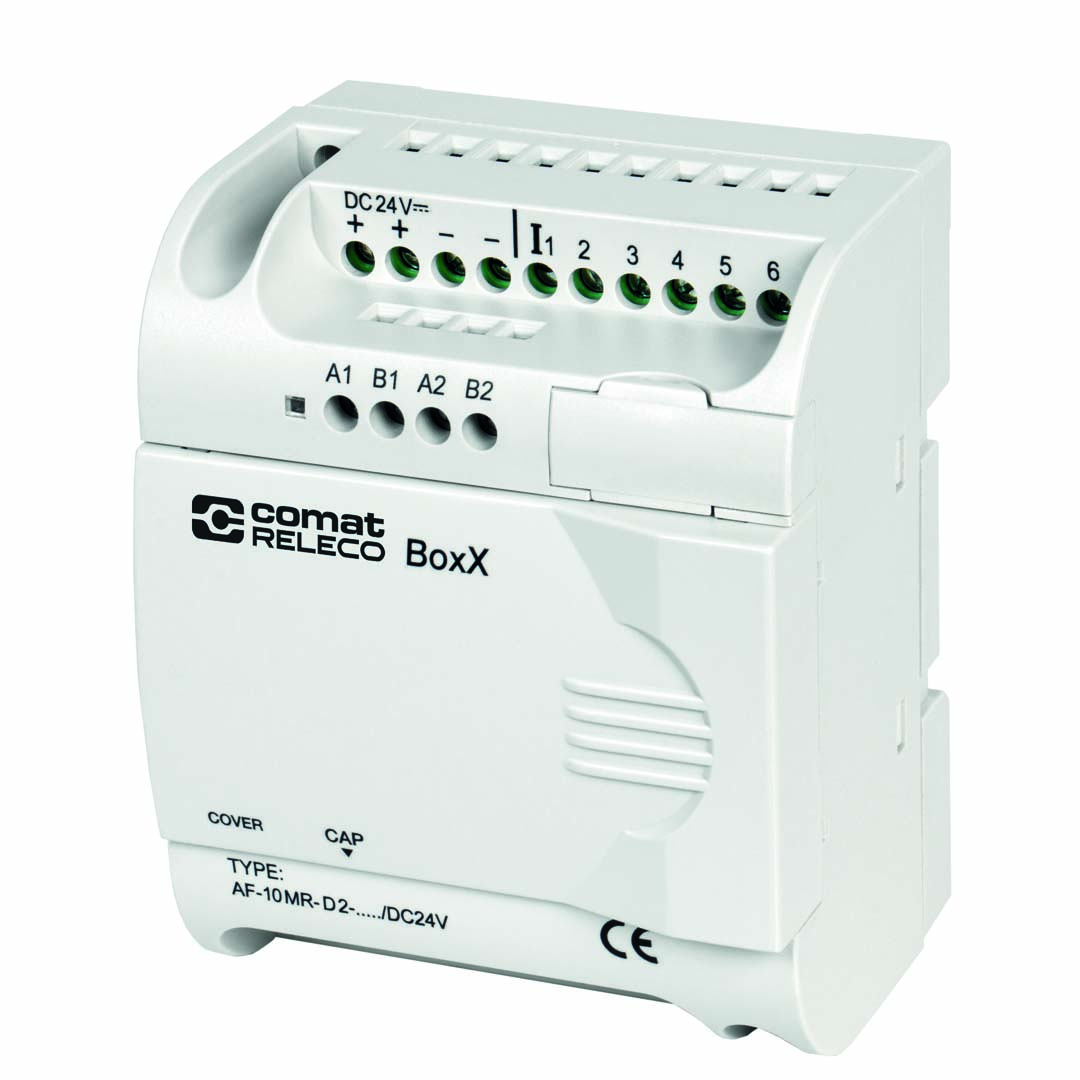

AF-10MR-D2-CAP/DC24V
BoxX2 without display
ELDAS®:
560820217
6 digital inputs / analogue DC | 4 relay outputs / NO
| Current type | DC |
|---|---|
| Nominal voltage | 24 V |
| Baud rate | 9 600 bps / 19 200 bps |
|---|---|
| Interface | support 2 channel with RS485 and 1 channel with program interfaces |
| Protocol | Self-defined protocol / MODBUS RTU protocol (only read) |
| Mounting | DIN rail or Wall (M3) |
|---|---|
| Operation temperature | -20 … 70 °C |
| Storage temperature (no ice) | -40 … 70 °C |
| Delay time | 50 |
|---|---|
| Nominal voltage digital inputs | 10 … 24 V DC |
| Number of digital or analog inputs | 6 |
| Induced load | 2 |
|---|---|
| Programming language | Function block diagram (FBD) |
| Resistor load / Lamp load | 10 |
| Storage capacity | Program 64 k / 127 function block |
| Digital output | 25 000 switch cycles |
|---|---|
| Number of relay outputs | 4 |
| Output type | Relay |
| Rated current | 10 A |
| Rated voltage | 250 V AC |
| Type of terminal | NO |
| Nominal voltage | 12 … 24 V DC |
|---|---|
| Operating voltage range | 10 … 28 V DC |
| Power consumption DC | < 4 W |
| Approvals | UKCA,CE |
|---|---|
| Standards | IEC/EN 61000-3-2,IEC/EN 61000-3-3,IEC/EN 55032,IEC/EN 55035 |
| Conductor cross section control / main circuit | 1 x 2.5 mm2 2 x 1.5 mm2 |
|---|---|
| Contact type control / main circuit | Screw connection |
| Max. wire count control / main circuit | 2 |
| Nominal screw torque control / main circuit | 0.5 Nm / 0.5 Nm |
| Screwdrive control / main circuit | Screwdriver with a spade tip of 3 mm |
