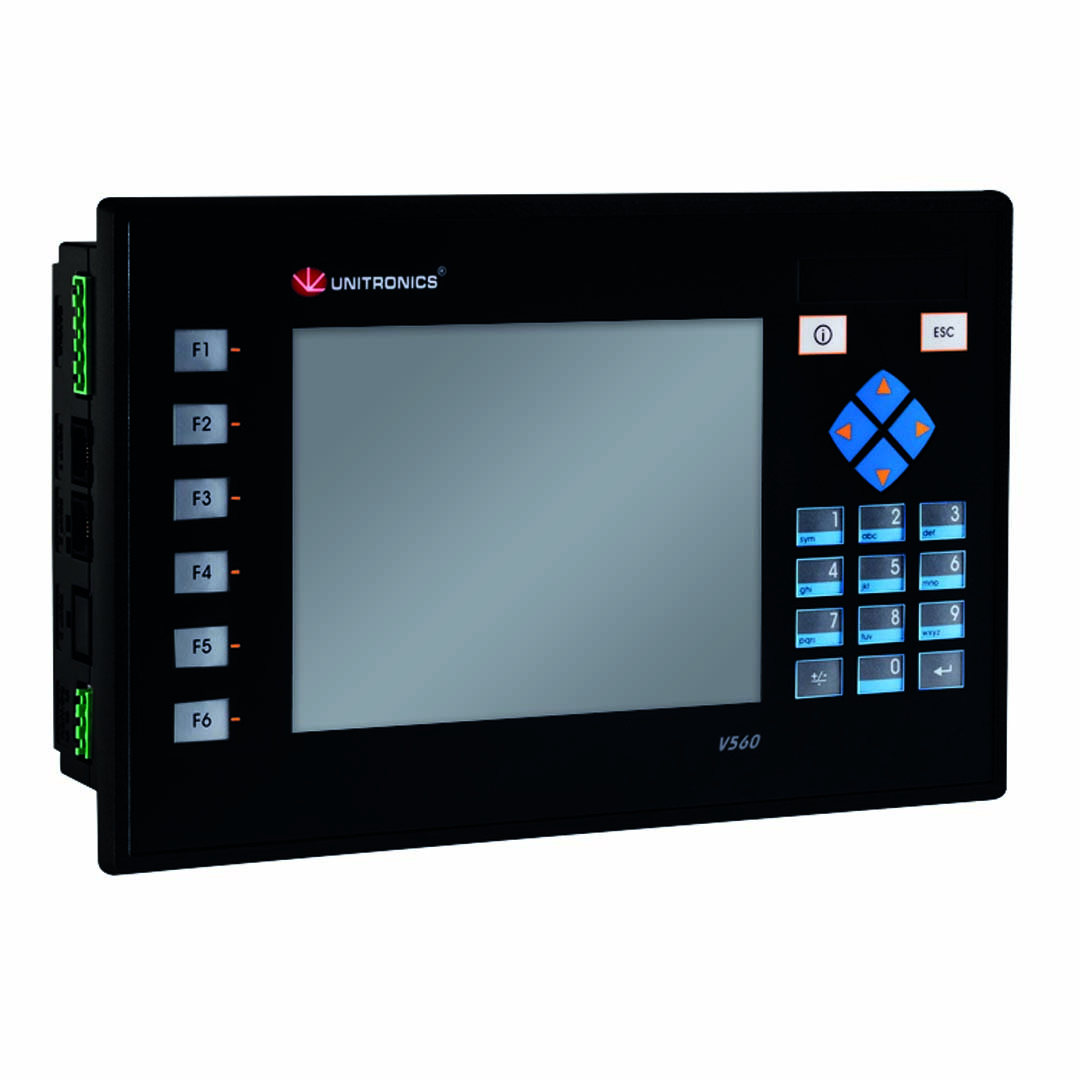

V560-T25B

- Display: 5.7" touchscreen
- Power supply: 12/24 V DC
- Expansion to up to 1000 I/Os with snap-in I/Os
- I/O options such as digital, analogue, high speed, temperature and weight measurement
- Communication: RS232 / RS485 / CAN / Mini USB

ELDAS®:

Current type	DC
Nominal voltage	12 V-24 V

Back-up battery	7 years typical at 25 °C, battery back-up for RTC and system data, including variable data
Ingress Protection	IP 20 / NEMA1 (case), IP 65 / NEMA4X (front panel)
Mounting	Panel with brackets
Operation temperature	0 … 50 °C / 32 ... 122 °F
Relative huminity, no condensation	5 ... 95 %
Storage temperature (no ice)	-20 … 60 °C / -4 ... 140 °F
Weight	750 g

Display	5.7” touchscreen, TFT, LCD, resistive, analog, 65 536 (16 bit) colors
Number of definable displays	1024
Number of keys	24
Resolution	320 x 240 pixels (QVGA)

Execution time	9 µs / Kb
Memory card	Micro SD-Card
Number of ladder code memory (virtual)	2000
Number of memory bits (coils)	8192
Number of memory integers (registers)	4096
Number of timers	384

Nominal voltage	12 … 24 V DC
Operating voltage range	10.2 … 28.8 V DC

Approvals	CE,cULus,UKCA,EAC
