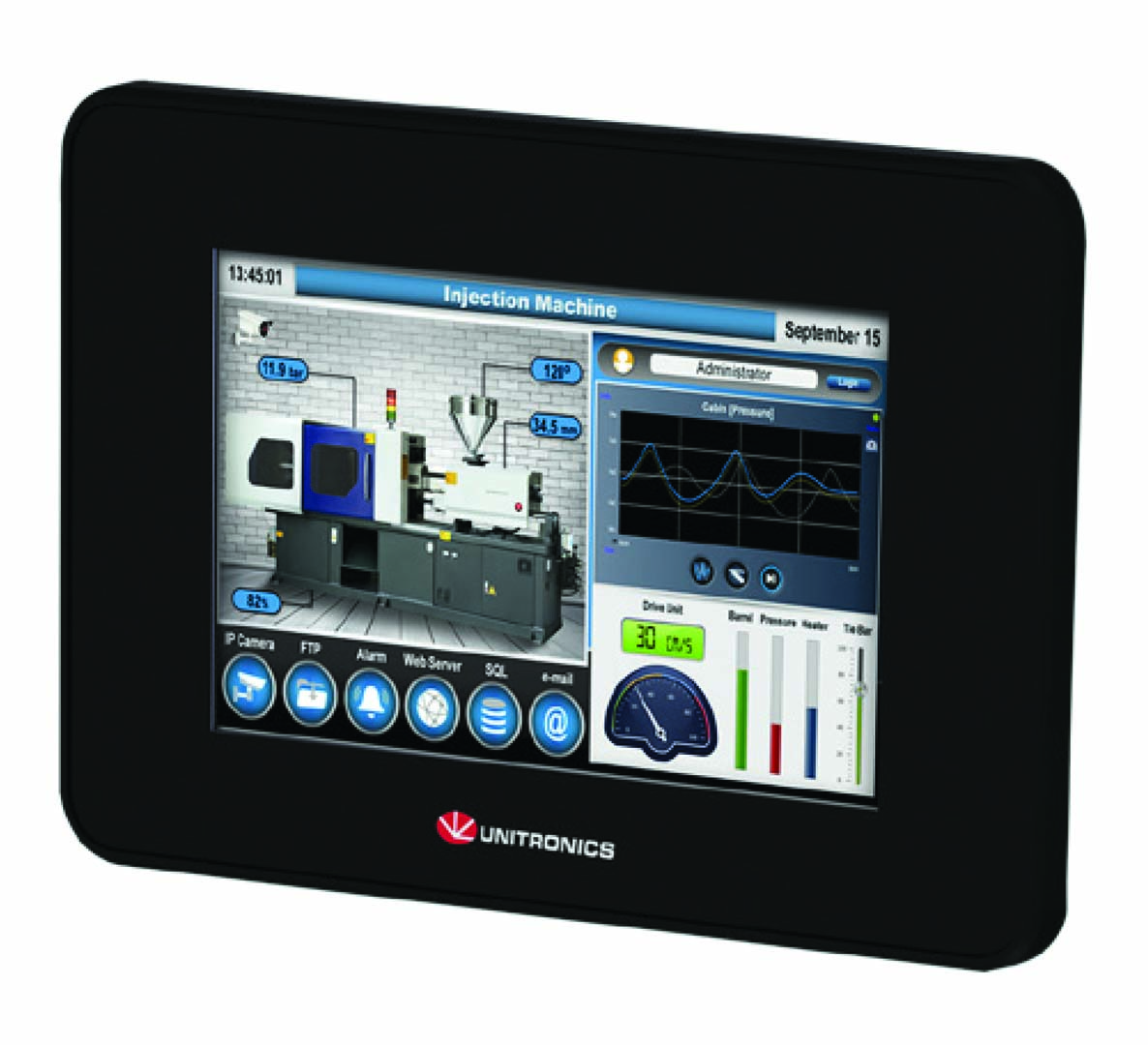

USL-101-B05
UNISTREAM Display
ELDAS®:
| Current type | DC |
|---|---|
| Nominal voltage | 12 V-24 V |
| Ingress Protection | IP20 / NEMA1 (Rear side), IP65/66, NEMA4X (Front face) |
|---|---|
| Operating altitude | 2'000 m / 6'562 ft |
| Operation temperature | -20 ... 55°C / -4 ... 131 °F |
| Relative huminity, no condensation | 5 ... 95 % |
| Storage temperature (no ice) | -30 ... 70 °C / -22 ... 158 °F |
| Display | Touchscreen, TFT, resistive, analog, 65 536 (16 bit) colors, 16M (24 bit) colors (15.6") |
|---|---|
| Resolution | 800 x 480 (WVGA) 5", 800 x 480 (WVGA) 7", 1 024 x 600 (WSVGA) 10.1" and 1 366 x 768 15.6" |
| Nominal voltage | 12 ... 24 V DC |
|---|---|
| Operating voltage range | 10.2 ... 28.8 V DC |
| Approvals | UKCA,CE |
|---|---|
| Standards | IEC 60068-2-27,IEC 60068-2-6 |
