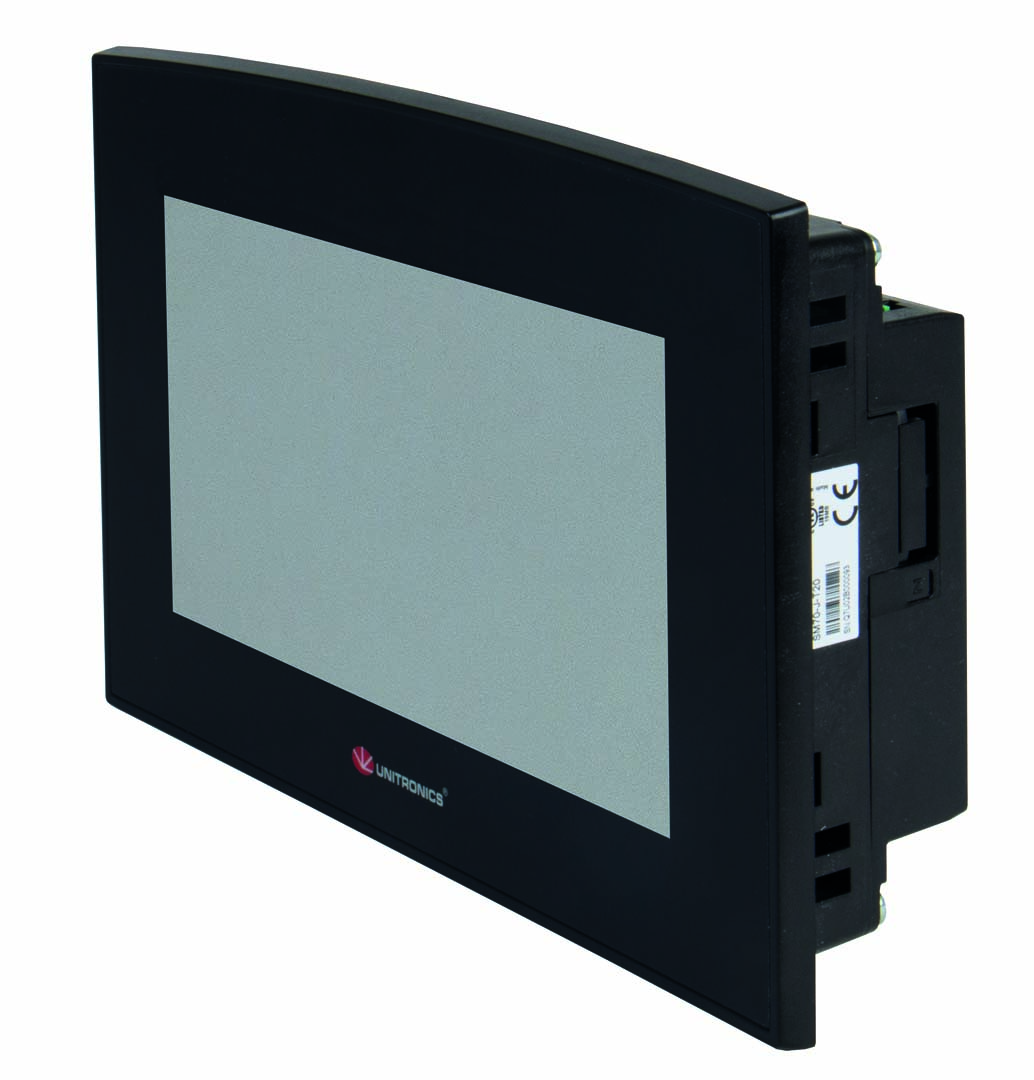

SM70-J-R20
- Display: 7.0" touchscreen- Power supply: 24 V DC- Digital inputs: 10- Digital/analogue inputs: 2- Relay outputs: 8- Communication: RS232 / RS485 / CAN / Ethernet (optional)
ELDAS®:
| Approvals | EAC |
|---|
| Current type | DC |
|---|---|
| Nominal voltage | 24 V |
| Back-up battery | 7 years typical at 25 °C, battery back-up for RTC and system data, including variable data. |
|---|---|
| Ingress Protection | IP20 / NEMA1 (DIN-rail mounted), IP65 / NEMA4X (Panel mounted) |
| Mounting | DIN rail, Panel with brackets |
| Operating altitude | 2000m / 6562 ft |
| Operation temperature | 0 … 50 °C / 32 ... 122 °F |
| Relative huminity, no condensation | 10 ... 95 % |
| Storage temperature (no ice) | -20 … 60 °C / -4 ... 140 °F |
| Display | 7.0” touchscreen, TFT, LCD, resistive, analog, 65 536 colors (16 bit) |
|---|---|
| Number of definable displays | 24 |
| Resolution | 800 x 480 pixels (WVGA) |
| Number of analog inputs* | 2 |
|---|---|
| Number of digital inputs | 12 |
| Execution time | 15 µs / Kb |
|---|---|
| Number of ladder code memory (virtual) | 192 |
| Number of memory bits (coils) | 512 |
| Number of memory integers (registers) | 256 |
| Number of timers | 32 |
| Number of relay outputs | 8 |
|---|
| Nominal voltage | 24 V DC |
|---|---|
| Operating voltage range | 20.4 ... 28.8 V DC |
| Approvals | CE,cULus,EAC,UKCA |
|---|---|
| Standards | IEC 60068-2-27,IEC 60068-2-6 |
