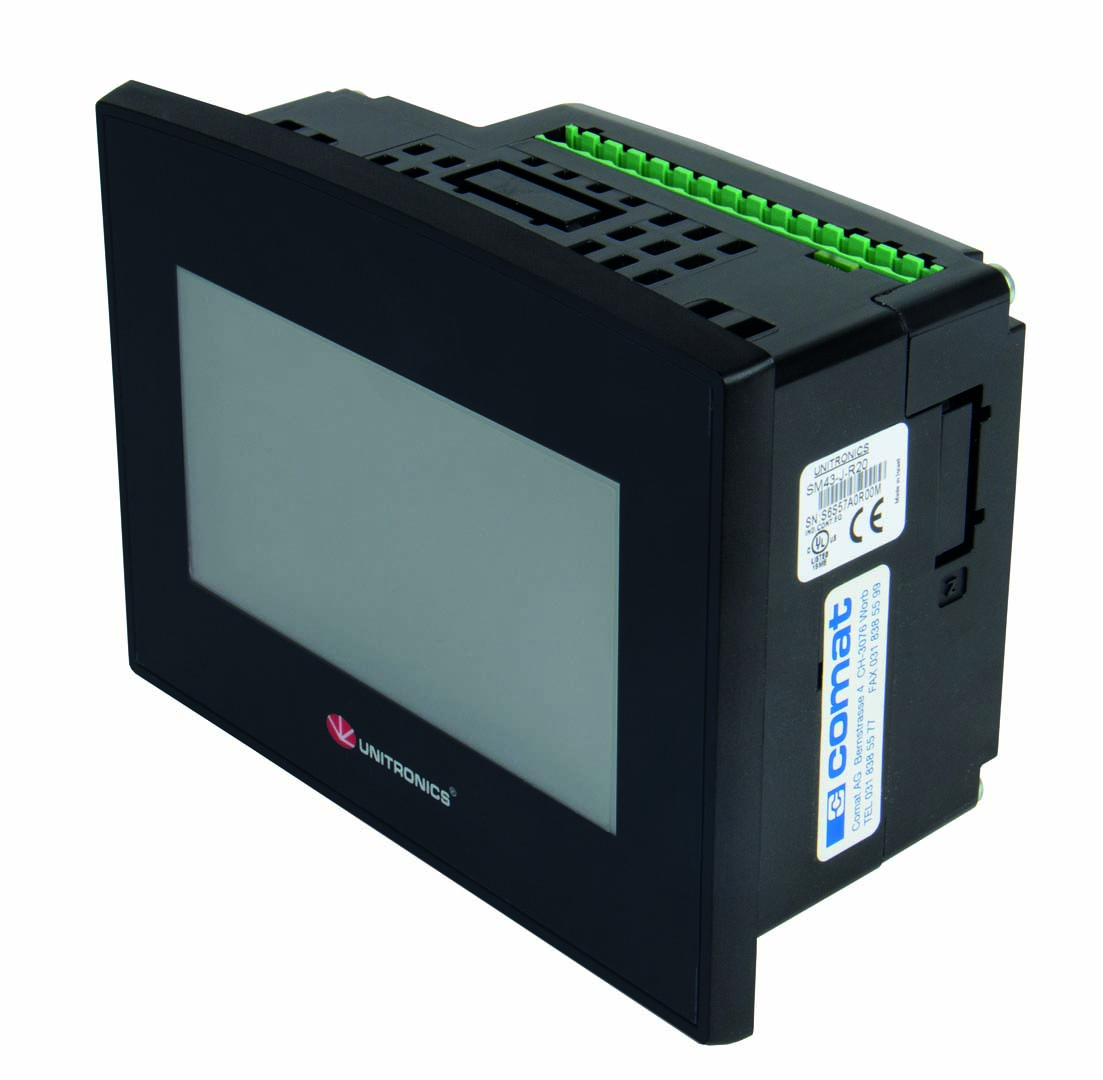

SM43-J-R20
- Display: 4.3" touchscreen
- Power supply: 24 V DC
- Digital inputs: 10
- Digital/analogue inputs: 2
- Relay outputs: 8
- Communication: USB / RS232 / RS485 / CAN
- Power supply: 24 V DC
- Digital inputs: 10
- Digital/analogue inputs: 2
- Relay outputs: 8
- Communication: USB / RS232 / RS485 / CAN
ELDAS®:
560824317
| Approvals | EAC |
|---|
| Current type | DC |
|---|---|
| Nominal voltage | 24 V |
| Back-up battery | 7 years typical at 25°C, battery back-up for RTC and system data, including variable data. |
|---|---|
| Mounting | DIN rail, Panel with brackets |
| Operation temperature | 0 … 50 °C |
| Storage temperature (no ice) | -20 … 60 °C |
| Display | 4.3” Touchscreen, TFT, LCD, resistive, analog, 65 536 colors (16 bit) |
|---|---|
| Number of definable displays | 24 |
| Resolution | 480 x 272 pixels |
| Number of analog inputs* | 2 |
|---|---|
| Number of digital inputs | 12 |
| Execution time | 15 µs / Kb |
|---|---|
| Number of ladder code memory (virtual) | 192 |
| Number of memory bits (coils) | 512 |
| Number of memory integers (registers) | 256 |
| Number of timers | 32 |
| Number of relay outputs | 8 |
|---|
| Nominal voltage | 24 V DC |
|---|---|
| Operating voltage range | 20.4 ... 28.8 V DC |
| Approvals | CE,cULus,EAC,UKCA |
|---|---|
| Standards | IEC 60068-2-27,IEC 60068-2-6 |
