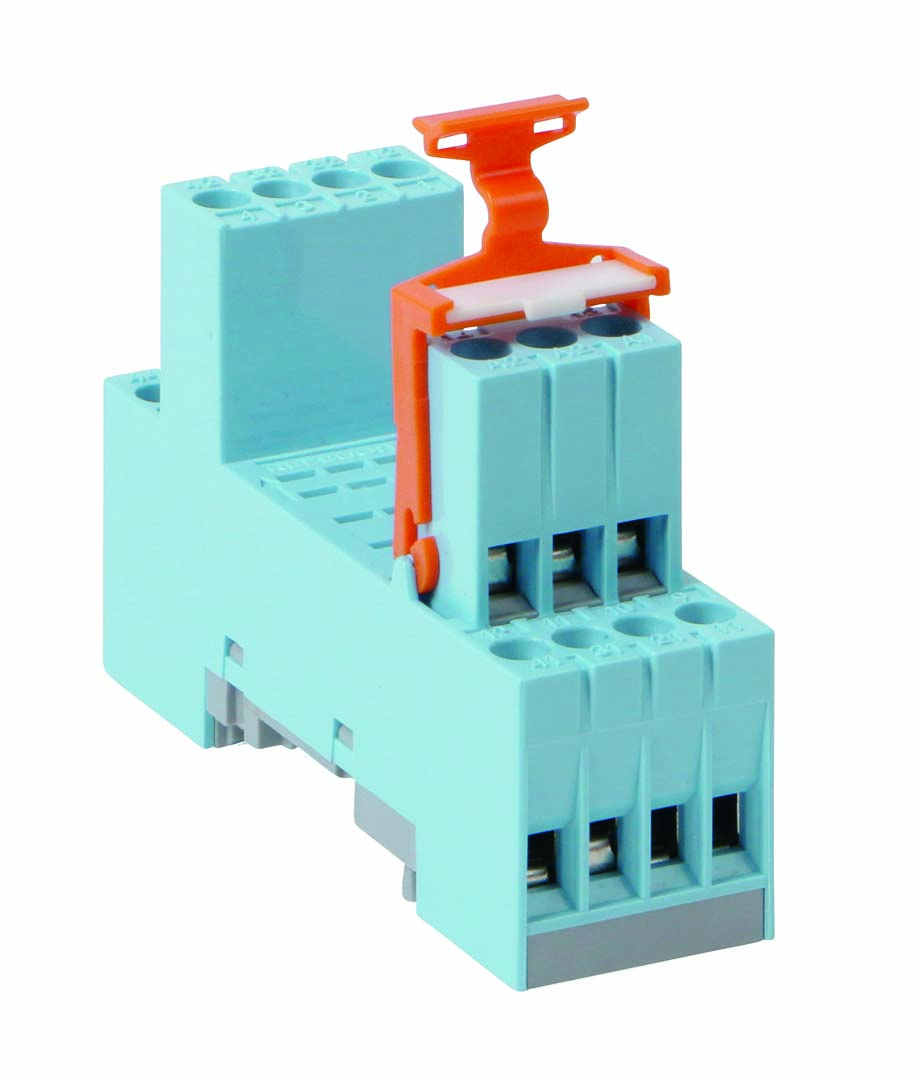

S9-M
- 6 A @ 250 V
ELDAS®:
8.42804E+12
| - All terminals / DIN rail | 2.5 kV rms / 1 min |
|---|---|
| - Multi wire (un-crimped) | 0.34 mm2 / AWG 22 … 2.5 mm2 / AWG 14 |
| - Single wire | 4 mm2 / AWG 12, 2 x 2.5 mm2 / AWG 14 |
| - Terminal / terminal | 2.5 kV rms / 1 min |
| Conductor cross section | |
| Housing material | PA / PC |
| Mounting | TH35 (EN 60715) or back panel mounting |
| Nominal screw torque | 0.7 Nm |
| Operation temperature | -40 … 60 °C |
| Rated load | 6 A / 250 V |
| Screw Dimension | M3 Pozi slot |
| Storage temperature (no ice) | -40 … 80 °C |
| Weight | 54 g |
| Approvals | UKCA,CE,cURus,EAC,LR,CSA |
|---|---|
| Standards | EN 60664-1 |
Approvals
3D-models "S9-M"

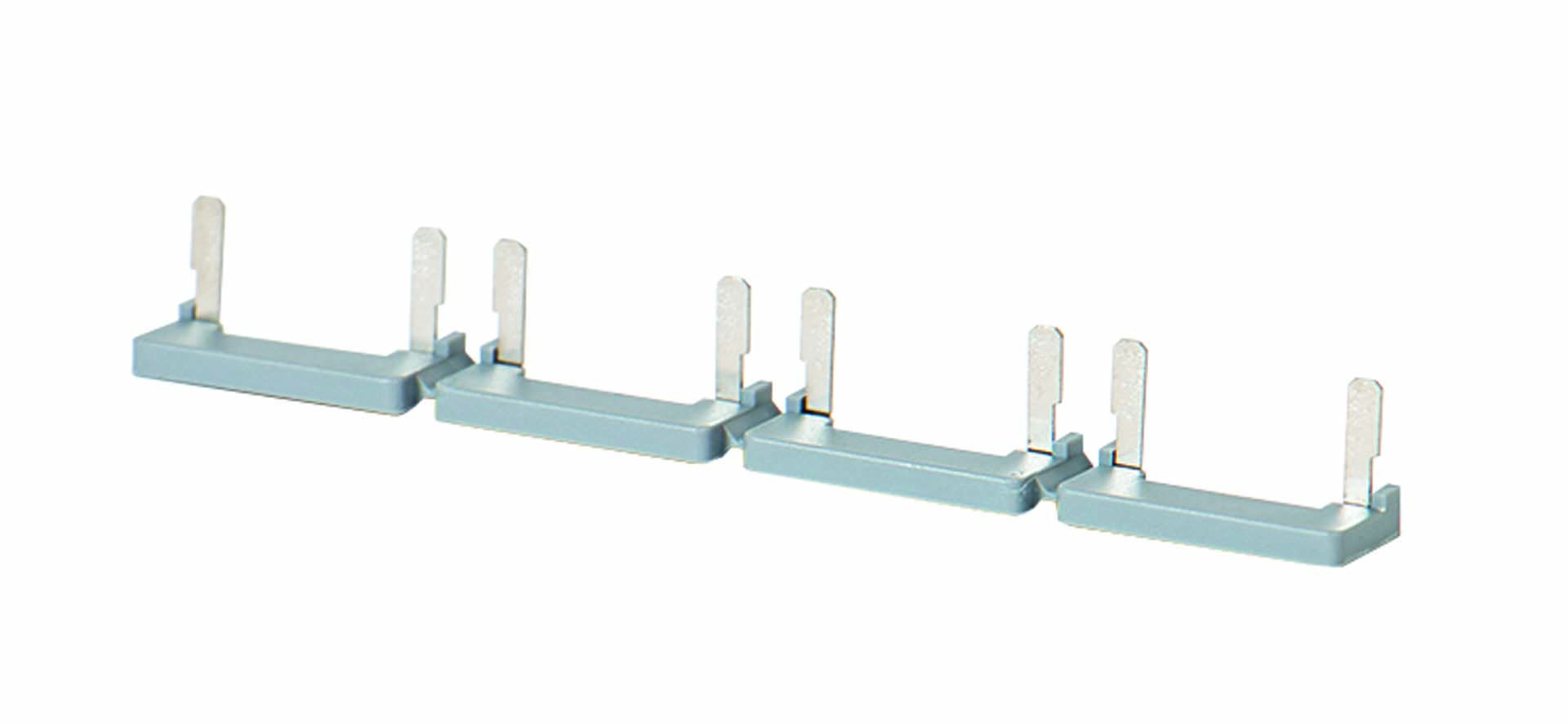

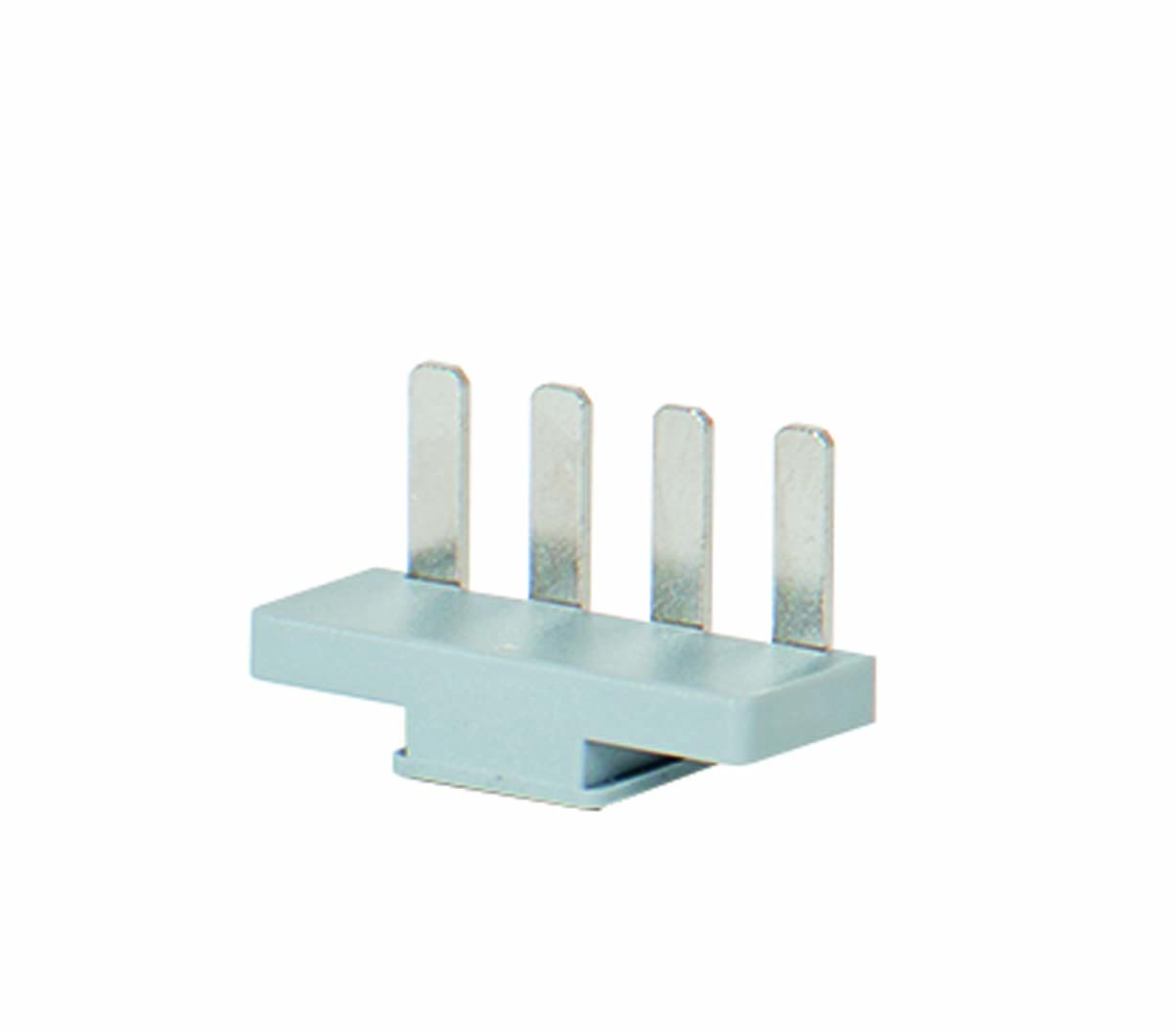

Accessories
