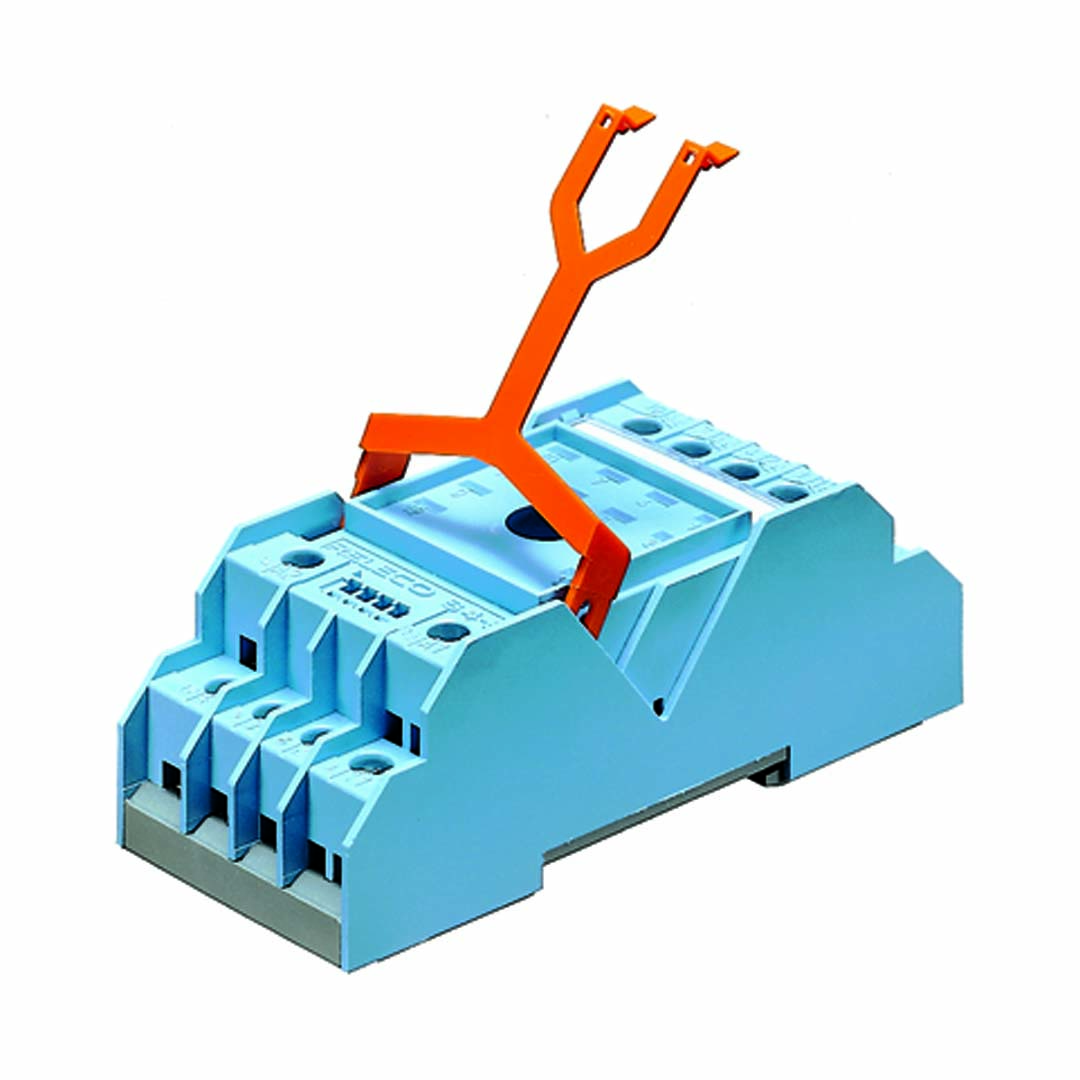

S4-J
- 10 A @ 250 V
- Mounting on DIN rail or mounting plate
- Mounting on DIN rail or mounting plate
ELDAS®:
8.42804E+12
| - All terminals / DIN rail | 2.5 kV rms / 1 min |
|---|---|
| - Multi wire (un-crimped) | 0.34 mm2 / AWG 22 … 1 mm2 / AWG 18 |
| - Single wire | 1.5 mm2 / AWG 16 or 2 x 1.5 mm2 / AWG 16 |
| - Terminal / terminal | 2.5 kV rms / 1 min |
| Conductor cross section | |
| Housing material | PA / PC |
| Mounting | TH35 (EN 60715) or back panel mounting |
| Nominal screw torque | 0.8 Nm |
| Operation temperature | -40 … 60 °C |
| Rated load | 10 A / 250 V |
| Screw Dimension | M3.5 Philips-slot (combo) |
| Storage temperature (no ice) | -40 … 80 °C |
| Weight | 80 g |
| Approvals | UKCA,CE,EAC,LR,CSA,cURus |
|---|---|
| Standards | EN 60664-1 |
