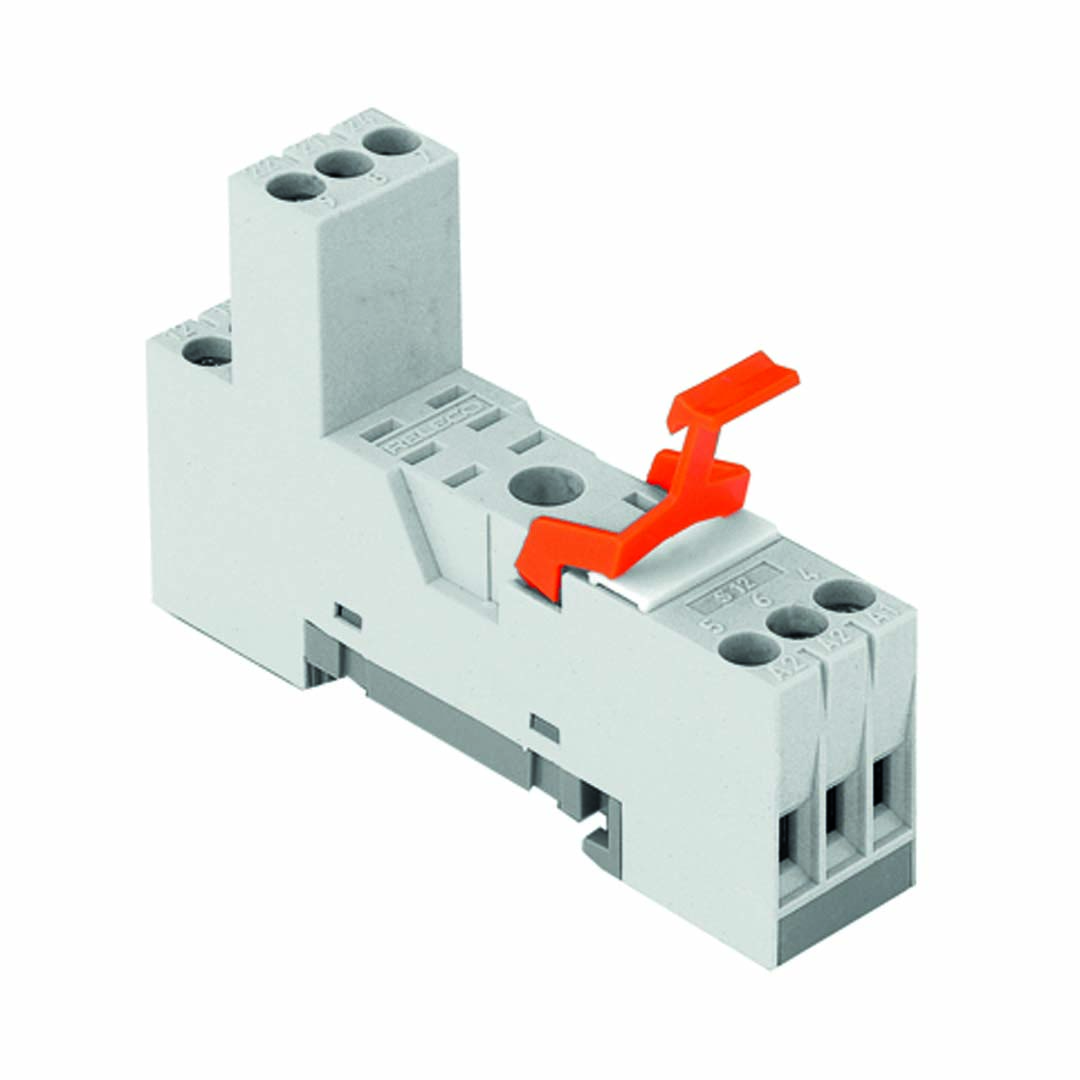

S12-GR
- 5 A @ 250 V
ELDAS®:
7.63001E+12
| - All terminals / DIN rail | 5 kV rms / 1 min |
|---|---|
| - Contact / coil terminal | 5 kV rms / 1 min |
| - Multi wire (un-crimped) | 0.34 mm2 / AWG 22 … 2.5 mm2 / AWG 14 |
| - Single wire | 4 mm2 / AWG 12, 2 x 2.5 mm2 / AWG 14 |
| - Terminal / terminal | 2.5 kV rms / 1 min |
| Conductor cross section | |
| Housing material | PA |
| Mounting | TH35 (EN 60715) or back panel mounting |
| Nominal screw torque | 0.7 Nm |
| Operation temperature | -40 … 70 °C |
| Rated load | 5 A / 250 V |
| Screw Dimension | M3 Pozi slot |
| Storage temperature (no ice) | -40 … 80 °C |
| Weight | 31 g |
| Approvals | UKCA,CE,EAC,Railway |
|---|---|
| Railway | EN 50155,EN 45545-2 |
| Standards | EN 60664-1 |
