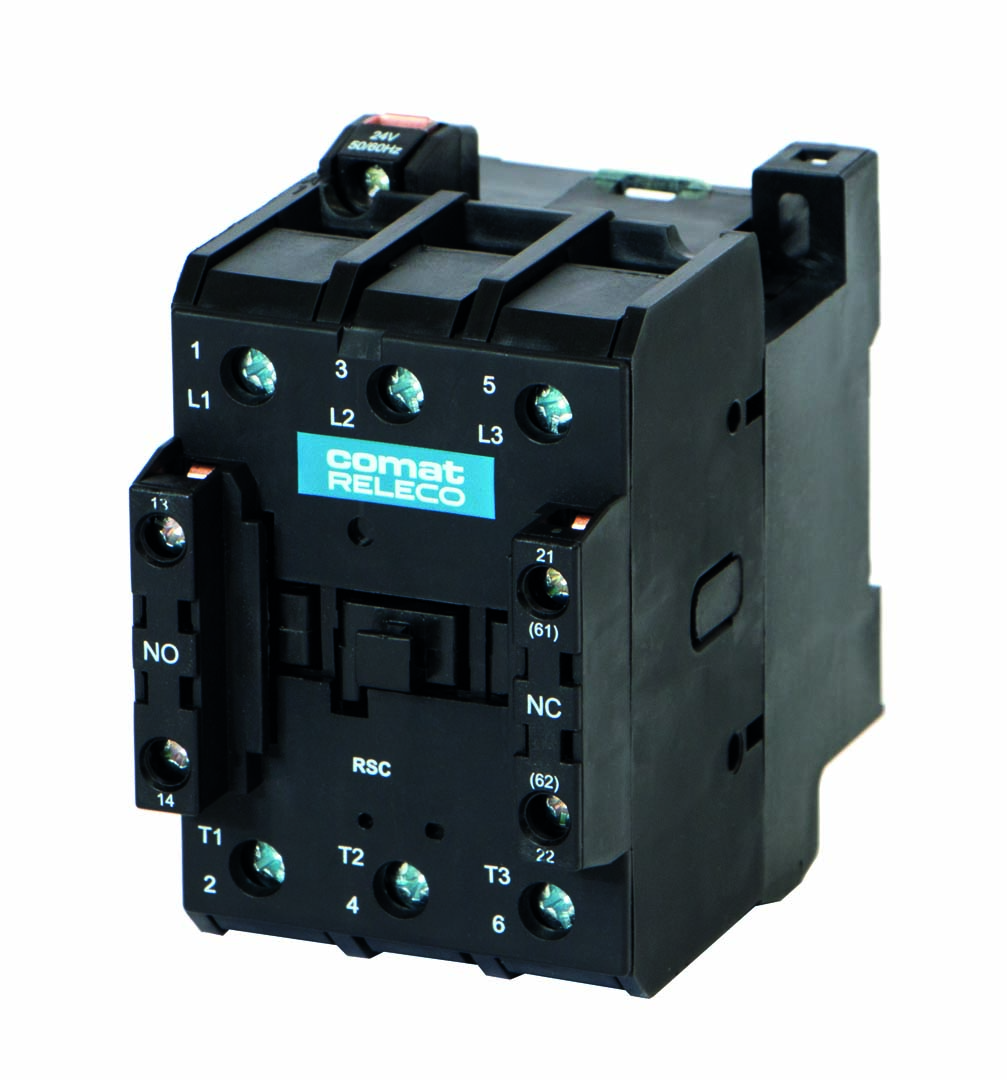

RSC63-311/AC24V
| Nominal voltage | 24 V |
|---|---|
| Current type | AC (50 Hz) |
| Release time | 8 ... 15 ms |
|---|---|
| Pick-up voltage | ≤ 0.85 UN |
| Pick-up time | 10 ... 20 ms |
| Operating voltage range | 0.85 ... 1.1 UN |
| Frequency range | 50 / 60 Hz |
| Power consumption AC / DC | 10 VA |
| Release voltage | ≥ 0.2 UN AC |
| Ambient temperature operation close contact | -20 ... 45 °C |
|---|---|
| Ambient temperature operation open contact | -20 ... 60 °C |
| Housing material | PA 66 |
| Ingress Protection | IP 20 |
| Mounting | DIN rail |
| Operation Altitude | Max. 2 000 m |
| Relative huminity, no condensation | 95 % |
| Storage temperature (no ice) | -30 ... 80 °C |
| Weight | 930 g |
| Clearance of open contact | 3.6 |
|---|---|
| Overvoltage category | III |
| Pollution degree | 3 |
| Rated impulse withstand voltage open contact | 6 kV / 1 min |
| Rated insulation voltage | 1 000 V |
| Number of contacts | 3 NO,1 NC,1 CO |
|---|
| Approvals | UKCA,CE,EAC,cULus |
|---|---|
| Standards | IEC/EN 60947 |
| Stripping Length control / main circuit | 11 mm / 16 mm |
|---|---|
| Dual sleeve control / main circuit | 1 |
| Contact type control / main circuit | Screw connection, M3.5 / M6 |
| Conductor cross section control / main circuit | 2.5 mm2 / 25 mm2 |
| Max. wire count control / main circuit | 1 |
| Nominal screw torque control / main circuit | 0.8 Nm / 4 Nm |
| Screwdrive control / main circuit | PZ2 / PZ2 |
| Wiring points | 10 |
