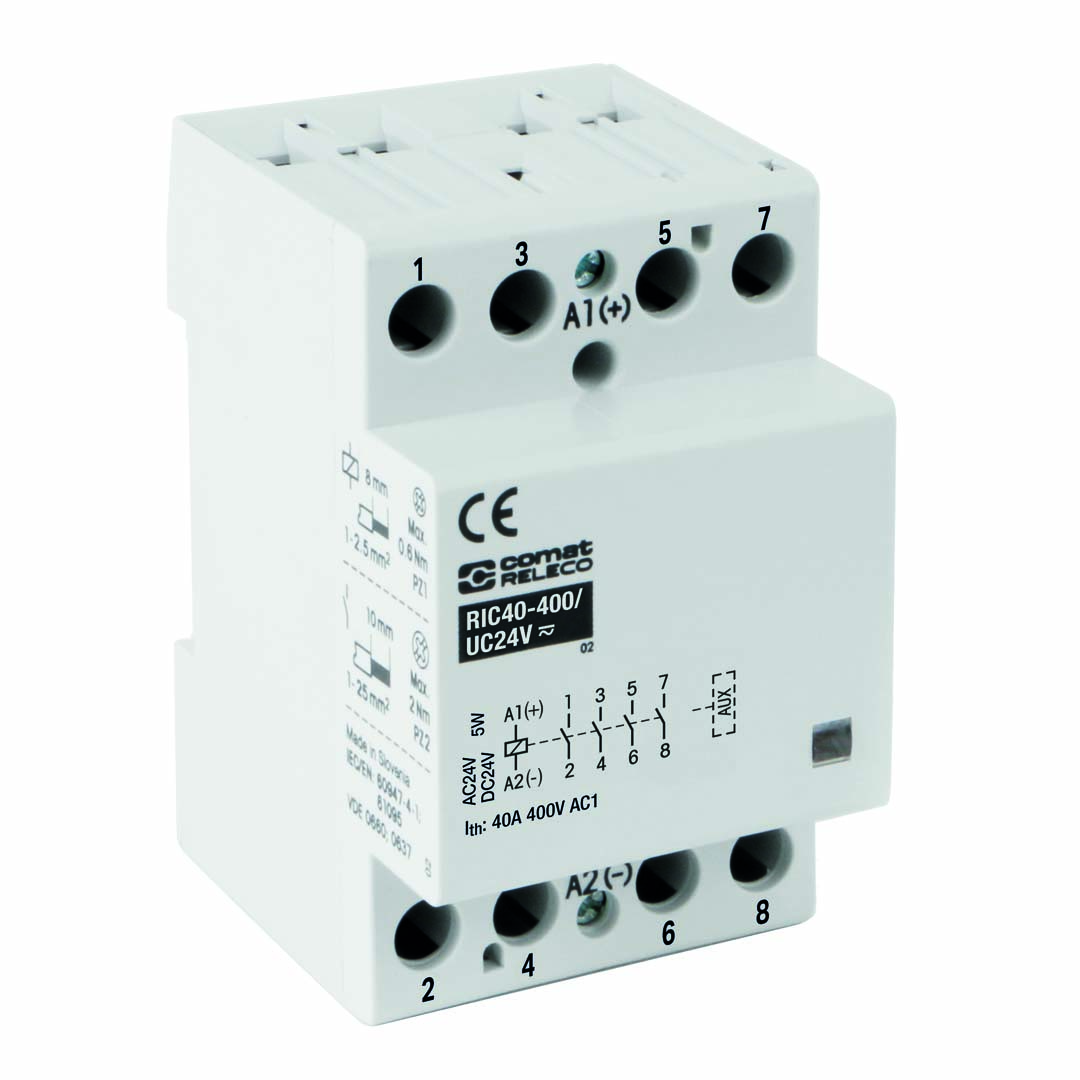

RIC40-400/UC24V
24VUC, 4S 40A AC-1
ELDAS®:
507964054
| Current type | AC / DC (50 Hz) |
|---|---|
| Nominal voltage | 24 V |
| Frequency range | 50 / 60 Hz (AC) | 40 ... 500 Hz (UC) |
|---|---|
| Operating voltage range | 0.85 ... 1.1 UN |
| Pick-up time | 15 ... 20 ms |
| Pick-up voltage | ≤ 0.85 UN |
| Power consumption AC / DC | 5 VA / 5 W |
| Release time | 35 ... 45 ms |
| Release voltage | ≥ 0.1 UN |
| Dimensions | 84 x 53.5 x 65.5 mm |
|---|---|
| Housing material | PA 6 |
| Ingress Protection | IP 20 |
| Mounting | DIN rail |
| Operation Altitude | Max. 2 000 m |
| Operation temperature | -25 … 70 °C |
| Relative huminity, no condensation | 95 % relative humidity |
| Shock test | switched off: 10 g (Z and X axis) / switched on: 15 g (Z axis) and 2 g (X axis) |
| Storage temperature (no ice) | -40 … 80 °C |
| Vibration test | switched off: 2 g (Z and X axis) / switched on: 3 g (Z axis) and 1 g (X axis) |
| Weight | 420 g |
| Clearance of open contact | 3.6 |
|---|---|
| Overvoltage category | III |
| Pollution degree | 3 |
| Rated impulse withstand voltage open contact | 6 kV / 1 min |
| Rated insulation voltage | 440 V |
| Contact materials | AgSnO2 |
|---|---|
| Electrical endurance at rated load AC-1 (cycles) | ≥ 100 000 |
| Electrical endurance at rated load AC-3 (cycles) | ≥ 150 000 |
| Electrical endurance at rated load DC-1 (cycles) | ≥ 100 000 |
| Inrush current | 170 A, 100 ms / 970 A, 300 µs |
| Mechanical endurance (cycles) | ≥ 10 000 000 |
| Rated current AC-1 | 40 A |
| Rated load AC-1 | 8.7 kW |
| Rated load AC-3 | 3.7 kW |
| Rated voltage | 400 V AC |
| Recommended minimum contact load | 50 mA, 17 V |
| Switching frequency at rated load AC-1 (cycles / h) | ≤ 600 |
| Switching frequency at rated load AC-3 (cycles / h) | ≤ 600 |
| Switching frequency at rated load DC-1 (cycles / h) | ≤ 300 |
| Approvals | UKCA,CE,EAC |
|---|---|
| Standards | IEC/EN 60947,IEC/EN 61095 |
| Conductor cross section control / main circuit | 2.5 mm2 / 16 mm2 |
|---|---|
| Contact type control / main circuit | Screw connection M3 / M5 |
| Nominal screw torque control / main circuit | 0.6 Nm / 3.5 Nm |
| Screwdrive control / main circuit | PZ1 / PZ2 |
| Stripping Length control / main circuit | 8 mm / 10 mm |
