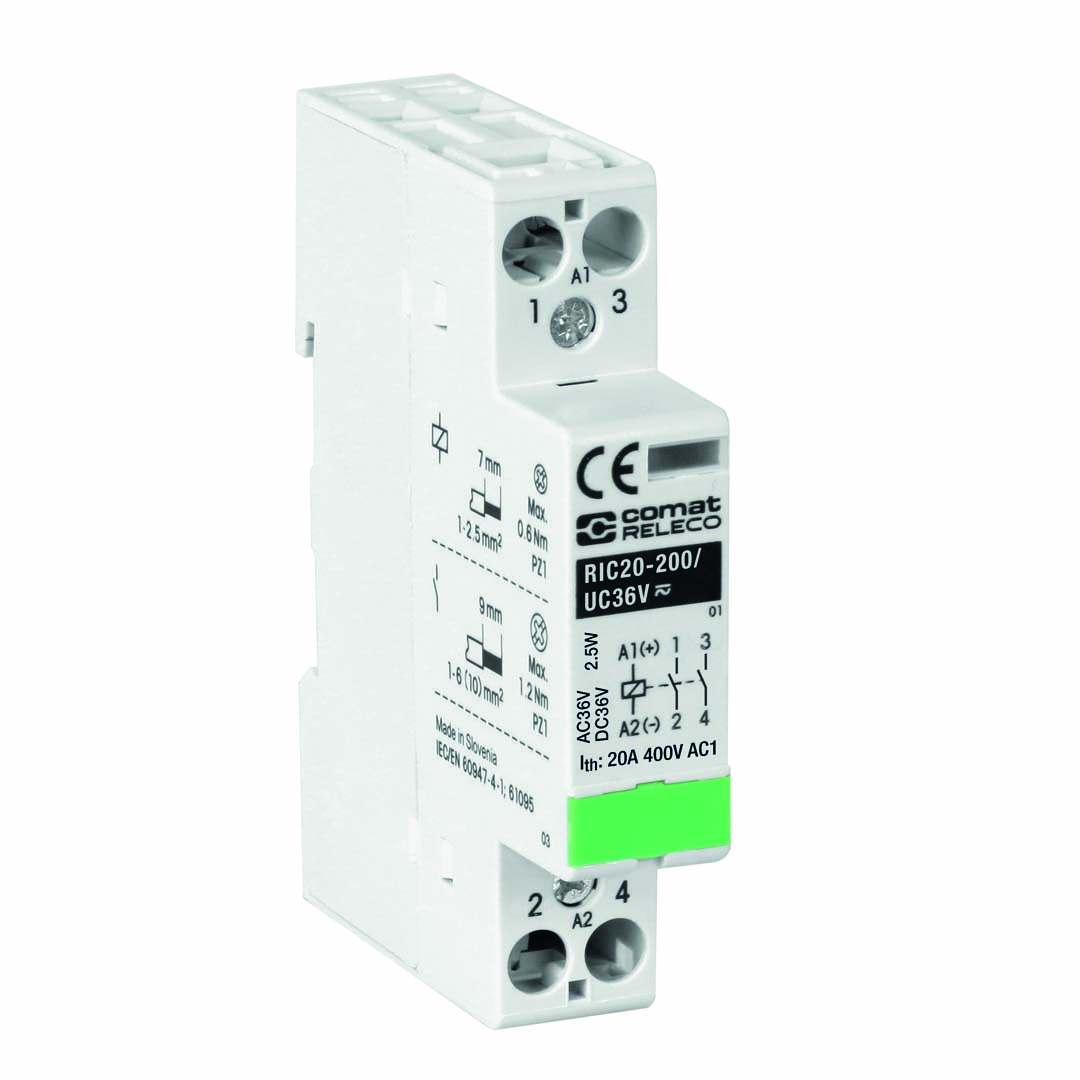

RIC20-200/UC36V
RIC installation contactors are versatile electromagnetic switching devices designed to reliably switch various types of electrical loads, such as lighting systems, heating, air conditioning, motors, or pumps. They have a rest position and can safely switch, conduct, and interrupt currents under normal operating conditions, as well as in overload situations. The double-break contacts interrupt the circuit at two points simultaneously, reducing contact wear, improving arc suppression during switching, and thus ensuring a particularly long service life.
| Nominal voltage | 36 V |
|---|---|
| Current type | AC / DC (50 Hz) |
| Release time | 20 ... 50 ms |
|---|---|
| Pick-up voltage | ≤ 0.85 UN |
| Pick-up time | 15 ... 45 ms |
| Operating voltage range | 0.85 ... 1.1 UN |
| Frequency range | 40 ... 500 Hz |
| Power consumption AC / DC | 2.1 VA / 2.1 W |
| Release voltage | ≥ 0.1 UN |
| Dimensions | 17.5 x 65.5 x 85 mm |
|---|---|
| Housing material | PA 6 |
| Ingress Protection | IP 20 |
| Mounting | DIN rail |
| Operation Altitude | Max. 2 000 m |
| Operation temperature | -25 … 70 °C |
| Relative huminity, no condensation | 95 % relative humidity |
| Shock test | switched off: 10 g (Z and X axis) / switched on: 15 g (Z axis) and 2 g (X axis) |
| Storage temperature (no ice) | -30 ... 80 °C |
| Vibration test | switched off: 2 g (Z and X axis) / switched on: 3 g (Z axis) and 1 g (X axis |
| Weight | 130 g |
| Clearance of open contact | 3.6 |
|---|---|
| Overvoltage category | III |
| Pollution degree | 3 |
| Rated impulse withstand voltage open contact | 4 kV / 1 min |
| Rated insulation voltage | 440 V |
| Number of contacts | 2 NO |
|---|
| Approvals | UKCA,CE,EAC |
|---|---|
| Standards | IEC/EN 60947,IEC/EN 61095 |
| Stripping Length control / main circuit | 7 mm / 9 mm |
|---|---|
| Dual sleeve control / main circuit | 1 |
| Contact type control / main circuit | Screw connection, M3 / M3.5 |
| Conductor cross section control / main circuit | 2.5 mm2 / 6 mm2 |
| Max. wire count control / main circuit | 1 |
| Nominal screw torque control / main circuit | 0.6 Nm / 1.2 Nm |
| Screwdrive control / main circuit | PZ1 / PZ1 |
