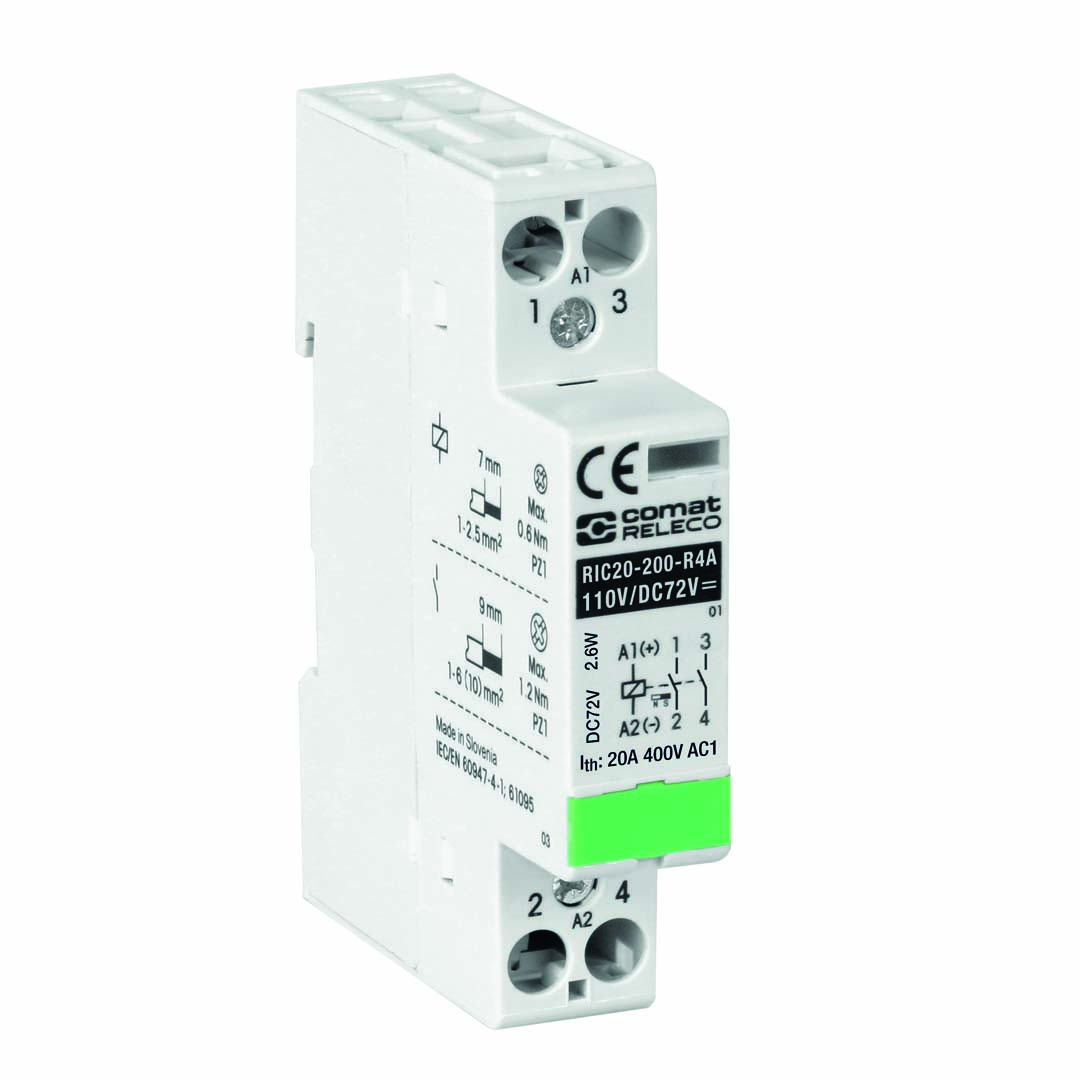

RIC20-200-R4A110V/DC72V
- 2 pole
- 2 NO contacts
- Contact material AgNi
- Max 20 A @ 230 V AC
- For installation in electrical distributor
- 2 NO contacts
- Contact material AgNi
- Max 20 A @ 230 V AC
- For installation in electrical distributor
RIC installation contactors are versatile electromagnetic switching devices designed to reliably switch various types of electrical loads, such as lighting systems, heating, air conditioning, motors, or pumps. They have a rest position and can safely switch, conduct, and interrupt currents under normal operating conditions, as well as in overload situations. The double-break contacts interrupt the circuit at two points simultaneously, reducing contact wear, improving arc suppression during switching, and thus ensuring a particularly long service life.
| Nominal voltage | 72 V |
|---|---|
| Current type | DC |
| Release time | 20 ... 50 ms |
|---|---|
| Pick-up voltage | ≤ 0.70 UN |
| Pick-up time | 15 ... 45 ms |
| Operating voltage range | 0.70 ... 1.25 UN |
| Power consumption DC | 2.6 W |
| Release voltage | ≥ 0.1 UN |
| Dimensions | 17.5 x 65.5 x 85 mm |
|---|---|
| Housing material | PA 6 |
| Ingress Protection | IP 20 |
| Mounting | 35 mm rail |
| Operation Altitude | Max. 2 000 m |
| Operation temperature | -25 … 70 °C |
| Relative huminity, no condensation | 95 % relative humidity |
| Shock test | switched off: 10 (Z and X axis) / switched on: 15 (Z axis) and 2 g (X axis) |
| Storage temperature (no ice) | -40… 80 °C |
| Vibration test | switched off: 2 (Z and X axis) / switched on: 3 (Z axis) and 1 g (X axis) |
| Weight | 130 g |
| Clearance of open contact | 3.6 |
|---|---|
| Overvoltage category | III |
| Pollution degree | 3 |
| Rated impulse withstand voltage open contact | 4 kV / 1 min |
| Rated insulation voltage | 440 V |
| Number of contacts | 2 NO |
|---|
| Approvals | UKCA,CE,EAC,Railway |
|---|---|
| Railway | EN 50155,EN 45545-2 |
| Standards | IEC/EN 60947 |
| Stripping Length control / main circuit | 7 mm / 9 mm |
|---|---|
| Dual sleeve control / main circuit | 1 |
| Contact type control / main circuit | Screw connection, M3 / M3.5 |
| Conductor cross section control / main circuit | 2.5 mm2 / 6 mm2 |
| Max. wire count control / main circuit | 1 |
| Nominal screw torque control / main circuit | 0.6 Nm / 1.2 Nm |
| Screwdrive control / main circuit | PZ1 / PZ1 |
