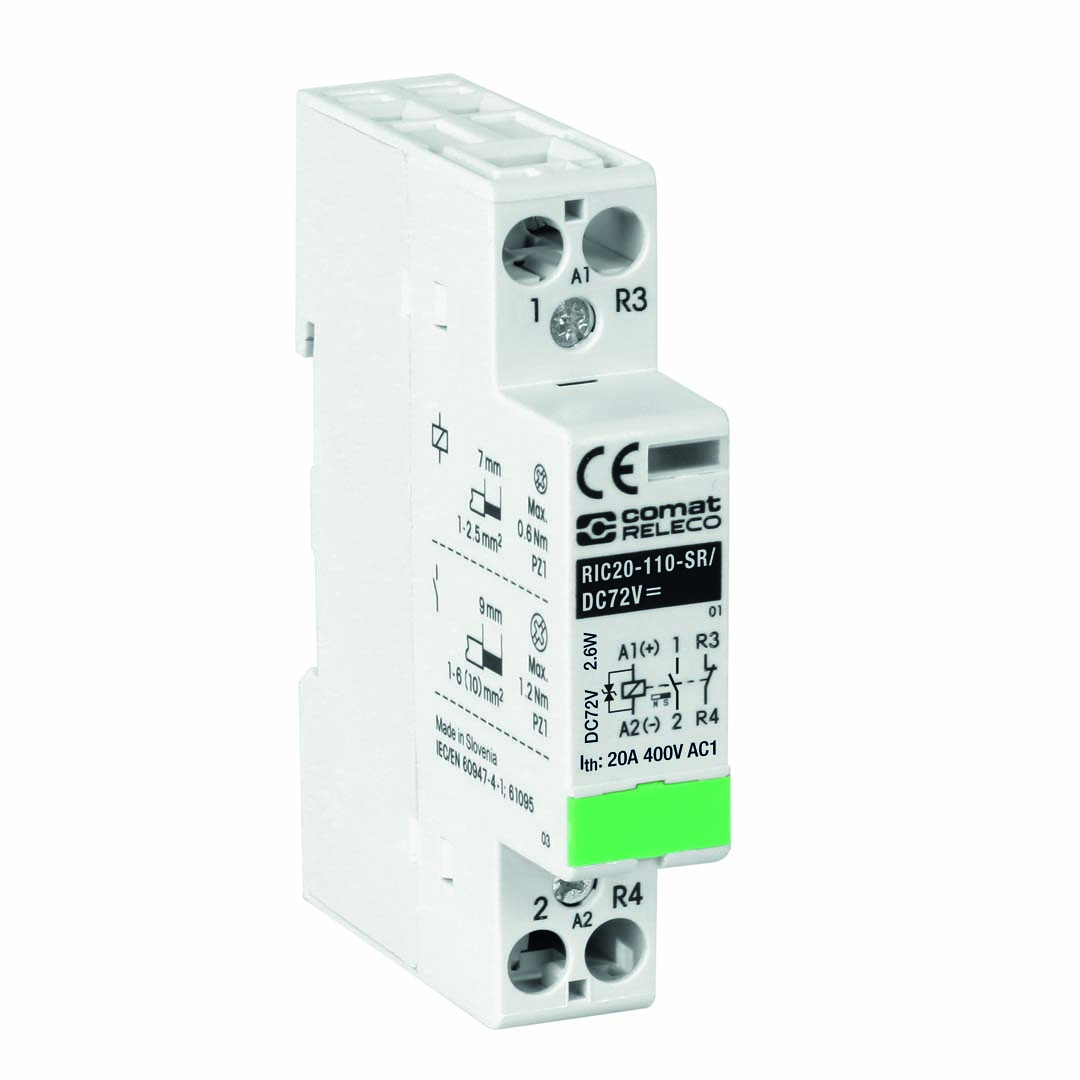

RIC20-110-SR/DC72V

- 2 pole
- 1 NO / 1 NC contacts
- Contact material AgNi
- Max 20 A @ 230 V AC
- For installation in electrical distributor

RIC installation contactors are versatile electromagnetic switching devices designed to reliably switch various types of electrical loads, such as lighting systems, heating, air conditioning, motors, or pumps. They have a rest position and can safely switch, conduct, and interrupt currents under normal operating conditions, as well as in overload situations. The double-break contacts interrupt the circuit at two points simultaneously, reducing contact wear, improving arc suppression during switching, and thus ensuring a particularly long service life.

Nominal voltage	72 V
Current type	DC

Release time	20 ... 50 ms
Pick-up voltage	≤ 0.70 U_N
Pick-up time	15 ... 45 ms
Operating voltage range	0.70 ... 1.25 U_N
Breakdown voltage	VnomMin breakdown voltage @It=1 mAMax breakdown voltage @It=1 mA24 Vnom40.0 V44.5 V36 Vnom60.0 V66.4 V 72 Vnom122.0 V135.0 V110 Vnom 178.0 V197.0 V
Power consumption DC	2.6 W
Release voltage	≥ 0.1 U_N
TVS Diode failure mode	defined short cut
TVS Diode type	Bidirectional surge TVS

Housing material	PA 6
Ingress Protection	IP 20
Mounting	DIN rail
Operation Altitude	Max. 2 000 m
Operation temperature	-15 … 55 °C
Relative huminity, no condensation	95 %
Shock test	switched off: 10 g (Z and X axis) / switched on: 15 g (Z axis) and 2 g (X axis)
Storage temperature (no ice)	-40 ... 80 °C
Vibration test	switched off: 2 g (Z and X axis) / switched on: 3 g (Z axis) and 1 g (X axis)
Weight	135 g

Clearance of open contact	3.6
Overvoltage category	III
Pollution degree	3
Rated impulse withstand voltage open contact	4 kV / 1 min
Rated insulation voltage	440 V

Number of contacts	1 NO,1 NC

Approvals	CE,EAC,UKCA,Railway
Railway	EN 50155,EN 45545-2
Standards	IEC/EN 60947

Stripping Length control / main circuit	7 mm / 9 mm
Dual sleeve control / main circuit	1
Contact type control / main circuit	Screw connection, M3 / M3.5
Conductor cross section control / main circuit	2.5 mm² / 6 mm², use copper conductors only
Max. wire count control / main circuit	1
Nominal screw torque control / main circuit	0.6 Nm / 1.2 Nm
Screwdrive control / main circuit	PZ1 / PZ1
