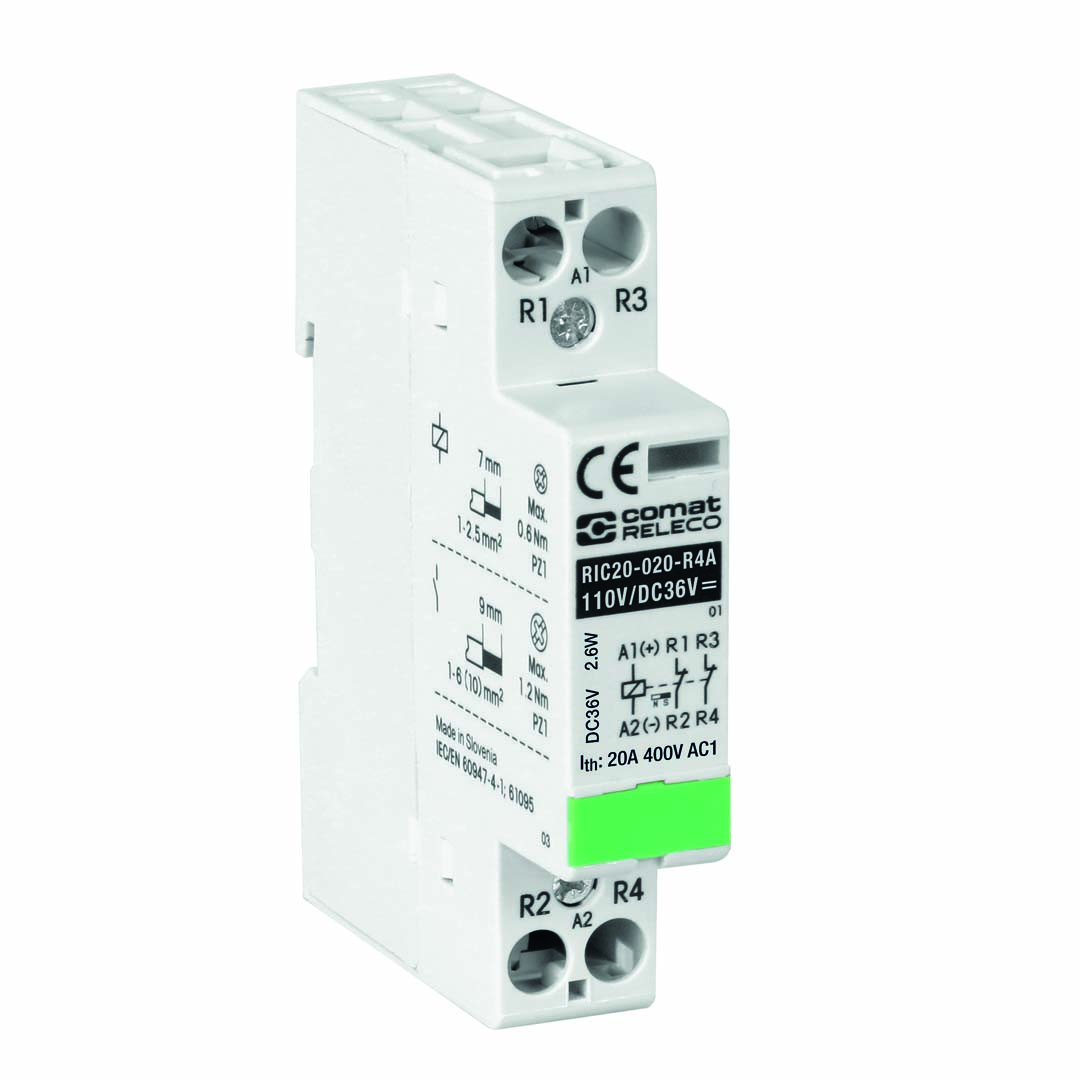

RIC20-020-R4A110V/DC36V
RIC installation contactors are versatile electromagnetic switching devices designed to reliably switch various types of electrical loads, such as lighting systems, heating, air conditioning, motors, or pumps. They have a rest position and can safely switch, conduct, and interrupt currents under normal operating conditions, as well as in overload situations. The double-break contacts interrupt the circuit at two points simultaneously, reducing contact wear, improving arc suppression during switching, and thus ensuring a particularly long service life.
| Nominal voltage | 36 V |
|---|---|
| Current type | DC |
| Release time | 20 ... 50 ms |
|---|---|
| Pick-up voltage | ≤ 0.70 UN |
| Pick-up time | 15 ... 45 ms |
| Operating voltage range | 0.70 ... 1.25 UN |
| Power consumption DC | 2.6 W |
| Release voltage | ≥ 0.1 UN |
| Housing material | PA 6 |
|---|---|
| Ingress Protection | IP 20 |
| Mounting | 35 mm rail |
| Mounting position | see installation instructions |
| Operation Altitude | Max. 2 000 m |
| Operation temperature | -40 ... 70 °C |
| Relative huminity, no condensation | 95 % |
| Spacer | Integrated |
| Storage temperature (no ice) | -40 ... 80 °C |
| Weight | 133 g |
| Clearance of open contact | 3.6 |
|---|---|
| Overvoltage category | III |
| Pollution degree | 3 |
| Rated impulse withstand voltage open contact | 4 kV / 1 min |
| Rated insulation voltage | 440 V |
| Number of contacts | 2 NC |
|---|
| Approvals | UKCA,CE,EAC,Railway |
|---|---|
| Railway | EN 50155,EN 45545-2 |
| Standards | IEC/EN 60947 |
| Stripping Length control / main circuit | 7 mm / 9 mm |
|---|---|
| Dual sleeve control / main circuit | 1 |
| Contact type control / main circuit | Screw connection, M3 / M3.5 |
| Conductor cross section control / main circuit | 2.5 mm2 / 6 mm2 |
| Max. wire count control / main circuit | 1 |
| Nominal screw torque control / main circuit | 0.6 Nm / 1.2 Nm |
| Screwdrive control / main circuit | PZ1 / PZ1 |
Helpful documents on the "RIC20-020-R4A110V/DC36V"
3D-models "RIC20-020-R4A110V/DC36V"
Documents "RIC20-020-R4A110V/DC36V"
| Nominal voltage | 36 V |
|---|---|
| Current type | DC |
| Release time | 20 ... 50 ms |
|---|---|
| Pick-up voltage | ≤ 0.70 UN |
| Pick-up time | 15 ... 45 ms |
| Operating voltage range | 0.70 ... 1.25 UN |
| Power consumption DC | 2.6 W |
| Release voltage | ≥ 0.1 UN |
| Housing material | PA 6 |
|---|---|
| Ingress Protection | IP 20 |
| Mounting | 35 mm rail |
| Mounting position | see installation instructions |
| Operation Altitude | Max. 2 000 m |
| Operation temperature | -40 ... 70 °C |
| Relative huminity, no condensation | 95 % |
| Spacer | Integrated |
| Storage temperature (no ice) | -40 ... 80 °C |
| Weight | 133 g |
| Clearance of open contact | 3.6 |
|---|---|
| Overvoltage category | III |
| Pollution degree | 3 |
| Rated impulse withstand voltage open contact | 4 kV / 1 min |
| Rated insulation voltage | 440 V |
| Number of contacts | 2 NC |
|---|
| Approvals | UKCA,CE,EAC,Railway |
|---|---|
| Railway | EN 50155,EN 45545-2 |
| Standards | IEC/EN 60947 |
| Stripping Length control / main circuit | 7 mm / 9 mm |
|---|---|
| Dual sleeve control / main circuit | 1 |
| Contact type control / main circuit | Screw connection, M3 / M3.5 |
| Conductor cross section control / main circuit | 2.5 mm2 / 6 mm2 |
| Max. wire count control / main circuit | 1 |
| Nominal screw torque control / main circuit | 0.6 Nm / 1.2 Nm |
| Screwdrive control / main circuit | PZ1 / PZ1 |
