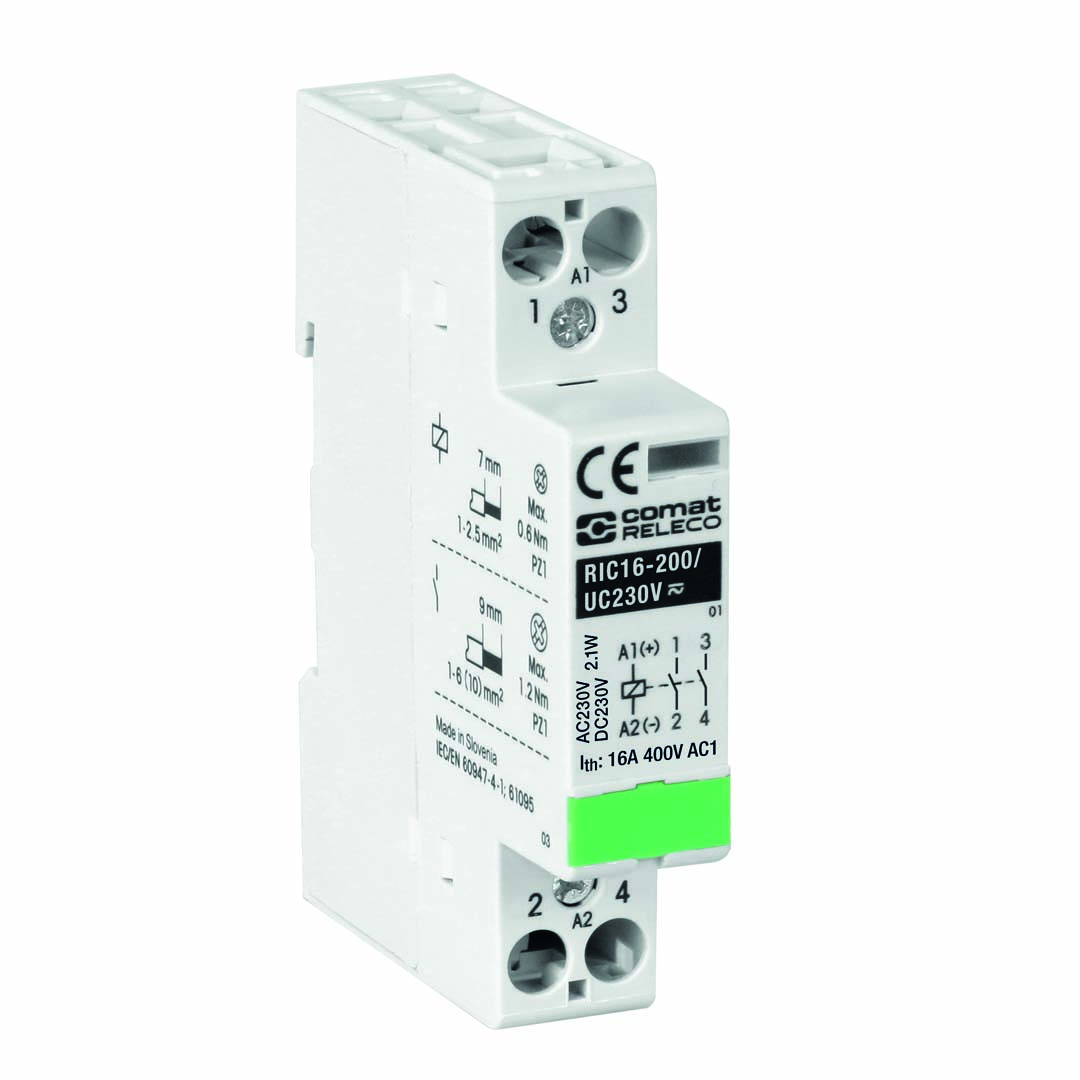

RIC16-200/UC230V
- 2 pole
- 2 NO contacts
- Contact material AgNi
- Max 16 A @ 230 V AC
- For installation in electrical distributor
- 2 NO contacts
- Contact material AgNi
- Max 16 A @ 230 V AC
- For installation in electrical distributor
ELDAS®:
507962000
| Current type | AC / DC (50 Hz) |
|---|---|
| Nominal voltage | 230 V |
| Frequency range | 40 ... 500 Hz |
|---|---|
| Operating voltage range | 0.85 ... 1.1 UN |
| Pick-up time | 15 ... 45 ms |
| Pick-up voltage | ≤ 0.85 UN |
| Power consumption AC / DC | 2.1 VA / 2.1 W |
| Release time | 20 ... 50 ms |
| Release voltage | ≥ 0.1 UN |
| Dimensions | 35 x 85 x 65.5 |
|---|---|
| Housing material | PA 6 |
| Ingress Protection | IP 20 |
| Mounting | 35 mm rail |
| Operation Altitude | Max. 2 000 m |
| Operation temperature | -25 … 70 °C |
| Relative huminity, no condensation | 95 % relative humidity |
| Shock test | switched off: 10 g (Z and X axis) / switched on: 15 g (Z axis) and 2 g (X axis) |
| Storage temperature (no ice) | -30 ... 80 °C |
| Vibration test | switched off: 2 g (Z and X axis) / switched on: 3 g (Z axis) and 1 g (X axis) |
| Weight | 130 g (1, 2 pole) / 170 g (4 pole) |
| Clearance of open contact | 3.6 |
|---|---|
| Overvoltage category | III |
| Pollution degree | 3 |
| Rated impulse withstand voltage open contact | 4 kV / 1 min |
| Rated insulation voltage | 440 V |
| Contact materials | AgNi |
|---|---|
| Electrical endurance at rated load AC-1 (cycles) | ≥ 200 000 |
| Electrical endurance at rated load AC-3 (cycles) | ≥ 300 000 |
| Electrical endurance at rated load DC-1 (cycles) | ≥ 100 000 |
| Inrush current | 50 A, 100 ms |
| Mechanical endurance (cycles) | ≥ 10 000 000 |
| Rated current AC-1 | 16 A |
| Rated current AC-3 | 4 |
| Rated load AC-1 single-phase 230 V | 3.5 kW |
| Rated load AC-1 three-phase 230 V | 6 kW |
| Rated load AC-1 three-phase 400 V | 10.5 kW |
| Rated load AC-3 single-phase 230 V | 1.1 (NO) / 0.55 (NC) kW |
| Rated load AC-3 three-phase 230 V | 1.5 kW |
| Rated load AC-3 three-phase 400 V | 3 kW |
| Rated voltage | 400 V AC |
| Recommended minimum contact load | 50 mA, 17 V |
| Switching frequency at rated load AC-1 (cycles / h) | ≤ 600 |
| Switching frequency at rated load AC-3 (cycles / h) | ≤ 600 |
| Switching frequency at rated load DC-1 (cycles / h) | ≤ 300 |
| Approvals | UKCA,CE,EAC |
|---|---|
| Standards | IEC/EN 60947,IEC/EN 61095 |
| Conductor cross section control / main circuit | 2.5 mm2 / 6 mm2 |
|---|---|
| Contact type control / main circuit | Screw connection, M3 / M3.5 |
| Nominal screw torque control / main circuit | 0.6 Nm / 1.2 Nm |
| Screwdrive control / main circuit | PZ1 / PZ1 |
| Stripping Length control / main circuit | 7 mm / 9 mm |
