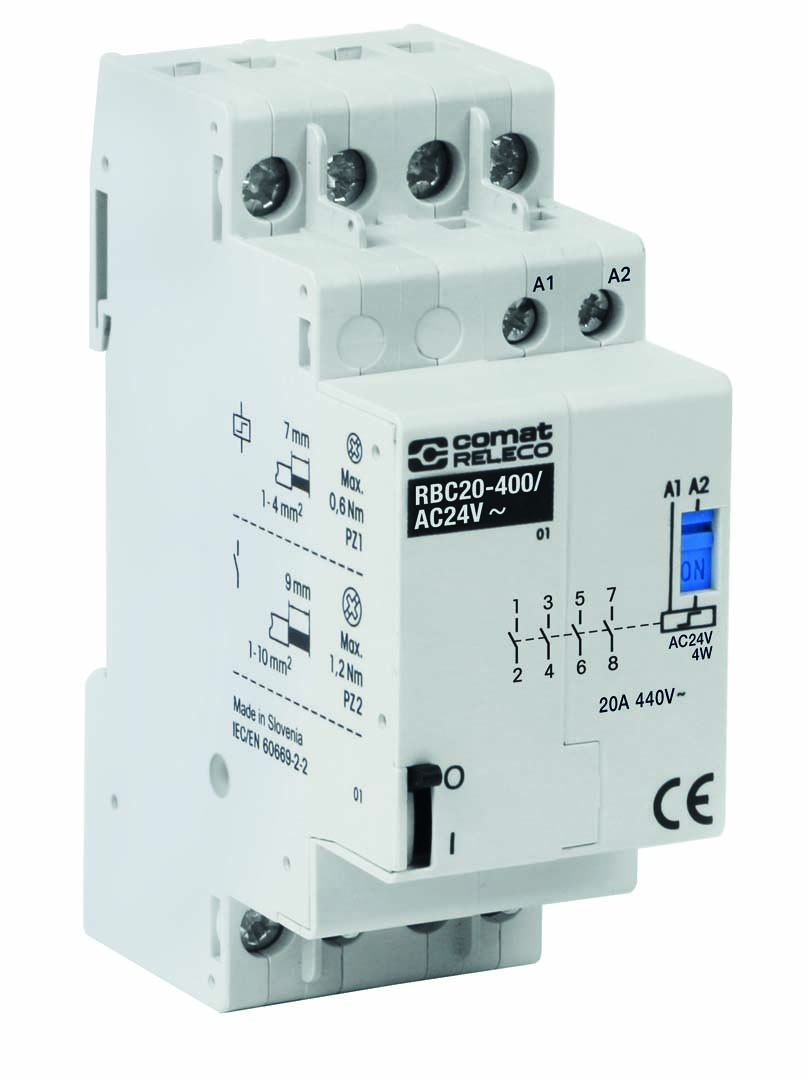

RBC20-400/AC24V
- 4 pole
- 4 NO contacts
- Contact material AgNi
- Max 20 A @ 400 V AC
- For installation in electrical distributor
- Bistable coil
- 4 NO contacts
- Contact material AgNi
- Max 20 A @ 400 V AC
- For installation in electrical distributor
- Bistable coil
ELDAS®:
507963254
| Current type | AC (50 Hz) |
|---|---|
| Nominal voltage | 24 V |
| Frequency range | 50 / 60 Hz |
|---|---|
| Maximal impulse duration | ≤ 15 / min |
| Maximal number of impulses | ≤ 60 / min |
| Minimal impulse duration at 0.9 Un | 100 ms |
| Minimal impulse duration at rated voltage Un | 50 ms |
| Minimal pause beteen two impulses | 150 ms |
| Operating voltage range | 0.9 … 1.1 UN |
| Pick-up time | 5 ... 35 ms |
| Pick-up voltage | ≤ 0.75 UN |
| Power consumption AC / DC | 9 VA / 4 W |
| Release time | 5 ... 35 ms |
| Release voltage | ≥ 0.1 UN |
| Ambient temperature operation 2 devices, 1 spacer | 40 ... 55 °C |
|---|---|
| Ambient temperature operation 3 devices, 1 spacer | -15 ... 40 °C |
| Housing material | PA 6 |
| Ingress Protection | IP 20 |
| Mounting | DIN rail |
| Operation Altitude | Max. 2 000 m |
| Relative huminity, no condensation | 95 % |
| Shock test | 15 g (Z axis) |
| Storage temperature (no ice) | -30 … 80 °C |
| Vibration test | 3 g (Z axix) |
| Weight | 135 g |
| Clearance of open contact | > 3 mm |
|---|---|
| Overvoltage category | III |
| Pollution degree | 3 |
| Rated impulse withstand voltage open contact | 4 kV / 1 min |
| Rated insulation voltage | 440 V |
| Contact materials | AgNi |
|---|---|
| Electrical endurance at rated load AC-1 (cycles) | ≥ 100 000 |
| Electrical endurance at rated load AC-3 (cycles) | ≥ 100 000 |
| Electrical endurance at rated load DC-1 (cycles) | ≥ 100 000 |
| Inrush current | 50 A, 100 ms / 180 A, 300 µs |
| Mechanical endurance (cycles) | ≥ 1 000 000 |
| Rated current AC-1 | 20 A |
| Rated load AC-1 | 4.4 kW |
| Rated load AC-3 | 0.55 kW |
| Rated voltage | 400 V AC |
| Recommended minimum contact load | 100 mA, 10 V |
| Switching frequency at rated load AC-1 (cycles / h) | ≤ 600 |
| Switching frequency at rated load AC-3 (cycles / h) | ≤ 600 |
| Switching frequency at rated load DC-1 (cycles / h) | ≤ 300 |
| Approvals | UKCA,CE,EAC |
|---|---|
| Standards | IEC/EN 60947,IEC/EN 61095 |
| Conductor cross section control / main circuit | 4 mm2 / 10 mm2 |
|---|---|
| Contact type control / main circuit | Screw connection, M3 / M4 |
| Nominal screw torque control / main circuit | 0.6 Nm / 1.2 Nm |
| Screwdrive control / main circuit | PZ1 / PZ2 |
| Stripping Length control / main circuit | 7 mm / 9 mm |
