PUSH-IN SOCKET FAMILY
ComatReleco push-in socket family

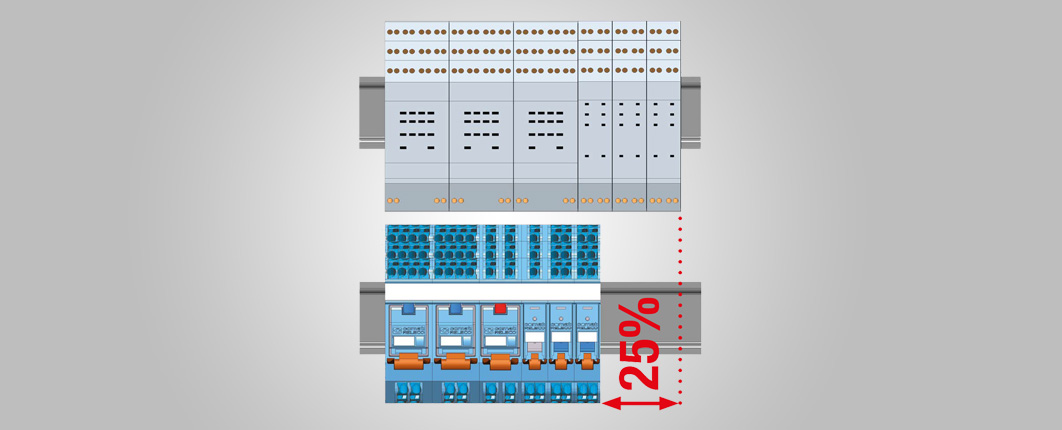

Save space
Average space saving of 25 % compared to similar solutions on the market!

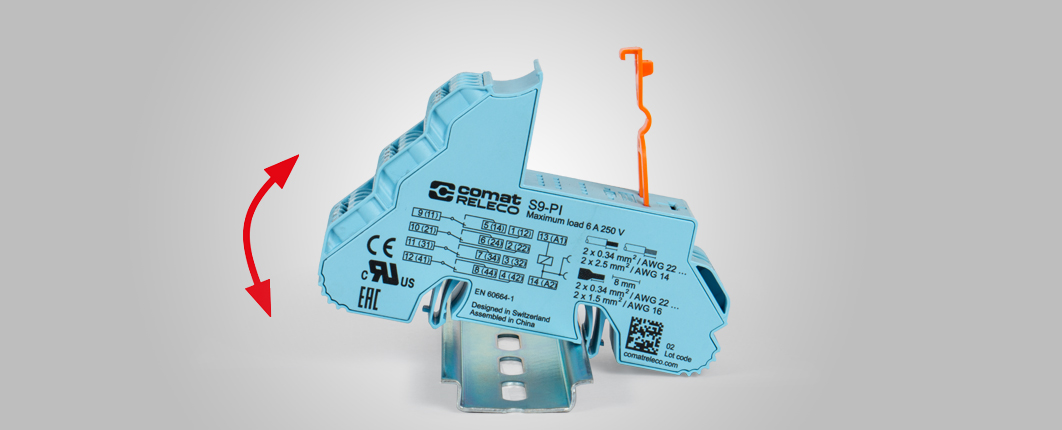

1-click installation without tools
Tool-free and quick 1-click installation on TH35 DIN rails

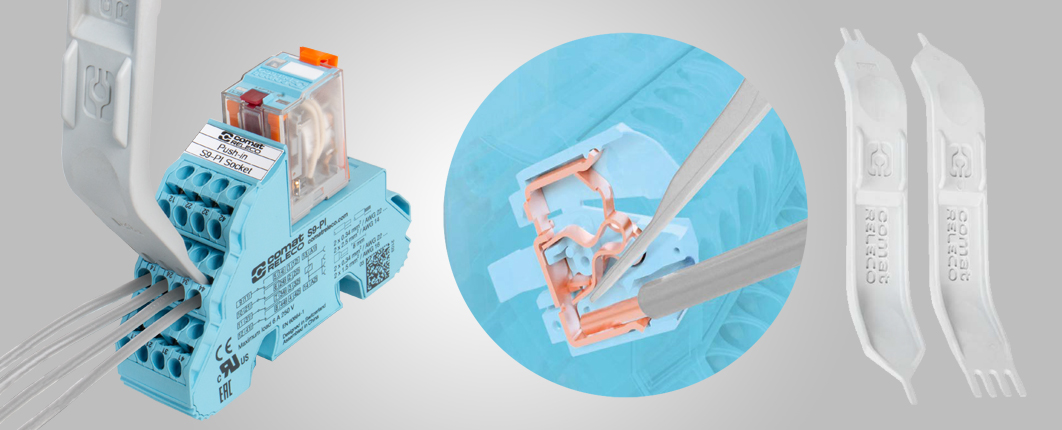

Simultaneous unlocking of the wiring with the OT-PI kit or alternatively.....

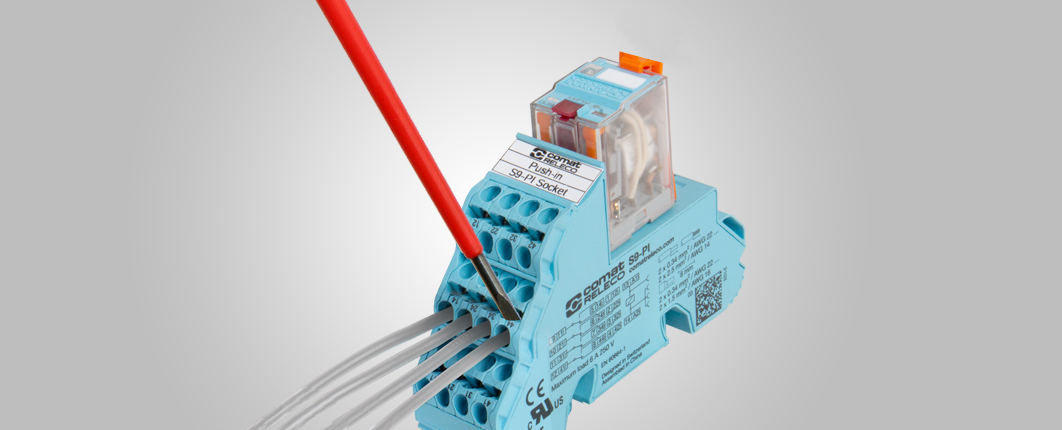

........Single release with an actuating tool in accordance with ISO 2380-1 Shape A.

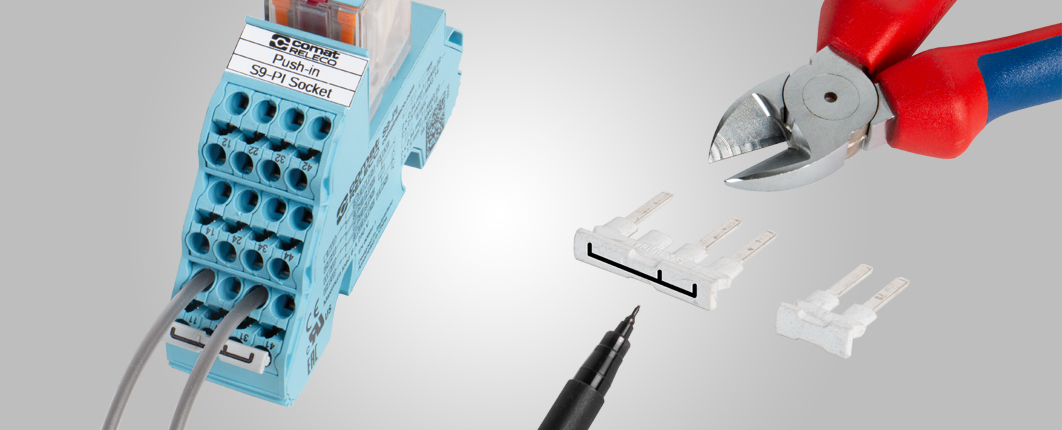

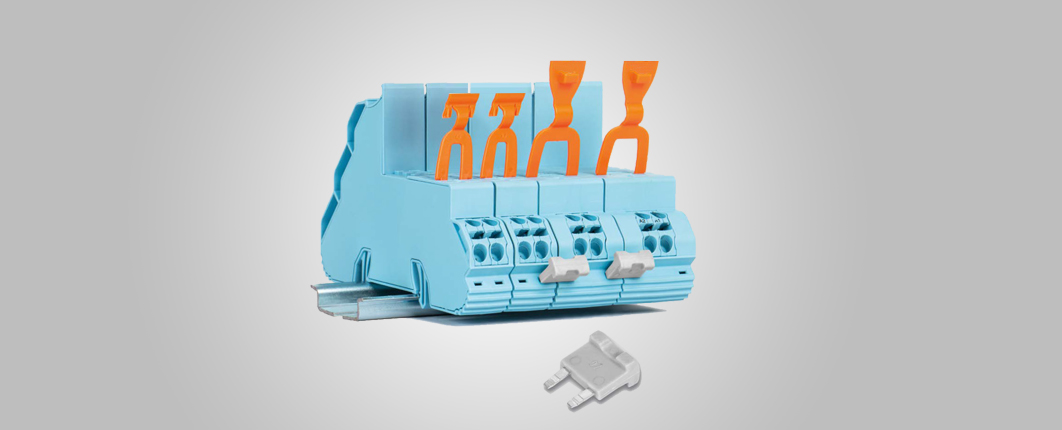

Standardised bridges
A standardised A2 jumper for all sockets in the Push-in family
Standardised 2- and 4-pole potential jumpers for the main circuit. The 4-way jumper is configurable, the PIN assignment can be labelled

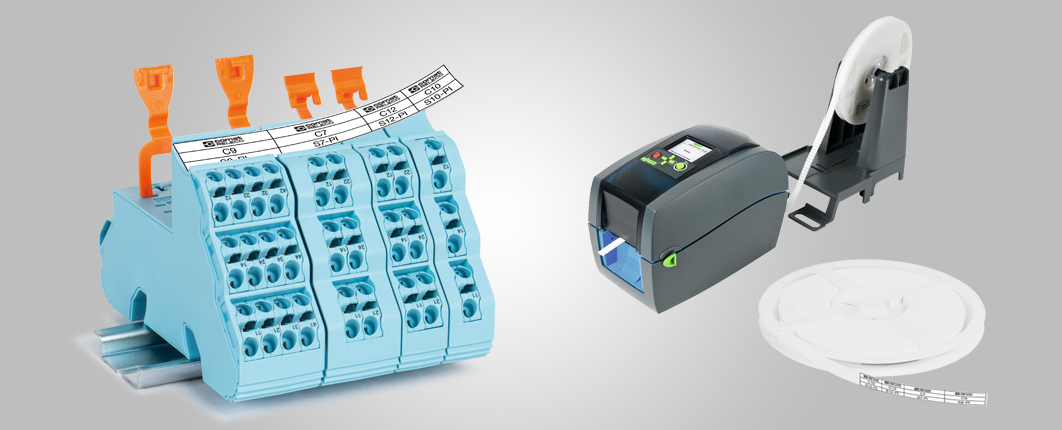

Snap-in mechanism for 11 mm labelling strips
Snap-in mechanism for standard 11 mm labelling strips, printable with commercially available printers. Predefined print layouts are available for download below.

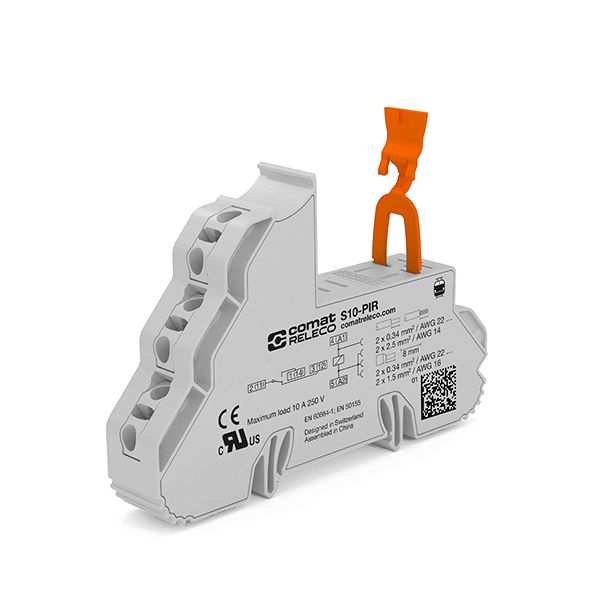

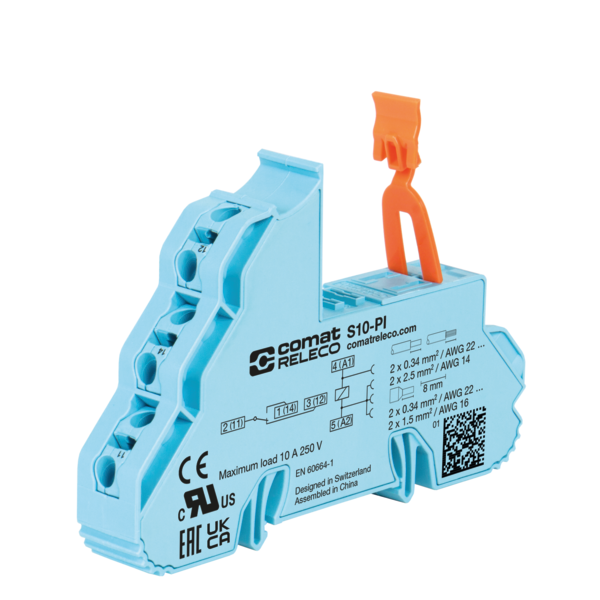

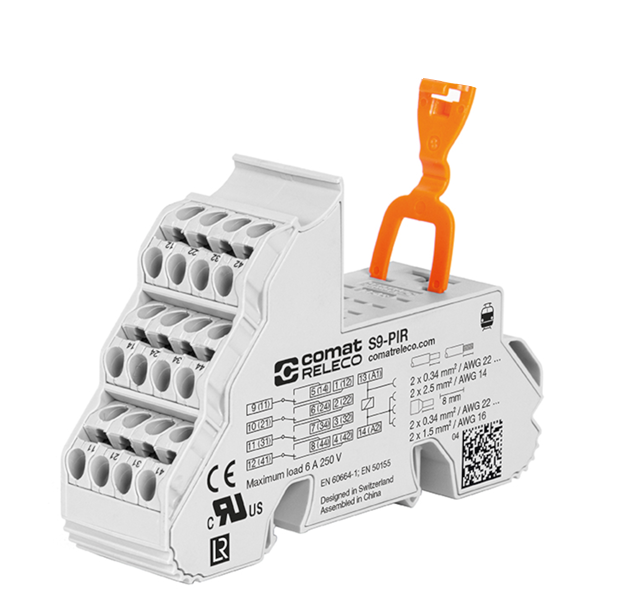

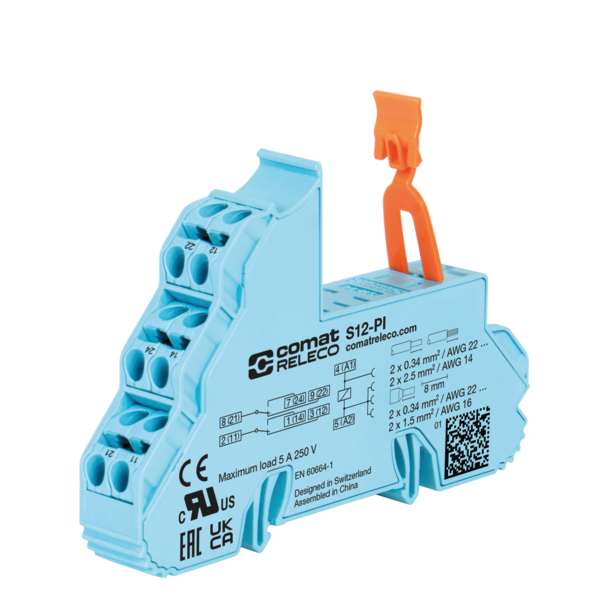

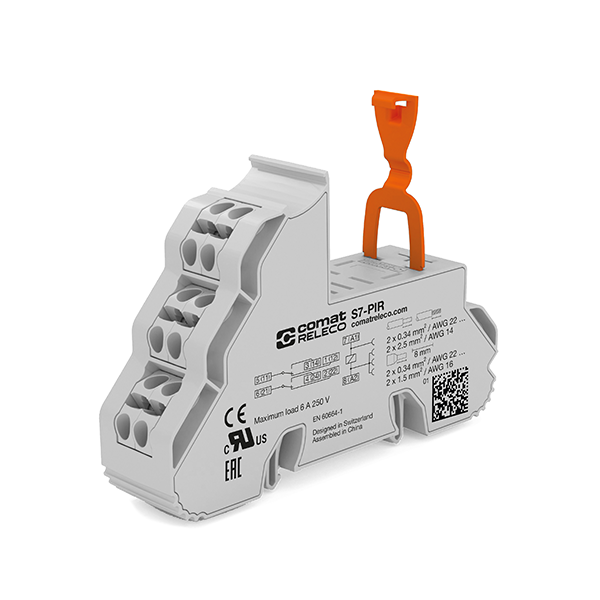

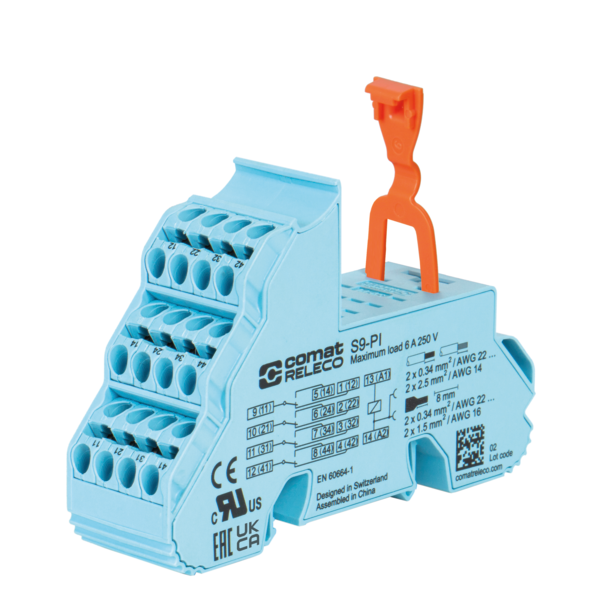

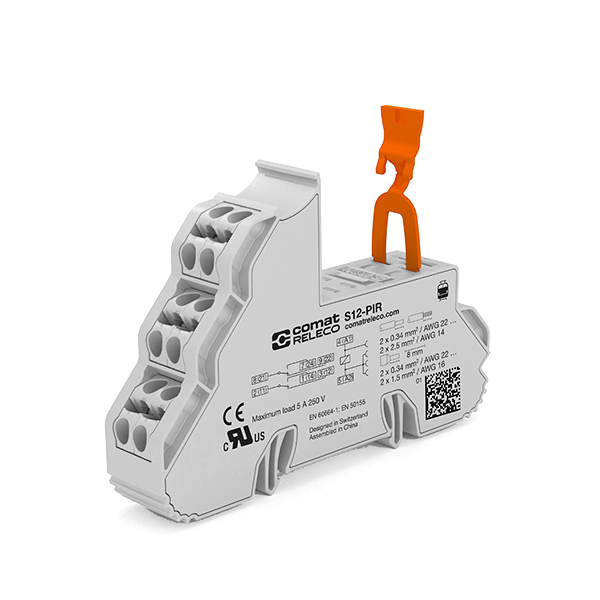

The push-in relay socket family comprises 4 different socket types each for automation and industry as well as for railway applications
Push-in relay socket available as a set
The push-in relay sockets from ComatReleco are also available as SETs with selected industrial relays. This simplifies procurement and stock-keeping. The sets are based on the signal and power relays that are tried and tested in the market and used by the majority. This not only saves you time during installation and wiring, but also when fitting the components in the control cabinet.
Compact.Practical.Unique!
These are also the SETs, they combine the unique advantages of the ComatReleco
push-in socket family with the outstanding properties of the ComatReleco
industrial relays.

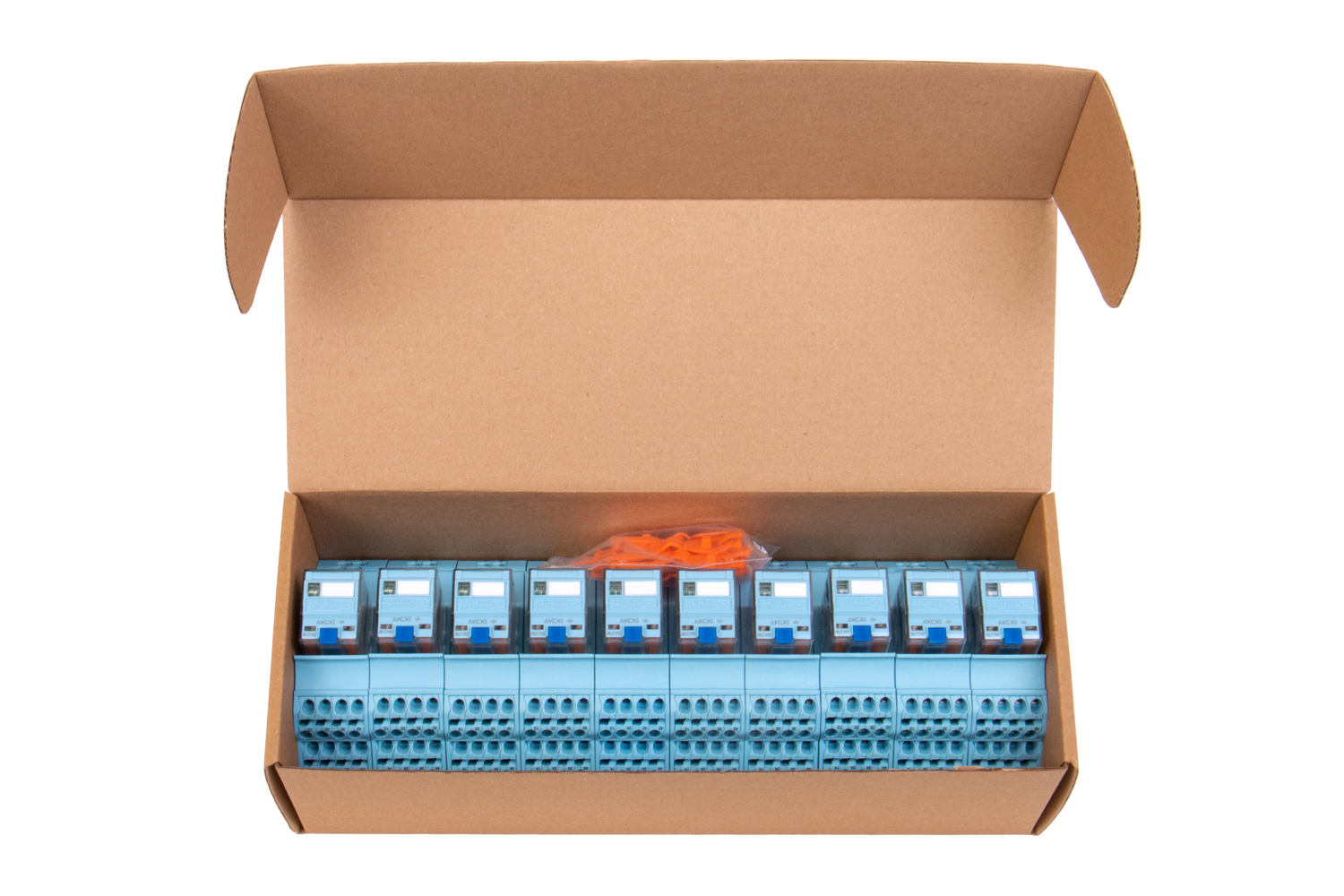

Push-in industrial relay sets available in packaging units of 10 units each.
