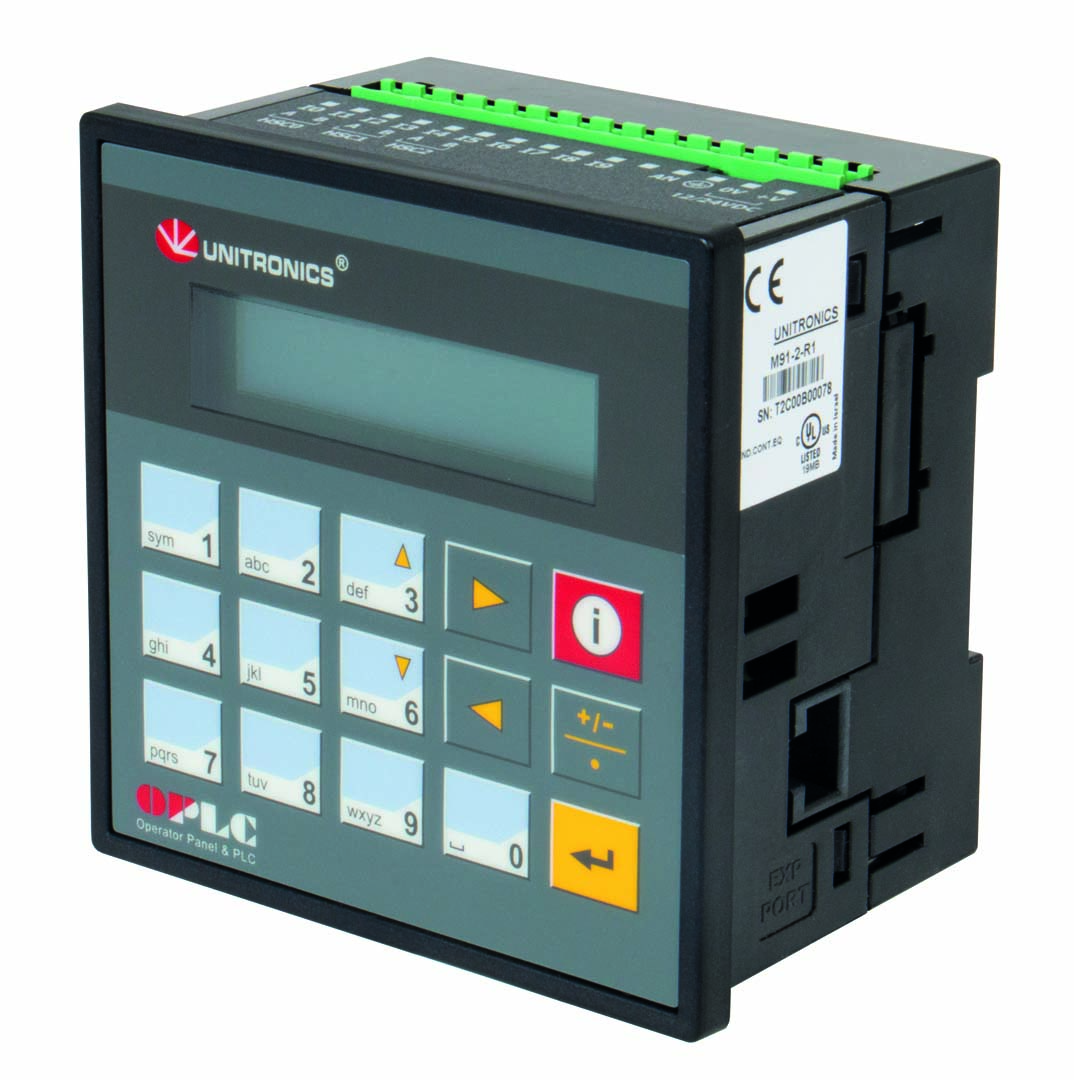

M91-2-R2C
- Display: STN LCD, 2 lines x 16 characters
- Power supply: 12…24 V DC
- Digital inputs: 10
- Digital outputs: 6
- Transistor outputs: 6
- Analog outputs: 2
- Communication: RS232 / RS485 / Ethernet / Modbus / OPC
- Power supply: 12…24 V DC
- Digital inputs: 10
- Digital outputs: 6
- Transistor outputs: 6
- Analog outputs: 2
- Communication: RS232 / RS485 / Ethernet / Modbus / OPC
ELDAS®:
| Technical approvals, conformities | CE,cULus |
|---|
| Current type | DC |
|---|---|
| Nominal voltage | 12 V-24 V |
| Back-up battery | CR2450N, 7 years typical at 25 °C, battery back-up for RTC and system data, including variable data |
|---|---|
| Ingress Protection | IP 20 / NEMA1 (DIN rail mounted), IP 65 / NEMA4X (Panel mounted) |
| Mounting | DIN rail, Panel with brackets |
| Operation temperature | 0 … 50 °C / 32 ... 122 °F |
| Relative huminity, no condensation | 10 ... 95 % |
| Storage temperature (no ice) | -20 … 60 °C / -4 ... 140 °F |
| Display | STN LCD, 2 lines x 16 characters |
|---|---|
| Number of definable displays | 80 |
| Number of keys | 15 |
| High level treshold digital inputs | 8 V DC | 17 V DC |
|---|---|
| Nominal voltage digital inputs | 12 V DC | 24 V DC |
| Number of analog inputs* | 1, 10 Bit, 0-10 V, 0-20 mA, 4-20 mA |
| Number of digital inputs | 10 |
| Number of encoder inputs* | 3, 16 Bit, 10 kHz |
| Contact materials | AgNi + 5 μ Au | AgSnO2 |
|---|
| Database size | 1024 integers (indirect access) |
|---|---|
| Execution time | 12 µs / Bit |
| Memory card | Micro SD-Card |
| Number of ladder code memory (virtual) | 36 |
| Number of memory bits (coils) | 256 |
| Number of memory integers (registers) | 256 |
| Number of timers | 64 |
| Number of analog outputs | 2 |
|---|---|
| Number of relay outputs | 6 |
| Number of transistor outputs | 6 |
| Rated current | 5 |
| Rated voltage AC | 230 V |
| Frequency range | Rated frequency |
|---|---|
| Nominal voltage | 12 … 24 V DC |
| Operating voltage range | 10.2 … 28.8 V DC |
| Power consumption AC / DC | - / 6.24 W |
| Approvals | UKCA,CE,cULus |
|---|
