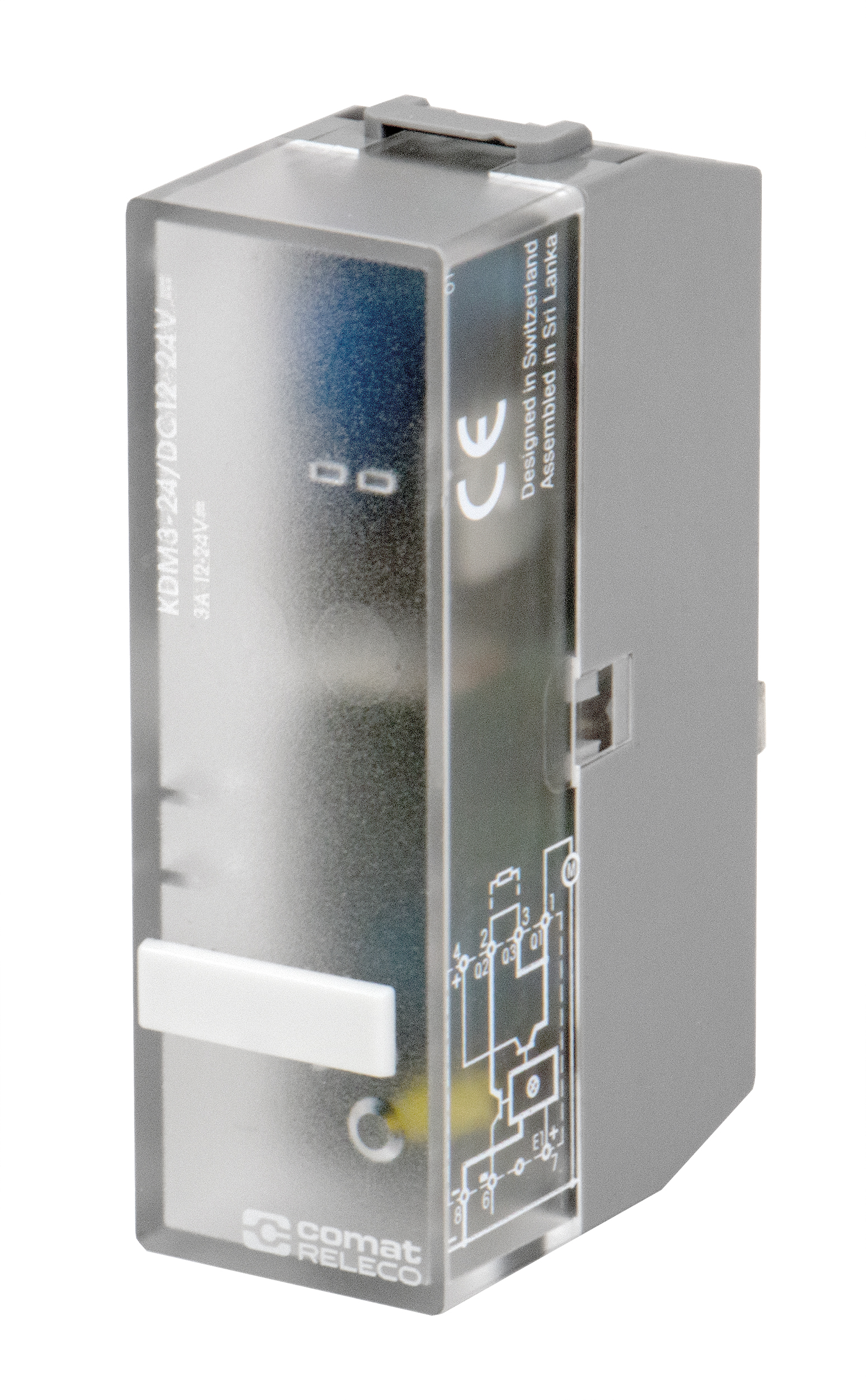

KDM3-24/DC12-24V
- Solid state
- Mosfet
- 3 A @ 24 V DC
- Mosfet
- 3 A @ 24 V DC
ELDAS®:
The KDM3-24 is suitable for controlling DC motors from 12 - 24V and braking them automaticallythe motor is short-circuited immediately after switching off. For DC motors with permanent magnets, this also results in a stopping point.The outputs are protected against overload and short circuit and are suitable for all types of load (e.g. lamps, magnetic couplings, motors) without any additional wiring.
| Current type | DC |
|---|---|
| Nominal voltage | 12 V-24 V |
| Housing material | Noryl |
|---|---|
| Ingress Protection | IP 40 |
| Mounting | Faston |
| Operation temperature | -25 … 60 °C |
| Storage temperature (no ice) | -40 … 85 °C |
| Weight | 27 g |
| Housing material | Noryl |
|---|---|
| Ingress Protection | IP 40 |
| Mounting | Faston |
| Operation Position | any |
| Operation temperature | -25 … 60 °C |
| Relative huminity, no condensation | 95% |
| Storage temperature (no ice) | -40 … 85 °C |
| Weight | 27 g |
| Maximum inrush current | 20 A, 1 s |
|---|---|
| Output type | PNP Transistor |
| Output voltage range | 10 … 32 V DC |
| Rated current | 3 A |
| Nominal voltage | 12 … 24 V DC |
|---|---|
| Operating voltage range | 9 … 28 V DC |
| Power consumption 12 V DC | 36 mW |
| Power consumption 24 V DC | 24 mW |
| Approvals | UKCA,CE,EAC |
|---|---|
| Standards | EN 50081-1,EN 50082-2,IEC/EN 61000-4-5 |
Approvals

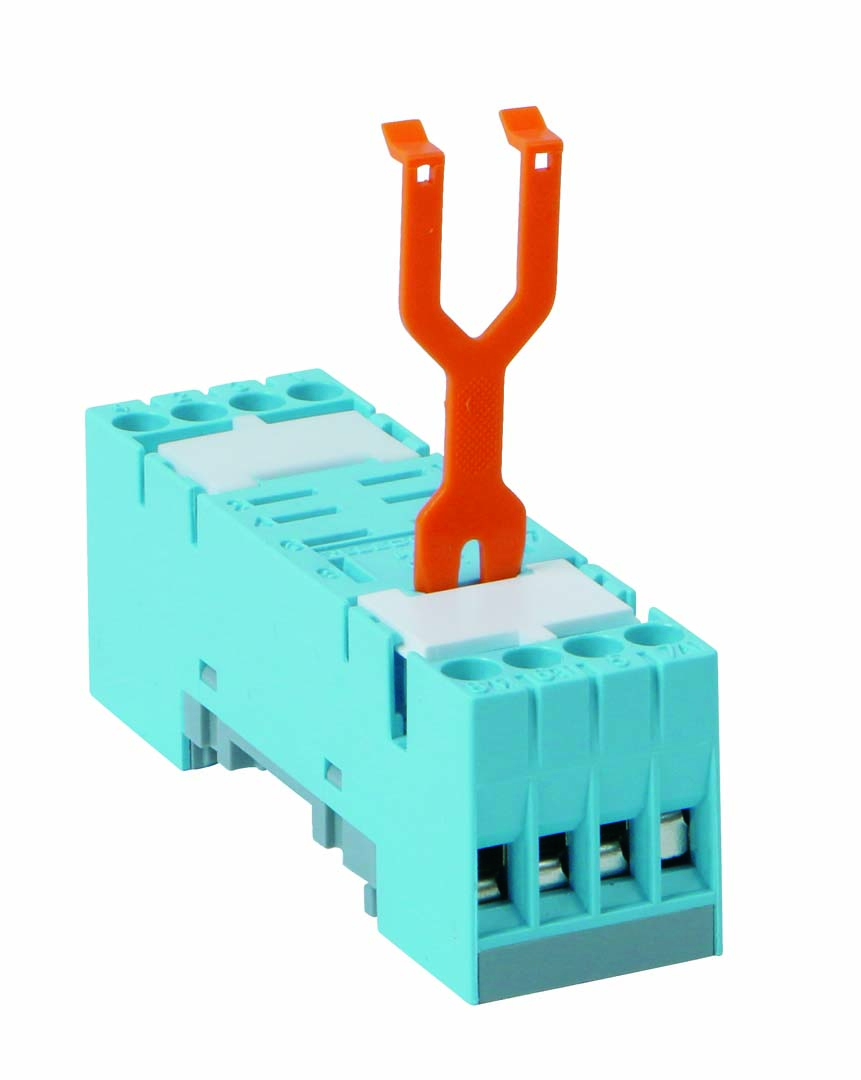

Accessories
