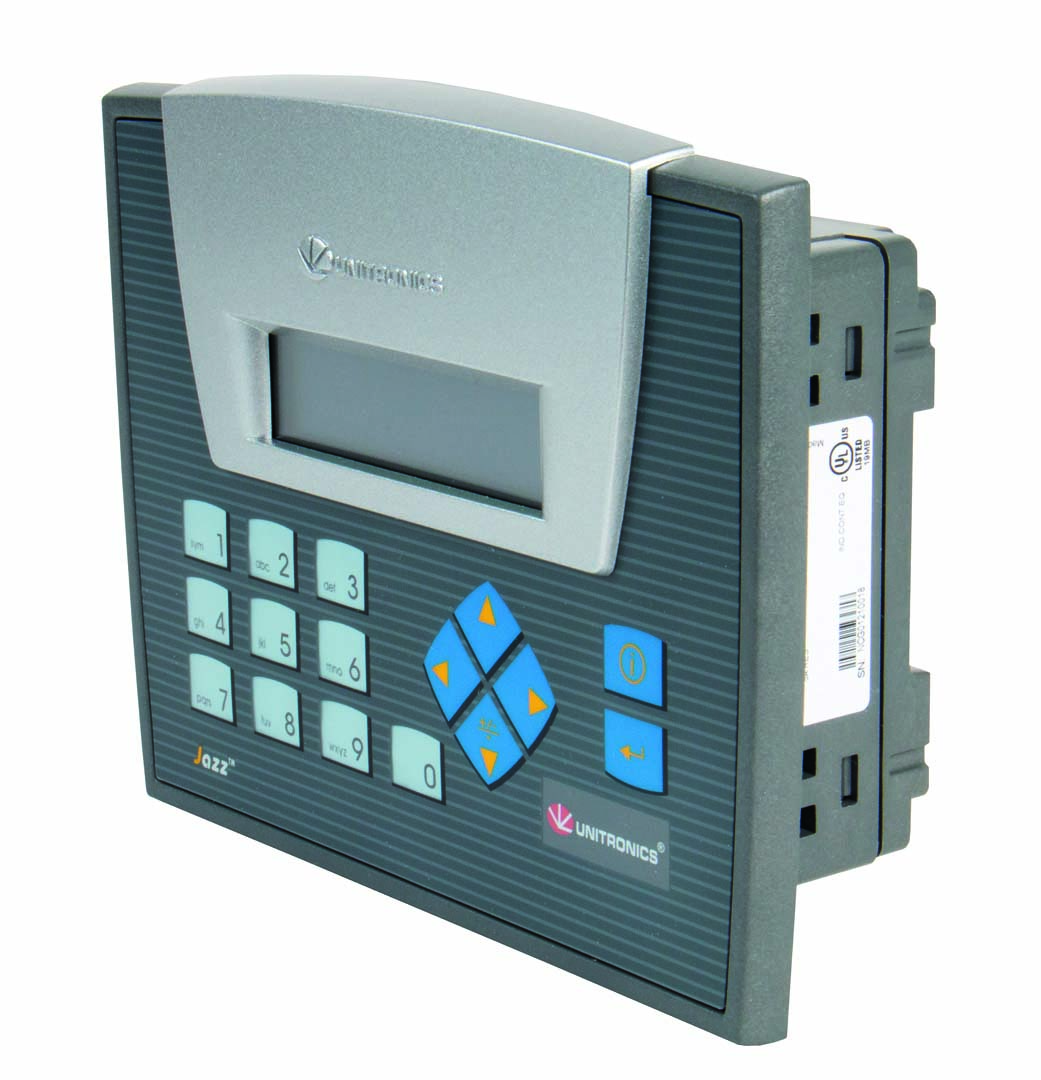

JZ20-R10
- Text-based HMI
- Keyboard with 16 buttons
- with up to 40 onboard I/Os.
- Keyboard with 16 buttons
- with up to 40 onboard I/Os.
ELDAS®:
| Current type | DC |
|---|---|
| Nominal voltage | 24 V |
| Back-up battery | 7 years typical at 25 °C, battery back-up for RTC and system data, including variable data. |
|---|---|
| Ingress Protection | IP 20 / NEMA1 (DIN rail mounted), IP 65 / NEMA4X (Panel mounted) |
| Mounting | DIN rail, Panel with brackets |
| Operation temperature | 0 … 50 °C / 32 ... 122 °F |
| Relative huminity, no condensation | 10 ... 95 % |
| Storage temperature (no ice) | -20 … 60 °C / -4 ... 140 °F |
| Display | STN LCD, 2 lines x 16 characters |
|---|---|
| Number of keys | 16 |
| High level treshold digital inputs | 17 V DC |
|---|---|
| Nominal voltage digital inputs | 24 V DC |
| Number of digital inputs | 6 |
| Number of encoder inputs* | 2 |
| Execution time | 1.5 µs / Bit |
|---|---|
| Number of ladder code memory (virtual) | 48 |
| Number of memory bits (coils) | 256 |
| Number of memory integers (registers) | 64 |
| Number of relay outputs | 4 |
|---|---|
| Rated current | 5 |
| Rated voltage AC | 250 V |
| Nominal voltage | 24 V DC |
|---|---|
| Operating voltage range | 20.4 … 28.8 V DC |
| Power consumption AC / DC | - / 2.4 W |
| Approvals | CE,cULus,UKCA,EAC |
|---|
