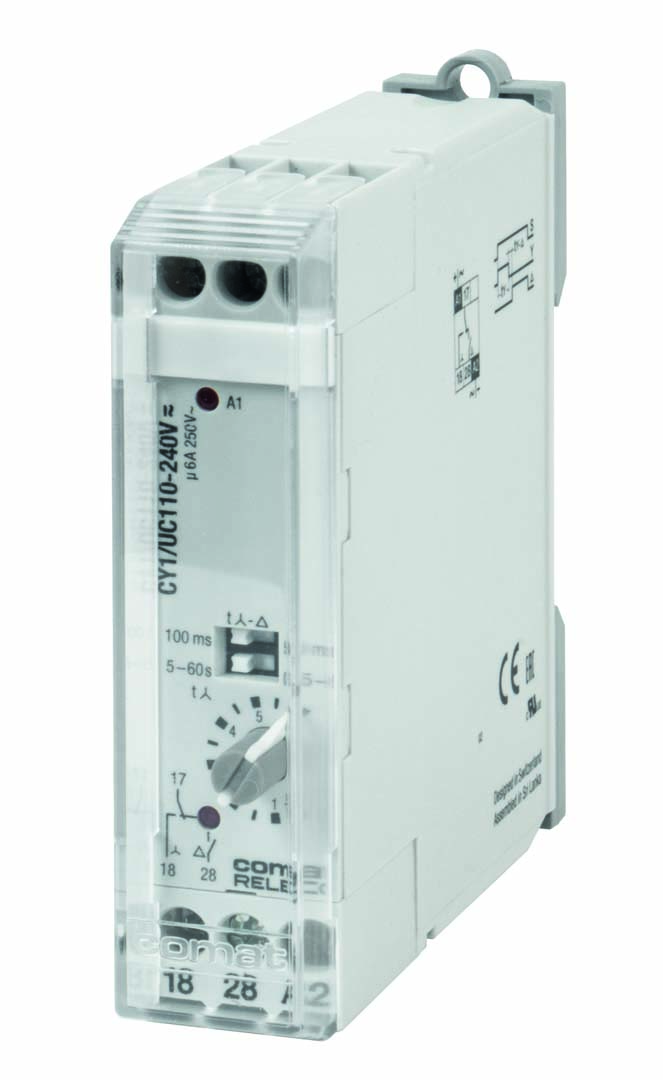

CY1/UC110-240V

- Star-Delta
- Changeover and NO contact, safety interlock
- Contact material AgNi
- 6 A @ 250 V AC / 6 A @ 30 V DC

ELDAS®: 528780182

The time relay CY controls the starting of three-phase motors in combination with other contactors.
The wiring of the three-phase motor is switched from star to three-phase in order to reduce the starting currents.
The start-up time t_Y can be set between 0.5 s and 1 min.
The switchover time t_U can be set between 50 ms / 100 ms or 15 ms / 100 ms.
The status of the control (UB) is displayed via LEDs.

Current type	AC / DC (50 Hz)
Nominal voltage	110 V-240 V

Current consumption on supply A1-A2 AC / DC	10 mA / 10 mA
Frequency range	0; 40 ... 60 Hz
Nominal voltage	110 ... 240 V AC / DC
Operating voltage range	90 … 265 V AC/DC
Power consumption AC / DC	1 VA / 1 W

Conductor cross section control / main circuit	2.5 mm², 2 x 1.5 mm²
Housing material	PC
Ingress Protection	IP 20
Nominal screw torque control / main circuit	0.5 Nm
Operation temperature	-25 … 60 °C
Storage temperature (no ice)	-40 … 85 °C
Weight	76 g

Overvoltage category	III
Pollution degree	2
Rated test voltage control / main circuit	2 kV rms / 1 min
Rated test voltage main / main circuit	2 kV rms / 1 min
Rated test voltage open contact	1 kV rms / 1 min

Contact materials	AgNi
Inrush current	30 A, 10 ms
Mechanical endurance (cycles)	30 000 000
Minimum load	10 mA, 10 V
Number of contacts	1 NO + 1 CO
Rated current	6 A
Rated load AC-1	1500 VA
Rated voltage	250 V
