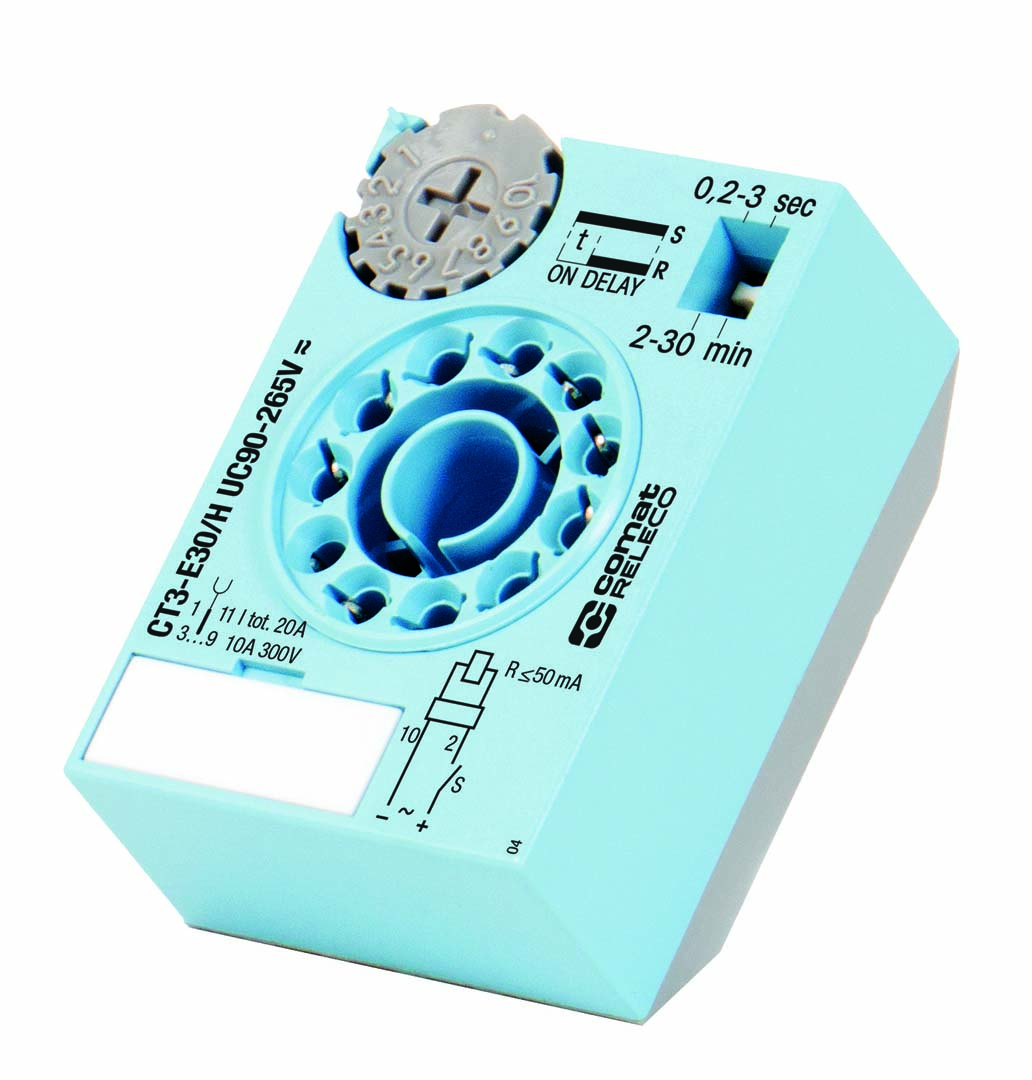

CT3-E30/H UC90-265V
- 3-pole
- 10 A @ 230 V AC
- Time function E (on delay)
- 10 A @ 230 V AC
- Time function E (on delay)
ELDAS®:
528779182
| Current type | AC / DC (50 Hz) |
|---|---|
| Nominal voltage | 90 V-265 V |
| Current consumption on input control B1 AC / DC | - / 0.2 mA | 0.2 mA / 0.2 mA |
|---|---|
| Current consumption on supply A1-A2 AC / DC | 12 mA / 12 mA | 6 mA / 6 mA |
| Frequency range | DC | 0; 40 … 60 Hz |
| Nominal voltage | 9,5 … 18 V AC / DC | 20 … 65 V AC / DC |
| Operating voltage range | 80 … 150 V AC / DC | 150 … 265 V AC / DC |
| Power consumption AC / DC | 0.2 VA / 0.4 W | 0.4 VA / 0.4 W |
| Threshold voltage on input control B1 AC / DC | 9 V / 9 V | 18 V / 18 V |
| Current consumption on input control B1 AC / DC | 0.2 mA/ 0.2 mA | 0.2 mA/ 0.2 mA | |
|---|---|
| Current consumption on supply A1-A2 AC / DC | 2 mA / 2 mA | 2 mA / 2 mA | |
| Frequency range | 0; 40 … 60 Hz | 0; 40 … 60 Hz | |
| Nominal voltage | 9,5 … 18 V AC / DC | 20 … 65 V AC / DC |
| Operating voltage range | 9,5 … 17 V AC / DC | 20 … 65 V AC / DC |
| Power consumption AC / DC | 0.3 VA / 0.4 W | 0.5 VA / 0.5 W |
| Threshold voltage on input control B1 AC / DC | 75 V / 75 V | 140 V / 140 V |
| Current consumption on input control B1 AC / DC | 0.2 mA / 0.2 mA |
|---|---|
| Current consumption on supply A1-A2 AC / DC | 2 mA / 2 mA |
| Frequency range | 0; 40 … 60 Hz |
| Nominal voltage | 90 … 265 V AC / DC |
| Operating voltage range | 90 … 265 V AC / DC |
| Power consumption AC / DC | 0.5 VA / 0.5 W |
| Threshold voltage on input control B1 AC / DC | 75 V / 75 V |
| Conductor cross section control / main circuit | 2.5 mm2 |
|---|---|
| Housing material | PC |
| Ingress Protection | IP 20 |
| Nominal screw torque control / main circuit | 0.5 Nm |
| Operation temperature | -25 … 60 °C |
| Storage temperature (no ice) | -40 … 85 °C |
| Weight | 35 g |
| Approvals | UKCA,CE,cURus,EAC |
|---|---|
| Standards | IEC/EN 61812-1 |
| Timing range | 0.2 s … 3 s / 2 s … 30 s / 0.2 min … 3 min / 2 min … 30 min |
|---|---|
| Timing scale | 3 s / 30 s / 3 min / 30 min |
