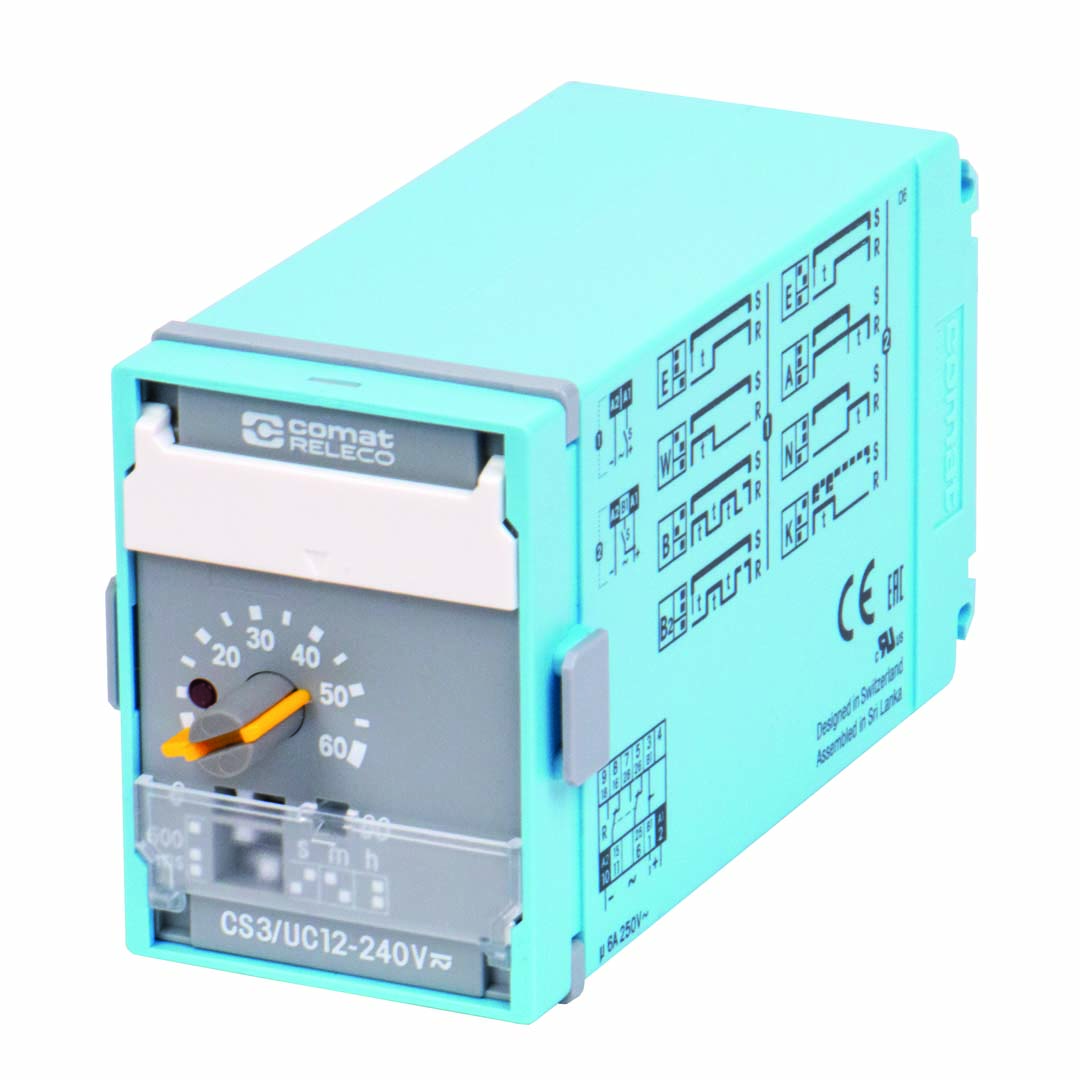

CS3/UC12-240V
- 2 pole
- Changeover contacts
- Contact material AgNi
- 8 A @ 250 V AC
- Pluggable
- Time functions: E, W, B, B2, A, E, K, N
- Changeover contacts
- Contact material AgNi
- 8 A @ 250 V AC
- Pluggable
- Time functions: E, W, B, B2, A, E, K, N
ELDAS®:
528734402
| Current type | AC / DC (50 Hz) |
|---|---|
| Nominal voltage | 12 V-240 V |
| Current consumption on input control B1 AC / DC | 6 mA / 2 mA |
|---|---|
| Current consumption on supply A1-A2 AC / DC | 50 mA / 7 mA |
| Frequency range | 0; 45 ... 63 Hz |
| Nominal voltage | 12 … 240 V AC / DC |
| Operating voltage range | 10 … 265 V AC / DC |
| Power consumption AC / DC | 1.4 VA / 0.8 W |
| Threshold voltage on input control B1 AC / DC | 6.5 V / 7 V |
| Housing material | PC |
|---|---|
| Ingress Protection | IP 20 |
| Operation temperature | -25 … 60 °C |
| Storage temperature (no ice) | -40 … 85 °C |
| Weight | 75 g |
| Overvoltage category | III |
|---|---|
| Pollution degree | 2 |
| Rated test voltage control / main circuit | 2.5 kV rms / 1 min |
| Rated test voltage main / main circuit | 2.5 kV rms / 1 min |
| Rated test voltage open contact | 1 kV rms / 1 min |
| Contact materials | AgNi |
|---|---|
| Inrush current | 10 A, 10 ms |
| Mechanical endurance (cycles) | 30 000 000 |
| Minimum load | 10 mA, 10 V |
| Number of contacts | 2 CO |
| Rated current | 6 A |
| Rated load AC-1 | 1500 VA |
| Rated voltage | 250 V |
| Approvals | UKCA,CE,cURus,EAC |
|---|---|
| Standards | IEC/EN 61812-1 |
| Timing range | 50 ms … 0.6 s / 0.5 s … 6 s / 5 s … 60 s / 0.5 min … 6 min / 5 min … 60 min / 0.5 h ... 6 h / 5 h … 60 h |
|---|---|
| Timing scale | 0.6 s / 6 s / 60 s / 6 min / 60 min / 6 h / 60 h |
Approvals
3D-models "CS3/UC12-240V"

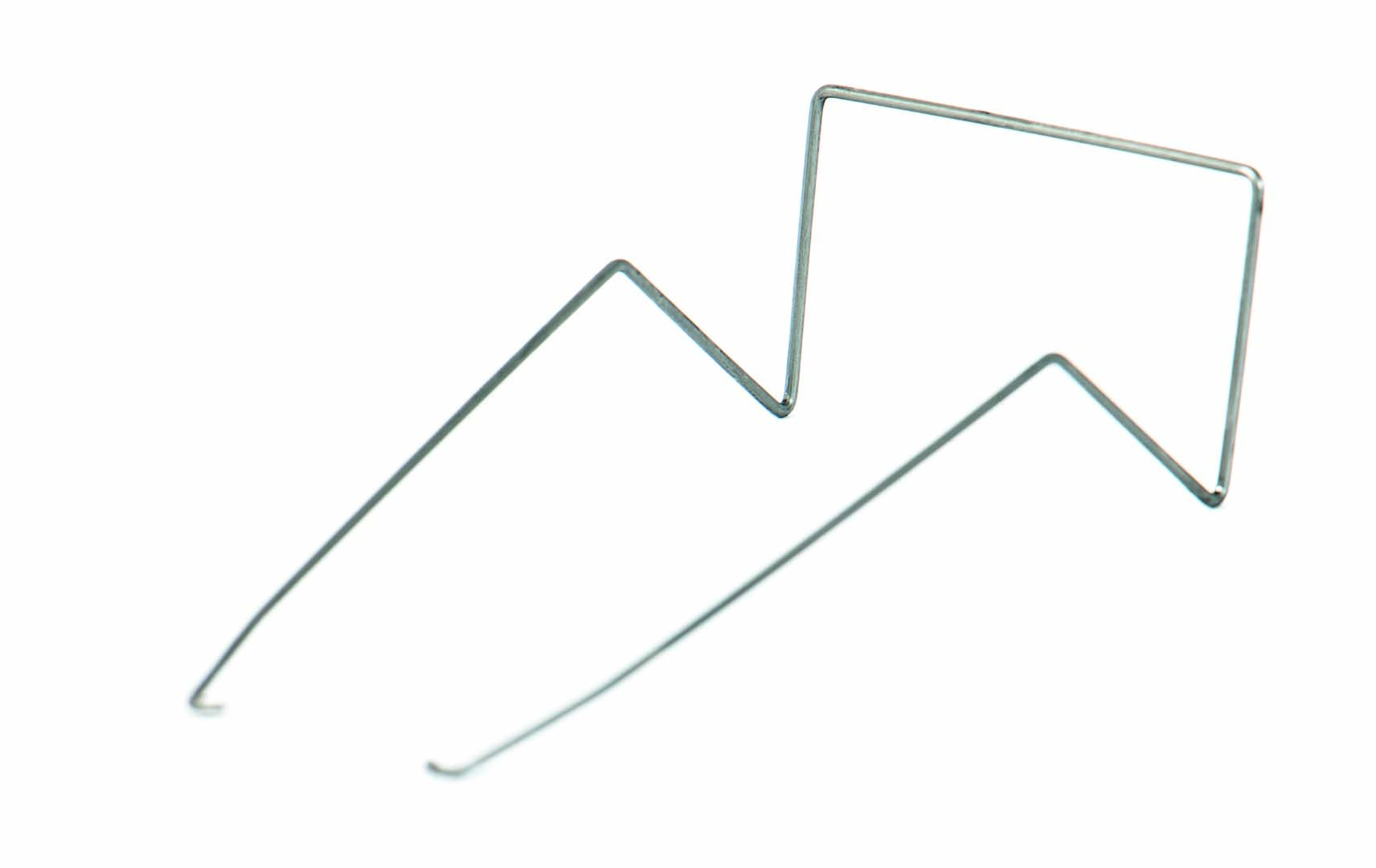

Accessories
