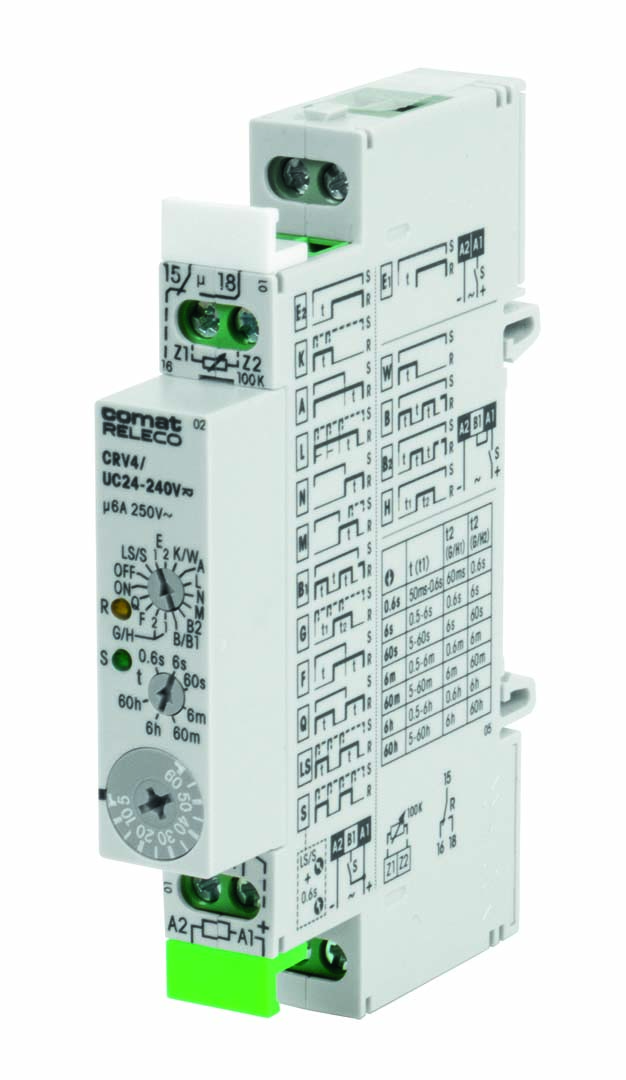

CRV4/UC24-240V
- 1 pole
- Changeover contact
- Contact material AgNi
- 6 A @ 250 V AC
- For installation in electrical distributor
- Time functions: E, A, K, N, M, B1, F, G, Q, L, S, LS, W, B, B2, H
- Changeover contact
- Contact material AgNi
- 6 A @ 250 V AC
- For installation in electrical distributor
- Time functions: E, A, K, N, M, B1, F, G, Q, L, S, LS, W, B, B2, H
ELDAS®:
505728465
| Current type | AC / DC (50 Hz) |
|---|---|
| Nominal voltage | 24 V-240 V |
| Current consumption on input control B1 AC / DC | 4 mA / 7 mA |
|---|---|
| Current consumption on supply A1-A2 AC / DC | 6 mA / 6 mA |
| Frequency range | 0; 40 ... 60 Hz |
| Nominal voltage | 24 … 240 V AC / DC |
| Operating voltage range | 19.2 … 250 V AC / DC |
| Power consumption AC / DC | 0.55 VA / 0.55 W |
| Threshold voltage on input control B1 AC / DC | 14.5 V / 17.5 V |
| Nominal screw torque control / main circuit | 0.5 Nm |
|---|
| Housing material | PC |
|---|---|
| Ingress Protection | IP 20 |
| Mounting | DIN-Rail (IEC 60715) |
| Mounting position | Any |
| Operation Position | Any |
| Operation temperature | -40 … 70 °C |
| Relative huminity, no condensation | 10 ... 95 % |
| Storage temperature (no ice) | -40 … 85 °C |
| Weight | 50 g |
| Overvoltage category | III |
|---|---|
| Pollution degree | 2 |
| Rated test voltage control / main circuit | 2 kV rms / 1 min |
| Rated test voltage open contact | 1 kV rms / 1 min |
| Contact materials | AgNi |
|---|---|
| Inrush current | 15 A, 10 ms |
| Mechanical endurance (cycles) | 30 000 000 |
| Minimum load | 10 mA, 10 V |
| Number of contacts | 1 CO |
| Rated current | 6 A |
| Rated load AC-1 | 1500 VA |
| Rated voltage | 250 V |
| Approvals | CE,EAC,cURus,UKCA |
|---|---|
| Standards | IEC/EN 61812-1 |
| Timing range | t (t1) 50 ms … 0.6 s / 0.5 s … 6 s / 5 s … 60 s / 0.5 min … 6 min / 5 min … 60 min / 0.5 h … 6 h / 5 h … 60 h t2 (G/H 1) 60 ms / 0.6 s / 6 s / 0.6 min / 6 min / 0.6 h / 6 h t2 (G/H 2) 0.6 s / 6 s / 60 s / 6 min / 60 min / 6 h / 60 h |
|---|---|
| Timing scale | 0.6 s / 6 s / 60 s / 6 min / 60 min / 6 h / 60 h |
| Conductor cross section control / main circuit | 2.5 mm2, 2 x 1 mm2 |
|---|---|
| Nominal screw torque control / main circuit | 0.5 Nm |
| Stripping Length control / main circuit | 8 m |
