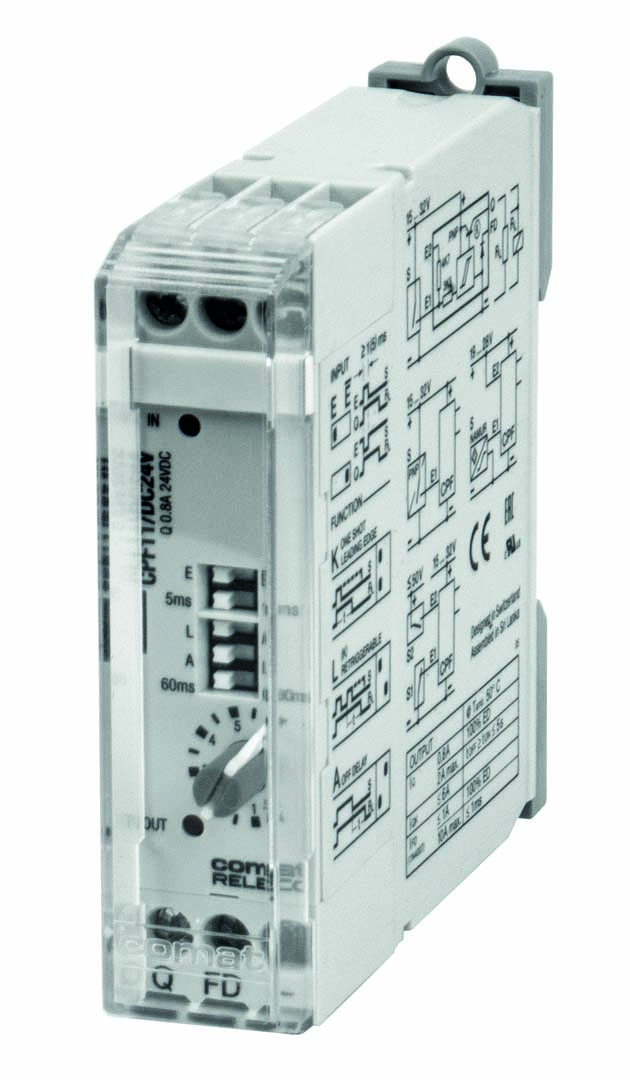

CPF11/DC24V
- 1 pole
- Pulse extension
- PNP transistor
- 2 A @ 32 V DC
- Time functions: A, K, L
- Pulse extension
- PNP transistor
- 2 A @ 32 V DC
- Time functions: A, K, L
ELDAS®:
528735121
| Current type | DC |
|---|---|
| Nominal voltage | 24 V |
| Current consumption on input control B1 AC / DC | E1: 5 mA @ 24 V; E2: 1.8 mA @ 24 V |
|---|---|
| Current consumption on supply A1-A2 AC / DC | - / 16 mA |
| Frequency range | DC |
| Nominal voltage | 24 V DC |
| Operating voltage range | 15 … 32 V DC |
| Power consumption AC / DC | - / 0.4 W |
| Threshold voltage on input control B1 AC / DC | E1: 10 V; E2: 16 V |
| Ambient temperature operation derated power | -25 … 60 °C (IN 0.7 A) |
|---|---|
| Conductor cross section control / main circuit | 2.5 mm2, 2 x 1.5 mm2 |
| Housing material | PC |
| Ingress Protection | IP 20 |
| Nominal screw torque control / main circuit | 0.5 Nm |
| Operation temperature | -25 … 50 °C |
| Storage temperature (no ice) | -40 … 85 °C |
| Weight | 60 g |
| Overvoltage category | III |
|---|---|
| Pollution degree | 2 |
| Electrical endurance at rated load DC-1 (cycles) | ∞ |
|---|---|
| Inrush current | 2 A, 5 s |
| Number of outputs | 1 NO |
| Output type | PNP Transistor |
| Output voltage range | 10 … 32 V (Potential of +) |
| Rated current | 0.8 A |
| Rated load DC | 0.8 A, 32 V |
| Typ. leakage current | 1 µA |
| Approvals | UKCA,CE,EAC,cURus |
|---|---|
| Standards | IEC/EN 61812-1 |
| Timing functions | Impulsformung (K),Impulsformung | Retrigger (L),Ausschaltverzögerung (A) |
|---|---|
| Timing range | 5 ms … 60 ms / 50 ms … 600 ms |
| Timing scale | 60 ms / 600 ms |
