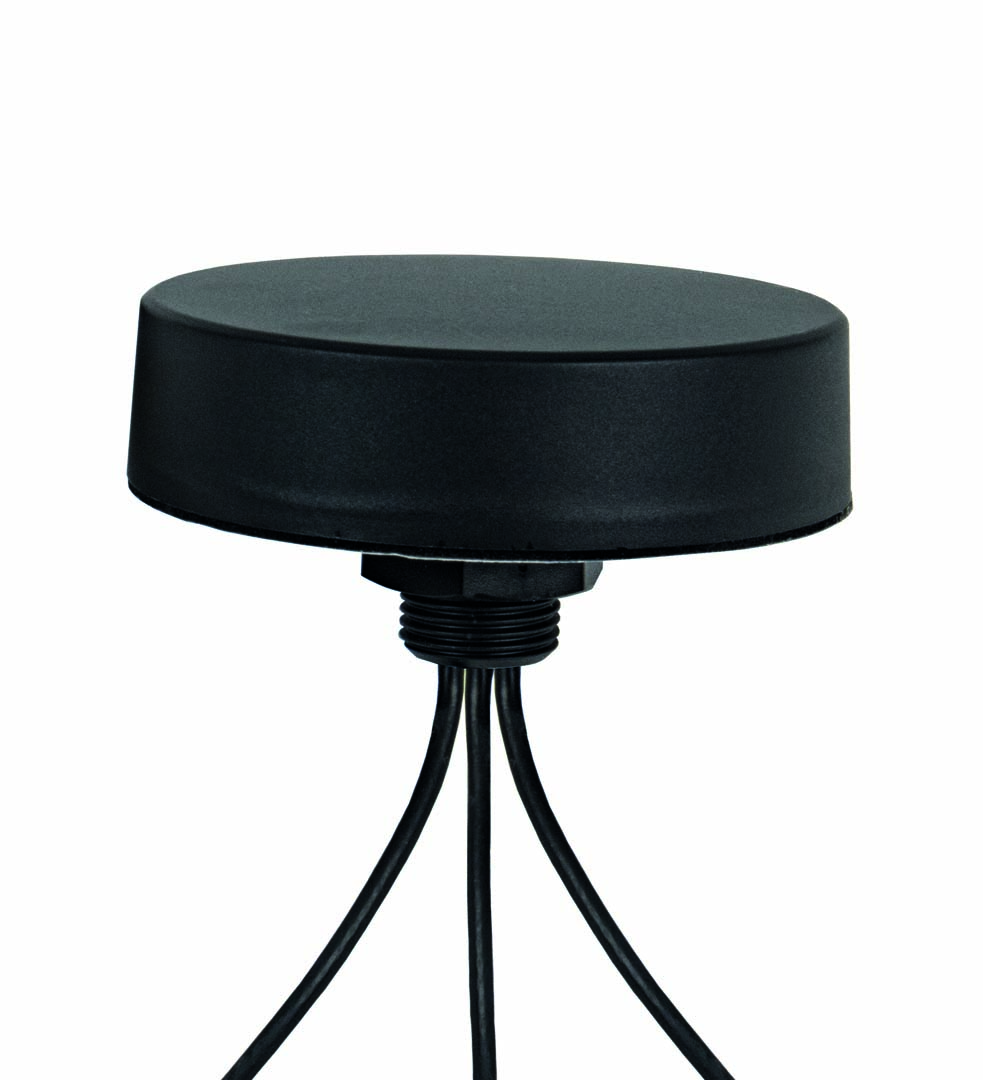

CMS-ANT-PUCK-GPS/EXT-3M
GPS puck antenna for outdoor use
ELDAS®:
505799982
Outdoor antenna CMS-ANT-PUCK/GPS/EXT-3M
For CMS-10R communication system, with connection cable 3 m, connector type SMA male, suitable for housing mounting (hole Ø 19 mm, thickness ≤ 8 mm), IP66, Ø 80×21.5 mm
For CMS-10R communication system, with connection cable 3 m, connector type SMA male, suitable for housing mounting (hole Ø 19 mm, thickness ≤ 8 mm), IP66, Ø 80×21.5 mm
| Operation | for outdoor use |
|---|
| Housing material | ASA |
|---|---|
| Ingress Protection | IP 66 / IK 07 |
| Mounting | Panel mount 19 mm |
| Operation temperature | -40 ... +85 °C / -40 ... 185 °F |
| Weight | 200 g |
| Approvals | EAC |
|---|
Approvals
3D-models "CMS-ANT-PUCK-GPS/EXT-3M"
