CMS-ANT-PUCK/EXT-0.5M

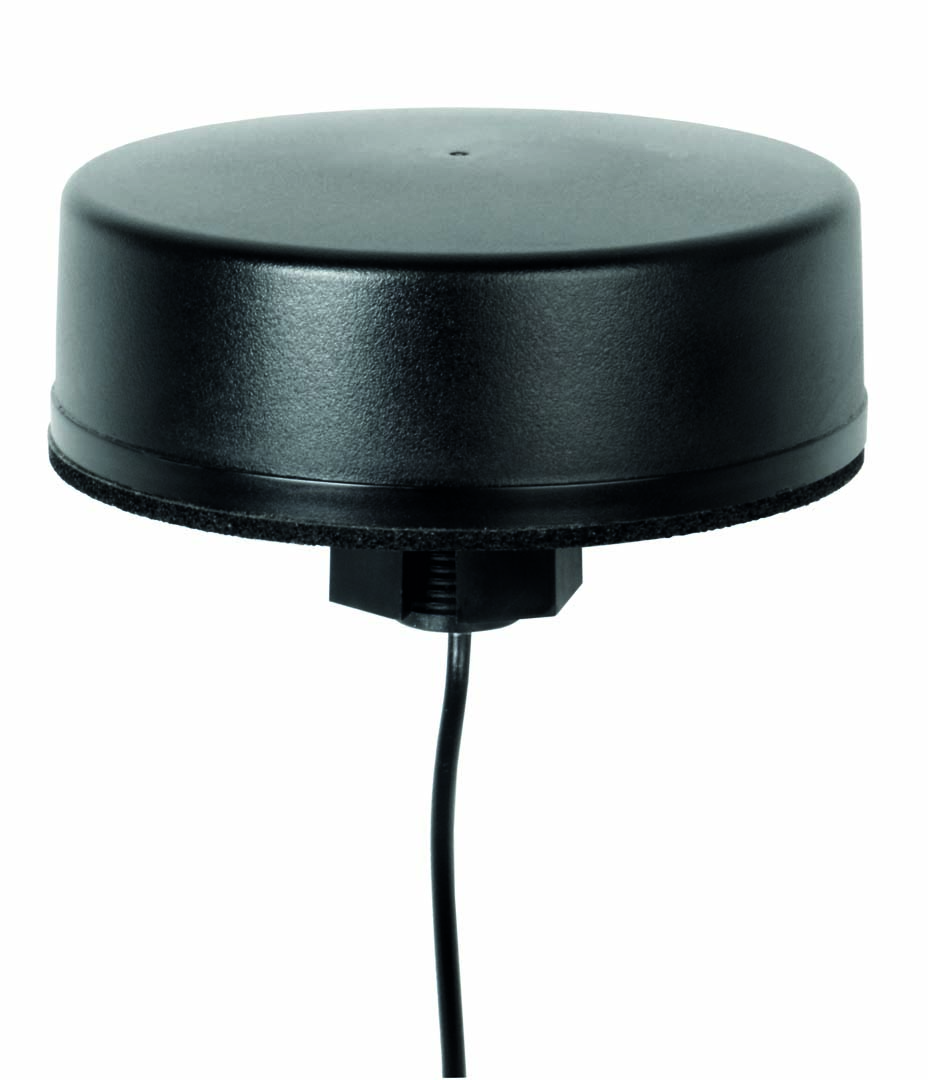

Puck antenna for outdoor use
ELDAS®:
505800902
Outdoor antenna CMS-ANT-PUCK/EXT-0.5M
For CMS-10R communication system, with connection cable 0.5 m, connector type SMA male, suitable for housing mounting (hole Ø 19 mm, thickness ≤ 8 mm), IP66, Ø 80×21.5 mm
For CMS-10R communication system, with connection cable 0.5 m, connector type SMA male, suitable for housing mounting (hole Ø 19 mm, thickness ≤ 8 mm), IP66, Ø 80×21.5 mm
| Operation | for outdoor use |
|---|
| Ingress Protection | IP 67 |
|---|---|
| Mounting | Panel mount. Requires a 19 mm / 3/4” hole. |
| Operation temperature | -40 ... 85 °C / -40 ... 185 °F |
| Storage temperature (no ice) | -40 ... 85 °C / -40 ... 185 °F |
| Weight | 135 g |
| Approvals | EAC |
|---|
Approvals
3D-models "CMS-ANT-PUCK/EXT-0.5M"
