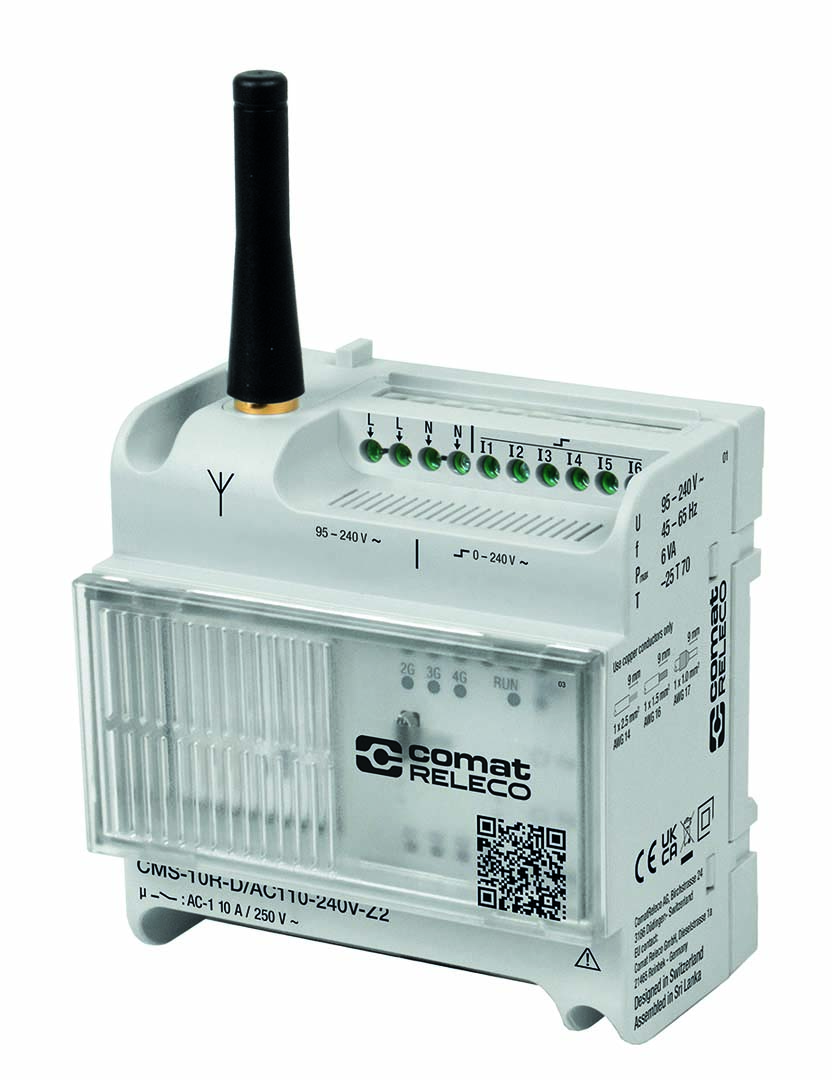

CMS-10R-D/AC110-240V-Z2

- For use in 4G, 3G, 2G mobile networks
- Zone 2: Europe, Middle East, Africa, South Korea, Thailand
- Inputs: 6 x digital
- Outputs: 4 x changeover contacts, 10 A @ 250 V AC each
- Contact type: Screw connection

ELDAS®: 505749108

CMS-10R-D/AC110-240V messaging system
Remote control of outputs and status queries of inputs and outputs via SMS, pager, voice call, push/email notification, remote configuration via web browser, application available for Android/iOS devices, supported communication standards GSM (2G) / UMTS (3G) / LTE (4G), integrated eSIM, operating voltage: 95 ... 240 V AC, frequency range 45 ... 65 Hz, Inputs: 6 x digital, Outputs: 4 x changeover contact (10 A / 250 V AC), 50 mm device antenna, Power consumption 6 VA, Operating temperature range -25 ... 55 °C, IP40, 5 TE DIN, grey plastic housing

Current type	AC (50 Hz)
Nominal voltage	110 V-240 V

Antenna connector type	SMA female
Antenna impedance	50 Ω
Antenna jack torque (max)	1
Antenna return loss	> 10 dB
Communication Standards	E-GSM (2G), E-UTRA (3G), LTE (4G)
eSIM	Embedded
Frequency bands Z1	E-GSM: B2, B3, B5, B8 \| E-UTRA: B1, B2, B4, B5, B6, B8, B19 \| LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28 \| LTE-TDD: B38, B39, B40, B41
Frequency bands Z2	E-GSM: B3, B8 \| E-UTRA: B1, B8 \| LTE-FDD: B1, B3, B7, B8, B20, B28A
Network coverage	Europe, Middle Eat, Africa, South Korea, Thailand

Classification	Manual Control (IEC 60730-1)
Operation	Type 1 (IEC 60730-1)
Software class	Class A (IEC 60730-1)

Housing material	PA
Ingress Protection	IP 40
Mounting	DIN Rail (IEC 60715) and Panel mount
Operation Altitude	Max. 2 000 m / 6 562 ft over sea level (without derating)
Operation Position	any
Operation temperature	-25 … 70 °C / -13 ... 158 °F
Relative huminity, no condensation	10 … 95 %
Storage temperature (no ice)	-40 … 85 °C / -40 ... 185 °F
Weight	280 g

Logic level '0' digital inputs	< 12 V AC
Logic level '1' digital inputs	> 24 V AC
Maximal voltage digital inputs	240 V AC
Number of digital inputs	6
Sampling rate per channel	10

Insulation rating between all ports	2 kV / 1 min
Insulation type	Reinforced
Overvoltage category	II
Pollution degree	2
Rated impulse voltage	2.5 kV / 1 min
Shock/vibration proof	IEC 61373

Contact material	AgNi
Electrical endurance at rated load AC-1 (cycles)	> 30 000
Maximum switching voltage	400 V AC
Number of relay outputs	4
Rated current AC-1	10 A (Identical current value for all outputs)
Rated load AC-1	3
Rated voltage	250 V AC
Recommended minimum load	10 mA, 12 V
Type of terminal	CO

Additional power consumption per output	0.45 VA
Frequency range	45 ... 65 Hz
Maximum power consumption	6 VA
Nominal operating voltage	95 ... 240 V AC
Nominal voltage	110 ... 240 V AC 50/60Hz
Typical power consumption (without any output set)	< 1 VA

Approvals	CE,UKCA
Standards	IEC/EN/BSI/UL/CSA 60730,CISPR 32 / EN 55032,IEC 61000-6-2/-3,ETSI EN 301511,ETSI EN 301908-1/-2/-13,IEC 60381-1/-2,IEC 62368-1,IEC/EN/BSI/AS/NZS/SANS 62368,IEC/EN/AS/NZS 61558-1/-2

Conductor cross section control / main circuit	4 mm² / AWG12 (Wire), 2.5 mm² / AWG14 (Stranded), 1.00 mm² / AWG17 (Ferrule). Use copper conductors only.
Contact type control / main circuit	Screw connection
Dual sleeve control / main circuit	1
Max. wire count control / main circuit	2
Nominal screw torque control / main circuit	0.5 Nm / 4.425 lbf in
Screwdrive control / main circuit	PZ2
