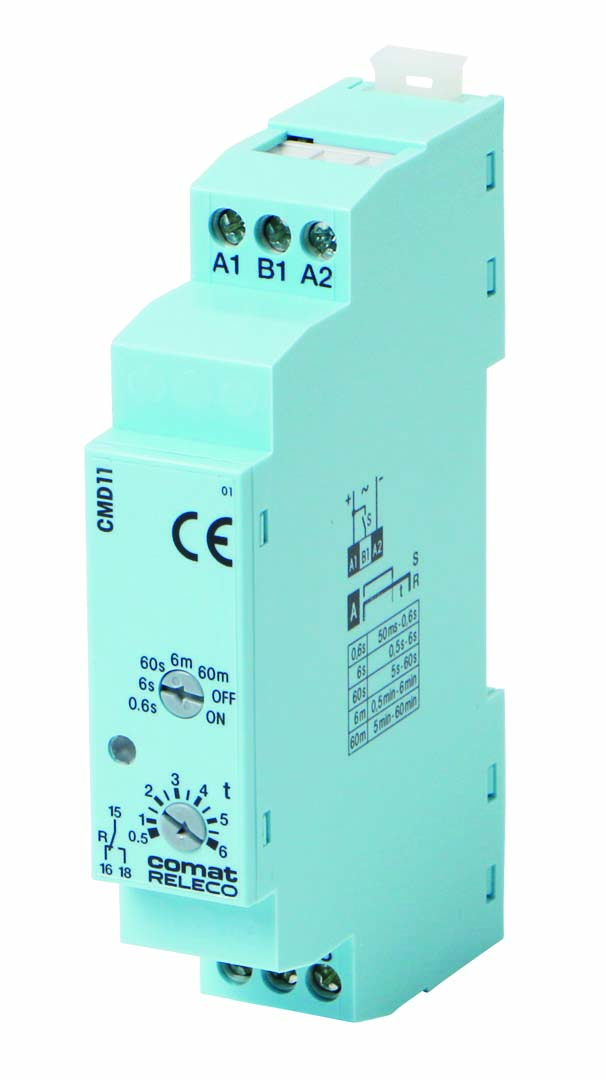

CMD11-E/UC12V
- 1 pole
- NO contacts
- Contact material AgNi
- Max 8 A @ 250 V AC / 30 V DC
- For installation in electrical distributor
- Time function: E
- NO contacts
- Contact material AgNi
- Max 8 A @ 250 V AC / 30 V DC
- For installation in electrical distributor
- Time function: E
ELDAS®:
528738442
| Current type | AC / DC (50 Hz) |
|---|---|
| Nominal voltage | 12 V |
| Current consumption on supply A1-A2 AC / DC | 50 mA / 32 mA |
|---|---|
| Frequency range | 0; 48 ... 62 Hz |
| Nominal voltage | 12 V AC / DC |
| Operating voltage range | 0.8 … 1.2 UN |
| Power consumption AC / DC | 32 mVA / 50 mW |
| Threshold voltage on input control B1 AC / DC | 5.2 V / 8.8 V |
| Conductor cross section control / main circuit | 2.5 mm2, 2 x 1.5 mm2 |
|---|---|
| Housing material | PA66 |
| Ingress Protection | IP 20 |
| Nominal screw torque control / main circuit | 0.5 Nm |
| Operation temperature | -40 … 60 °C |
| Storage temperature (no ice) | -40 … 85 °C |
| Weight | 48 g |
| Overvoltage category | III |
|---|---|
| Pollution degree | 2 |
| Rated test voltage control / main circuit | 2 kV rms / 1 min |
| Rated test voltage open contact | 1 kV rms / 1 min |
| Contact materials | AgNi |
|---|---|
| Inrush current | 15 A, 20 ms |
| Mechanical endurance (cycles) | 30 000 000 |
| Minimum load | 10 mA, 12 V |
| Number of contacts | 1 CO |
| Rated current | 8 A |
| Rated load AC-1 | 2000 VA |
| Rated voltage | 250 V AC |
| Approvals | UKCA,CE,EAC,cULus |
|---|---|
| Standards | IEC/EN 61812-1 |
| Timing functions | On delay (E) |
|---|---|
| Timing range | 50 ms … 0.6 s / 0.5 s … 6 s / 5 s … 60 s / 0.5 min … 6 min / 5 min … 60 min |
| Timing scale | 0.6 s / 6 s / 60 s / 6 min / 60 min |
