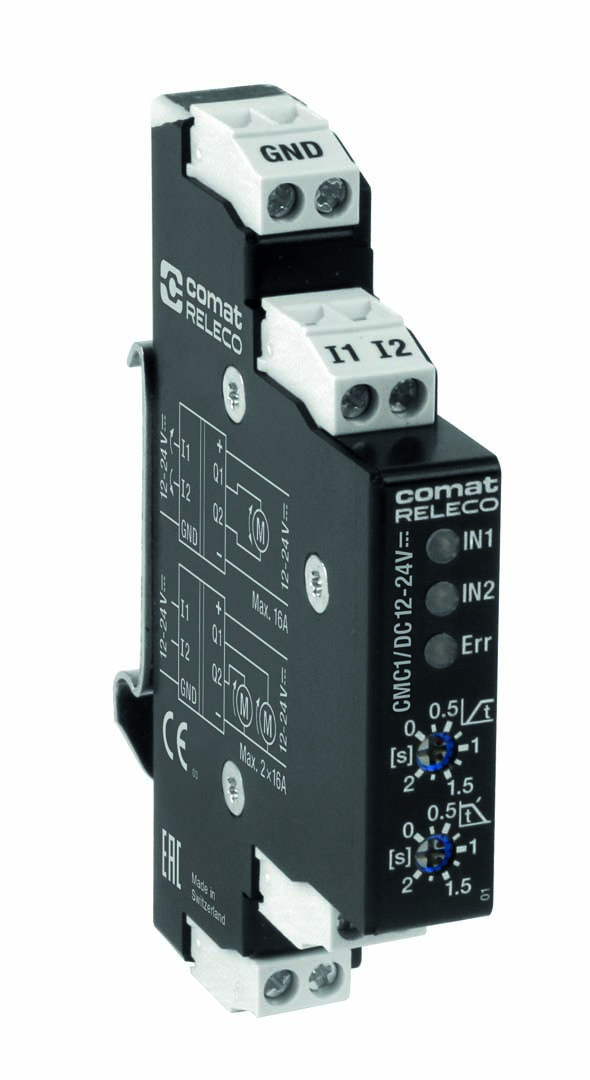

CMC1/DC12-24V
- Solid state
- Mosfet H-bridge
- 16 A @ 24 V
- For installation in electrical distributor
- digital inputs
- Mosfet H-bridge
- 16 A @ 24 V
- For installation in electrical distributor
- digital inputs
ELDAS®:
501111100
| Current type | DC |
|---|---|
| Nominal voltage | 12 V-24 V |
| Conductor cross section control / main circuit | 2.5 |
|---|---|
| Housing material | Aluminium |
| Ingress Protection | IP 20 |
| Mounting | TH35 (EN 60715) or back panel mounting |
| Nominal screw torque control / main circuit | 0.6 |
| Operation temperature | -25 … 60 °C |
| Storage temperature (no ice) | -40 … 85 °C |
| Weight | 80 g |
| Relative huminity, no condensation | 10 % ... 95 % |
|---|
| Maximum inrush current | 20 A, 3 s |
|---|---|
| Output type | MOSFET |
| Output voltage range | 8 … 28 V DC |
| Rated current | 16 A |
| Rated limit load DC-5 | 384 W |
| Rated voltage | 24 V DC |
| Maximum current consumption without load | 10 mA |
|---|---|
| Nominal voltage | 12 … 24 V DC |
| Operating voltage range | 8 … 28 V DC |
| Power consumption 12 V DC | 120 mW |
| Power consumption 24 V DC | 240 mW |
| Approvals | UKCA,CE,EAC |
|---|---|
| Standards | EN 61000-6,EN 61000-4,EN 55022,EN 60730-1 |
