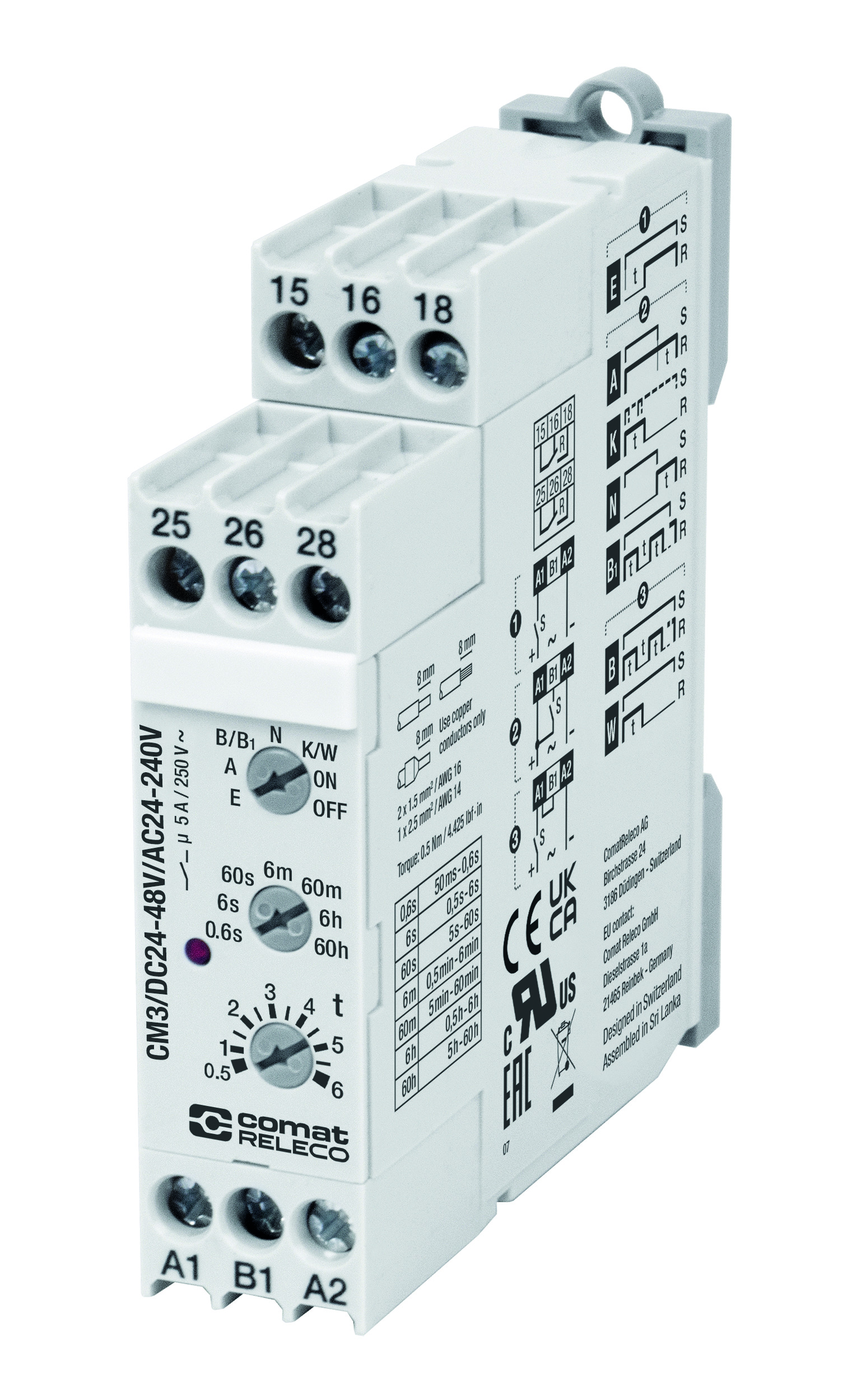

CM3/DC24-48/AC24-240V

- 2 pole
- Changeover contact
- Contact material AgNi
- 5 A @ 250 V AC
- Time functions: E, A, K, N, B, B1, W

ELDAS®: 528735522

The CM3 is a multifunctional time relay with 7 time switch functions, 2 service functions and 7 time ranges covering 50 ms to 60 hours. Another feature is the two separate changeover contacts for 5 A each.
The high permissible residual currents allow direct connection of 2-wire sensors in the lower voltage range.

Current type	DC
Nominal voltage	24 V-48 V

Current consumption on input control B1 AC / DC	< 6 mA / < 6 mA
Current consumption on supply A1-A2 AC / DC	< 40 mA / < 40 mA
Frequency range	0; 45 ... 63 Hz
Nominal voltage	24 ... 48 V DC / 24 ... 240 V AC
Operating voltage range	19 … 250 V AC / 19 ... 60 V DC
Power consumption AC / DC	15 VA / 1.2 W
Threshold voltage on input control B1 AC / DC	11 ... 13 V / 13 ... 18 V

Conductor cross section control / main circuit	2.5 mm², 2 x 1.5 mm²
Housing material	PC
Ingress Protection	IP 20
Nominal screw torque control / main circuit	0.5 Nm
Operation temperature	-25 … 60 °C
Storage temperature (no ice)	-40 … 85 °C
Weight	72 g

Overvoltage category	III
Pollution degree	2
Rated test voltage control / main circuit	2.5 kV rms / 1 min
Rated test voltage main / main circuit	2.5 kV rms / 1 min
Rated test voltage open contact	1 kV rms / 1 min

Contact materials	AgNi
Inrush current	10 A, 10 ms
Mechanical endurance (cycles)	15 000 000
Minimum load	10 mA, 10 V
Number of contacts	2 CO
Rated current	5 A
Rated load AC-1	1250 VA
Rated voltage	250 V

Approvals	UKCA,CE,EAC,cURus
Standards	IEC/EN 61812-1

Timing range	50 ms … 0.6 s / 0.5 s … 6 s / 5 s … 60 s / 0.5 min … 6 min / 5 min … 60 min / 0.5 h … 6 h / 5 h … 60 h
Timing scale	0.6 s / 6 s / 60 s / 6 min / 60 min / 6 h / 60 h
