CM3/DC12-24V
- 2 pole
- Changeover contact
- Contact material AgNi
- 5 A @ 250 V AC
- Time functions: E, A, K, N, B, B1, W
- Changeover contact
- Contact material AgNi
- 5 A @ 250 V AC
- Time functions: E, A, K, N, B, B1, W
ELDAS®:
528735512

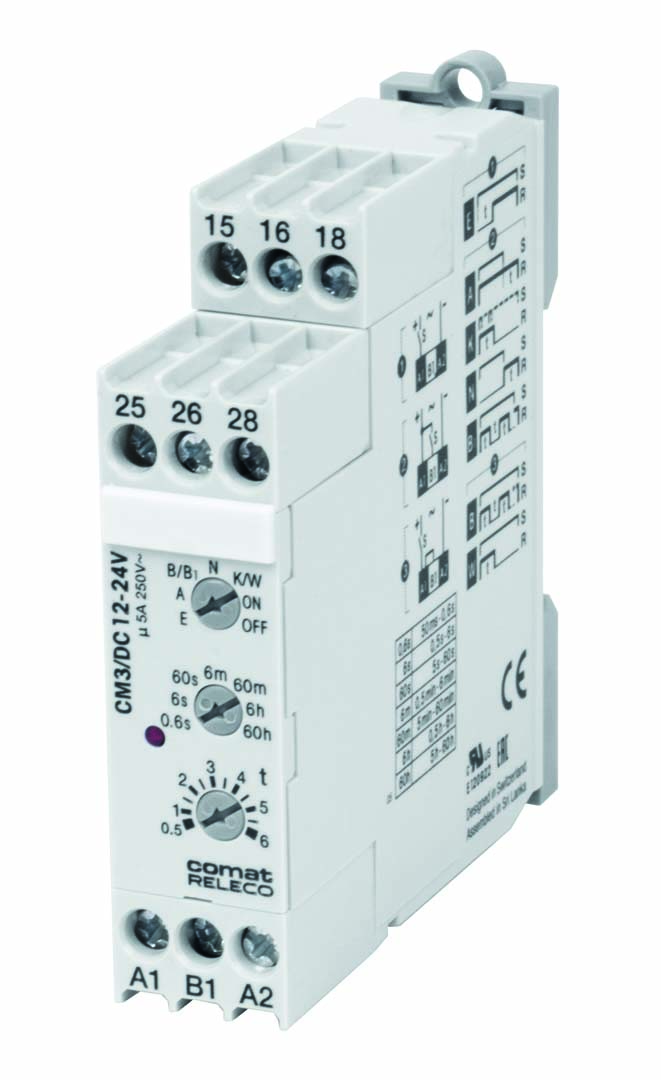

The CM3 is a multifunctional time relay with 7 time switch functions, 2 service functions and 7 time ranges covering 50 ms to 60 hours. Another feature is the two separate changeover contacts for 5 A each.
The high permissible residual currents allow direct connection of 2-wire sensors in the lower voltage range.
The high permissible residual currents allow direct connection of 2-wire sensors in the lower voltage range.
| Current type | DC |
|---|---|
| Nominal voltage | 12 V-24 V |
| Current consumption on input control B1 AC / DC | - / < 13.8 mA |
|---|---|
| Current consumption on supply A1-A2 AC / DC | - / < 45 mA |
| Nominal voltage | 12 ... 24 V DC |
| Operating voltage range | 9.6 … 28.8 V DC |
| Power consumption AC / DC | - / 1.2 W |
| Threshold voltage on input control B1 AC / DC | - / 5.8 ... 6.5 V |
| Conductor cross section control / main circuit | 2.5 mm2, 2 x 1.5 mm2 |
|---|---|
| Housing material | PC |
| Ingress Protection | IP 20 |
| Nominal screw torque control / main circuit | 0.5 Nm |
| Operation temperature | -25 … 60 °C |
| Storage temperature (no ice) | -40 … 85 °C |
| Weight | 72 g |
| Overvoltage category | III |
|---|---|
| Pollution degree | 2 |
| Rated test voltage control / main circuit | 2.5 kV rms / 1 min |
| Rated test voltage main / main circuit | 2.5 kV rms / 1 min |
| Rated test voltage open contact | 1 kV rms / 1 min |
| Contact materials | AgNi |
|---|---|
| Inrush current | 10 A, 10 ms |
| Mechanical endurance (cycles) | 15 000 000 |
| Minimum load | 10 mA, 10 V |
| Number of contacts | 2 CO |
| Rated current | 5 A |
| Rated load AC-1 | 1250 VA |
| Rated voltage | 250 V |
| Approvals | UKCA,CE,EAC,cURus |
|---|---|
| Standards | IEC/EN 61812-1 |
| Timing range | 50 ms … 0.6 s / 0.5 s … 6 s / 5 s … 60 s / 0.5 min … 6 min / 5 min … 60 min / 0.5 h … 6 h / 5 h … 60 h |
|---|---|
| Timing scale | 0.6 s / 6 s / 60 s / 6 min / 60 min / 6 h / 60 h |
