CM2/UC110-240V

- 2-polig
- CO contact, NO contact
- Contact material AgNi
- 6 A @ 250 V AC
- Time functions: E, A, K, W

ELDAS®: 528735382

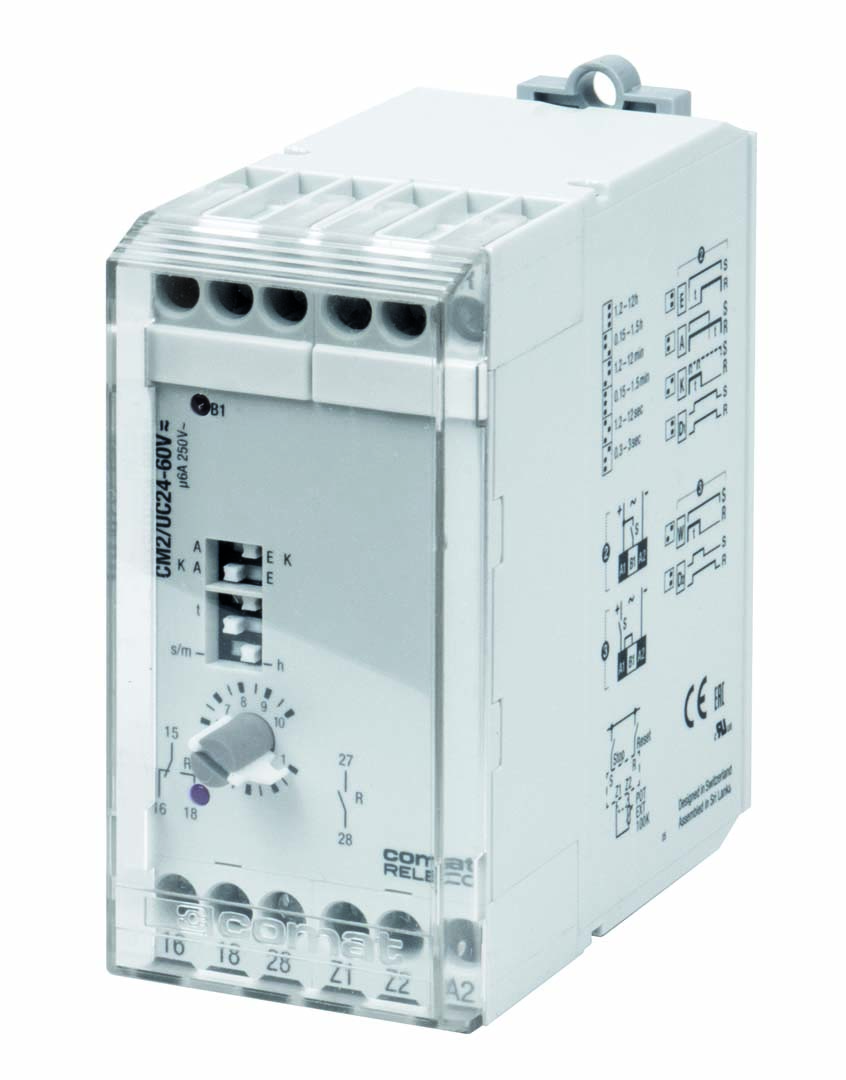

The CM2 time relay offers the time functions on-delay (E), off-delay (A), on-wiping (K) and on-wiping with limit (W) with a time range of 0.3 s to 12 hours. Switching is carried out via dip switches, the time fine adjustment via potentiometer.
The device has time stop and reset control functions.
As a special feature, a remote potentiometer with a cable length - depending on the wiring - of max. 50 m can be used instead of the built-in time setting. The functions D1, D2 (OFF, R=S) are available for diagnostic purposes.
LED indicators for control ‘S’ and the output status are standard.

Current type	AC / DC (50 Hz)
Nominal voltage	110 V-240 V

Current consumption on input control B1 AC / DC	< 10 mA / < 10 mA
Current consumption on supply A1-A2 AC / DC	< 25 mA / < 25 mA
Frequency range	0; 40 ... 60 Hz
Nominal voltage	110 ... 240 V AC / DC
Operating voltage range	90 … 265 V AC
Power consumption AC / DC	6 VA / 6 W
Threshold voltage on input control B1 AC / DC	70 V / 85 V

Conductor cross section control / main circuit	2.5 mm², 2 x 1.5 mm²
Housing material	PC
Ingress Protection	IP 20
Nominal screw torque control / main circuit	0.5 Nm
Operation temperature	-25 … 60 °C
Storage temperature (no ice)	-40 … 85 °C
Weight	139 g

Overvoltage category	III
Pollution degree	2
Rated test voltage control / main circuit	2 kV rms / 1 min
Rated test voltage open contact	1 kV rms / 1 min

Contact materials	AgNi
Electrical endurance at rated load DC-1 (cycles)	5 000 000
Inrush current	10 A, 10 ms
Mechanical endurance (cycles)	10 000 000
Minimum load	10 mA, 12 V
Number of contacts	1 NO + 1 CO
Rated current	6 A
Rated load AC-1	1500 VA
Rated load DC	100 W, 24 V
Rated voltage	250 V

Approvals	UKCA,CE,EAC,cURus
Standards	IEC/EN 61812-1

Timing range	0.3 s … 3 s / 1.2 s … 12 s / 0.15 min … 1.5 min / 1.2 min … 12 min / 0.15 h … 1.5 h / 1.2 h … 12 h
Timing scale	3 s / 12 s / 1.5 min / 12 min / 1.5 h / 12 h
