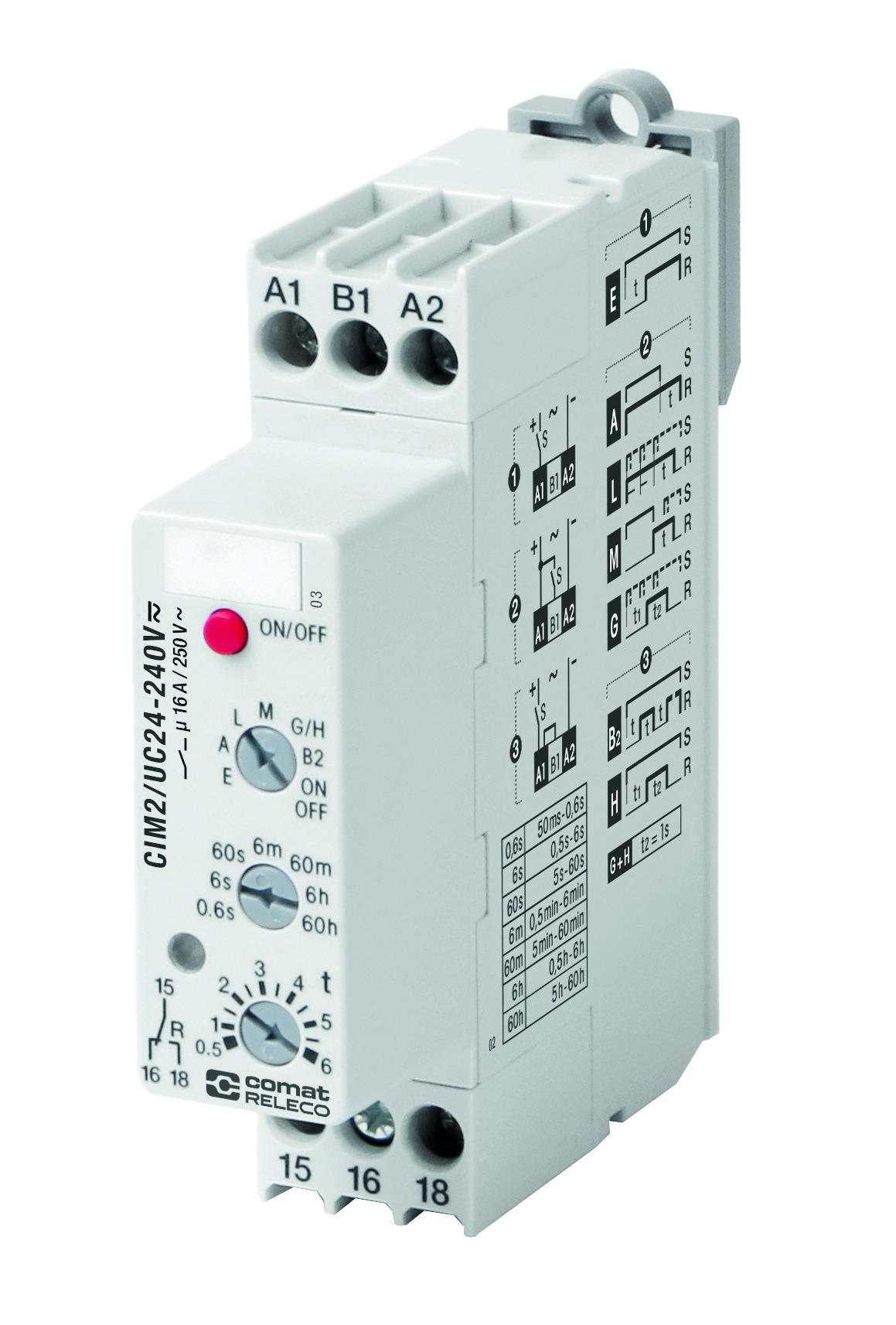

CIM2/UC24-240V
- 1 pole
- Changeover contact
- Contact material AgNi
- Max 16 A @ 250 V AC / 30 V DC
- For installation in electrical distributor
- Time functions: E, A, L, M, G, B2, H
- Changeover contact
- Contact material AgNi
- Max 16 A @ 250 V AC / 30 V DC
- For installation in electrical distributor
- Time functions: E, A, L, M, G, B2, H
ELDAS®:
528730082
| Current type | AC / DC (50 Hz) |
|---|---|
| Nominal voltage | 24 V-240 V |
| Current consumption on input control B1 AC / DC | < 22 mA / < 22 mA |
|---|---|
| Current consumption on supply A1-A2 AC / DC | < 23 mA / < 23 mA |
| Frequency range | 0; 16 ... 63 Hz |
| Nominal voltage | 24 … 240 V AC / DC |
| Operating voltage range | 16.8 … 250 V AC / DC |
| Power consumption AC / DC | 1.2 VA / 430 mW |
| Threshold voltage on input control B1 AC / DC | 13 V / 15 V |
| Ambient temperature operation derated power | -40 … 60 °C (IN 13 A) |
|---|---|
| Conductor cross section control / main circuit | 2.5 mm2, 2 x 1.5 mm2 |
| Housing material | PC |
| Ingress Protection | IP 20 |
| Nominal screw torque control / main circuit | 0.5 Nm |
| Operation temperature | -40 ... 60 °C |
| Storage temperature (no ice) | -40 ... 85 °C |
| Weight | 70 g |
| Overvoltage category | III |
|---|---|
| Pollution degree | 2 |
| Rated test voltage control / main circuit | 2.5 kV rms / 1 min |
| Rated test voltage open contact | 1 kV rms / 1 min |
| Contact materials | AgNi |
|---|---|
| Inrush current | 30 A, 10 ms |
| Mechanical endurance (cycles) | 30 000 000 |
| Minimum load | 10 mA, 10 V |
| Number of contacts | 1 CO |
| Rated current | 16 A |
| Rated load AC-1 | 4000 VA |
| Rated voltage | 250 V AC |
| Switching at zero crossing | yes (td > 0.6 s) |
| Approvals | UKCA,CE,cURus,EAC |
|---|---|
| Standards | IEC/EN 61812-1 |
| Timing range | 50 ms … 0.6 s / 0.5 s … 6 s / 5 s … 60 s / 0.5 min … 6 min / 5 min … 60 min / 0.5 h … 6 h / 5 h … 60 h |
|---|---|
| Timing scale | 0.6 s / 6 s / 60 s / 6 min / 60 min / 6 h / 60 h |
