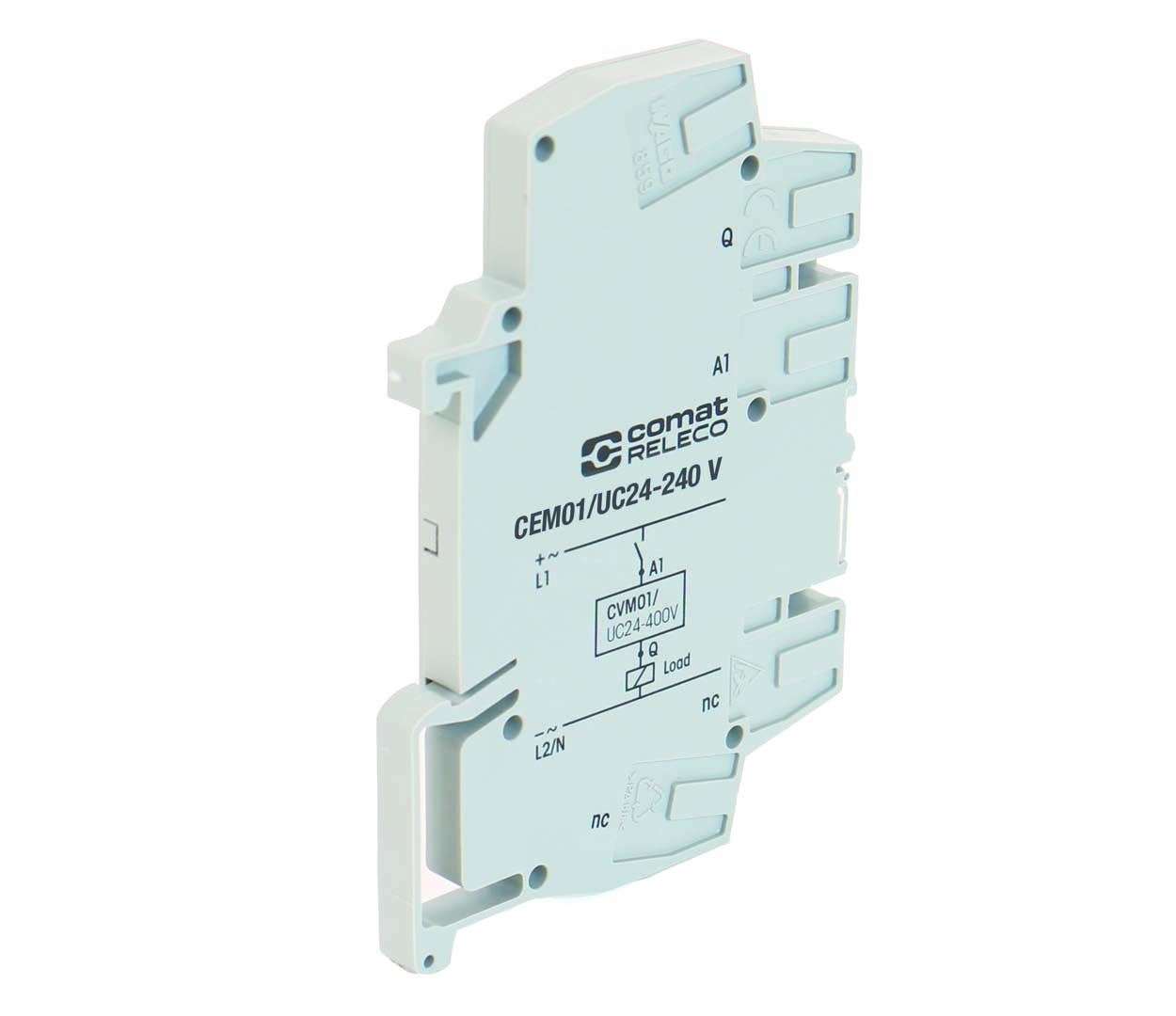

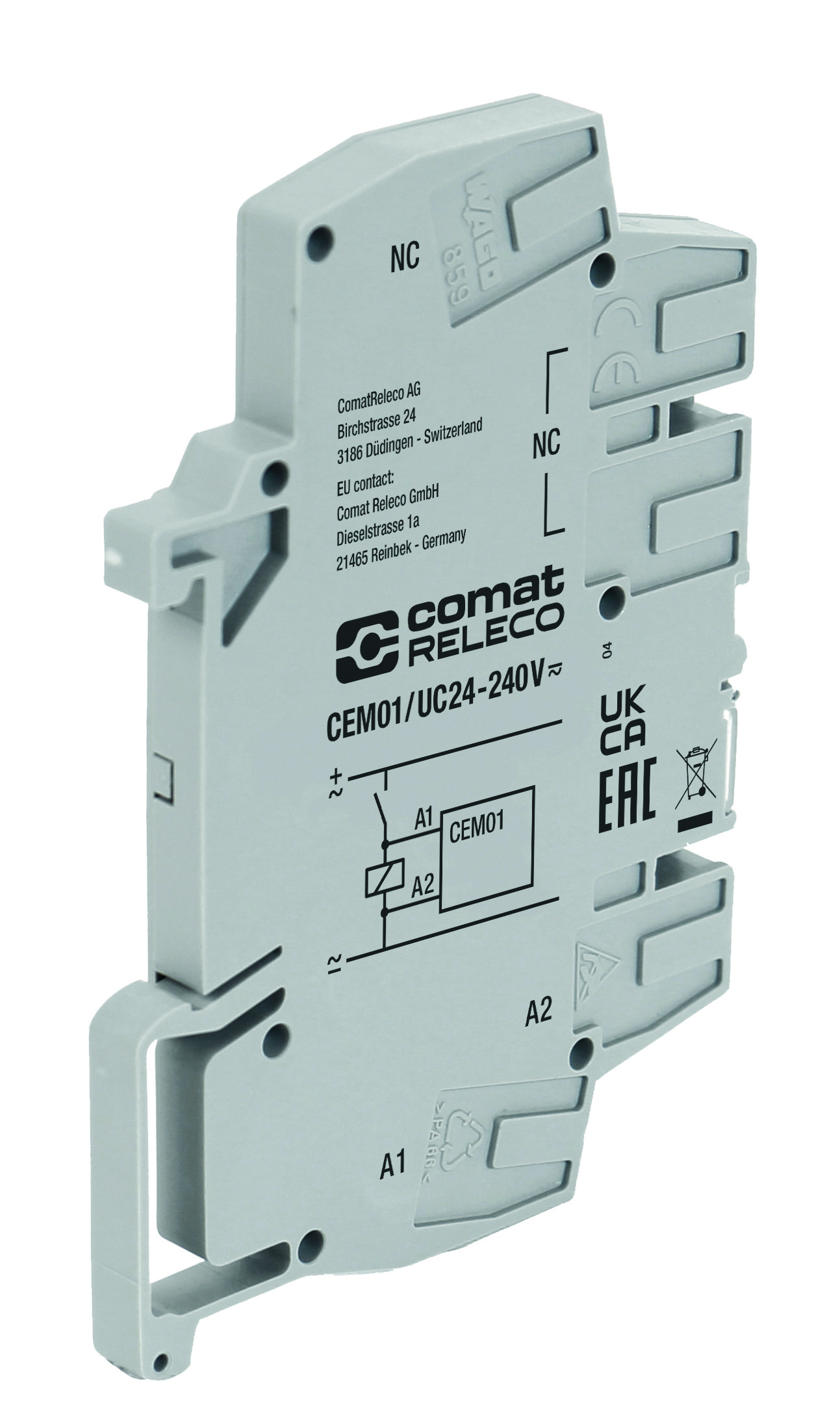

CEM01/UC24-240V
| Nominal voltage | 24 V-240 V |
|---|---|
| Current type | AC / DC (50 Hz) |
| Mounting position | Any |
|---|---|
| Operation temperature | -25 … 60 °C / -13 ... 140 °F |
| Operation Altitude | Max. 2 000 m / 6 562 ft over sea level (without derating) |
| Color | Grey |
| Housing material | PA 66 |
| Weight | 15 g |
| Storage temperature (no ice) | -40 … 85 °C / -40 ... 185 °F |
| Mounting | DIN rail (IEC 60715) |
| Relative huminity, no condensation | 10 ... 95 % |
| Ingress Protection | IP 20 |
| Frequency range | 15 … 63 Hz |
|---|---|
| Nominal voltage | 24 … 240 V UC |
| Operating voltage range | 19 … 250 V |
| Approvals | UKCA,CE |
|---|---|
| Standards | EN 61000-6-2,EN 61000-6-3,EN 60730-1 |
| Stripping Length control / main circuit | 5 … 6 mm / 0.2 … 0.24" |
|---|---|
| Dual sleeve control / main circuit | 1 |
| Contact type control / main circuit | Cage clamp |
| Conductor cross section control / main circuit | 2.5 mm2 / AWG14 (Wire), 2.5 mm2 / AWG14 (Stranded), 1.00 mm2 / AWG17 (Ferrule). Use copper conductors only. |
| Max. wire count control / main circuit | 2 |
| Wiring points | 5 |
