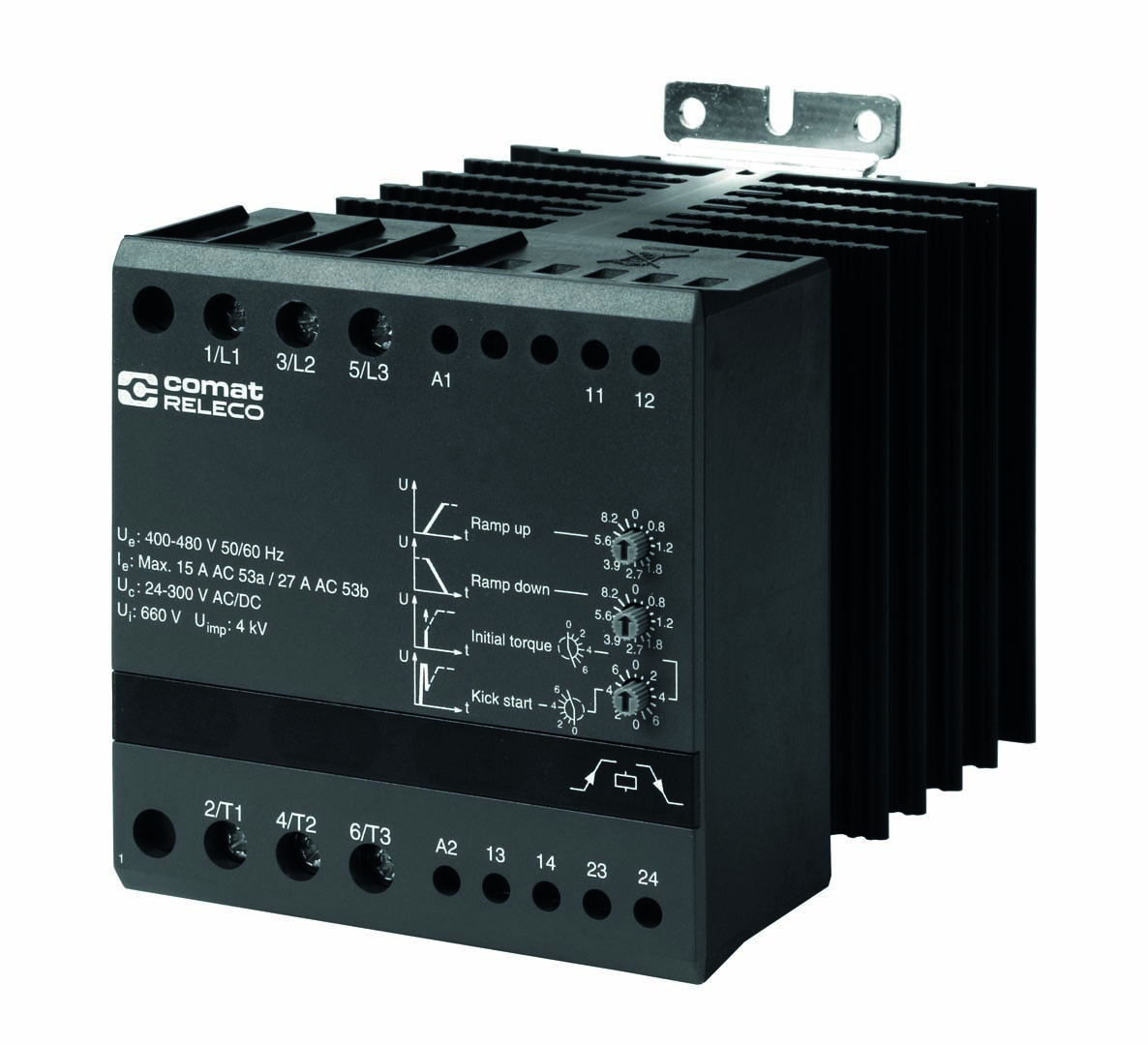

CCM3H425
- 2-pole
- Thyristor
- 25 A @ 400 V
- Thyristor
- 25 A @ 400 V
ELDAS®:
501111204
| Frequency range | 50 / 60 Hz |
|---|---|
| Operating voltage range | 24 ... 230 V AC/DC |
| Ramp-down time | 0.5 … 10 s |
| Ramp-up time | 0.5 … 10 s |
| Release voltage | 5 V AC/DC |
| Torque adjustment | 0 … 85 % |
| Ambient temperature operation derated power | -5 ... 60 °C |
|---|---|
| Conductor cross section control / main circuit | 2.5 mm2 / 6 mm2 |
| Housing material | PPO |
| Ingress Protection | IP 20 |
| Mounting | TH35 (EN 60715) or back panel mounting |
| Nominal screw torque control / main circuit | 0.5 Nm / 1.2 Nm |
| Operation temperature | -5 ... 40 °C |
| Storage temperature (no ice) | -20 ... 80 °C |
| Weight | 1 050 g |
| Overvoltage category | III |
|---|---|
| Pollution degree | 3 |
| Rated impulse withstand voltage open contact | 4 kV / 1 min |
| Rated insulation voltage | 660 V |
| Controlled phases | 2 |
|---|---|
| Inrush current | 150 A |
| Leakage current | 5 mA |
| Minimum load | 250 mA |
| Number of outputs | 3 |
| Output type | SCR |
| Output voltage range | 400 … 480 V AC |
| Peak reverse voltage | 1300 Vrrm |
| Rated current AC-53b | 25 A |
| Rated limit load | 6300 Asup2/sups |
| Rated voltage | 400 V |
| Reverse voltage | 1200 Vrrm |
| Switching frequency (cycles / h) | 3000 |
| Approvals | UKCA,CE,cULus |
|---|---|
| Standards | IEC/EN 60947-4-2 |
