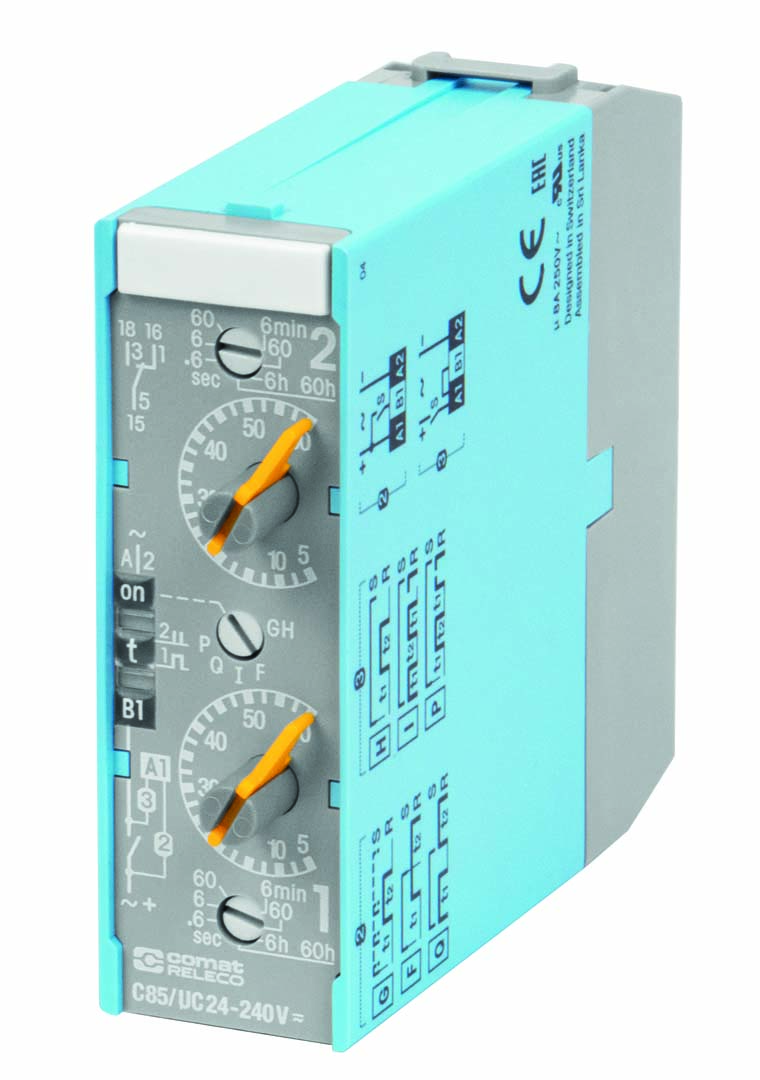

C85/UC24-240V

- 1 pole
- Changeover contact
- Contact material AgNi
- 8 A @ 250 V AC / 8 A @ 30 V DC
- Time functions: I, P, F, Q, G, H

ELDAS®: 528736202

The C85 is a multifunction time relay with 5 timer functions (switch-on and switch-off times can be set separately), 1 service function and 7 time ranges covering the range from 50 ms to 60 hours.

Current type	AC / DC (50 Hz)
Nominal voltage	24 V-240 V

Current consumption on input control B1 AC / DC	6.5 mA / 3.5 mA
Current consumption on supply A1-A2 AC / DC	< 40 mA / < 35mA
Frequency range	0; 45...63 Hz
Nominal voltage	24 … 240 V AC / DC
Operating voltage range	20 ... 265 V AC/DC
Power consumption AC / DC	10 VA / 1.8 W
Threshold voltage on input control B1 AC / DC	= 0.32 x Operating Voltage + 6 (min) = 0.38 x Operating Voltage + 9 (max)

Housing material	PC
Ingress Protection	IP 20
Operation temperature	-25 … 60 °C
Storage temperature (no ice)	-40 … 85 °C
Weight	63 g

Overvoltage category	III
Pollution degree	2
Rated test voltage control / main circuit	2 kV rms / 1 min
Rated test voltage open contact	1 kV rms / 1 min

Contact materials	AgNi
Inrush current	30 A, 10 ms
Mechanical endurance (cycles)	30 000 000
Minimum load	10 mA, 10 V
Number of contacts	1 CO
Rated current	8 A
Rated load AC-1	1250 VA
Rated voltage	250 V

Approvals	UKCA,CE,cURus,EAC
Standards	IEC/EN 61812-1

Timing range	50 ms … 0.6 s / 0.5 s … 6 s / 5 s … 60 s / 0.5 min … 6 min / 5 min … 60 min / 0.5 h ... 6 h / 5 h … 60 h
Timing scale	0.6 s / 6 s / 60 s / 6 min / 60 min / 6 h / 60 h
