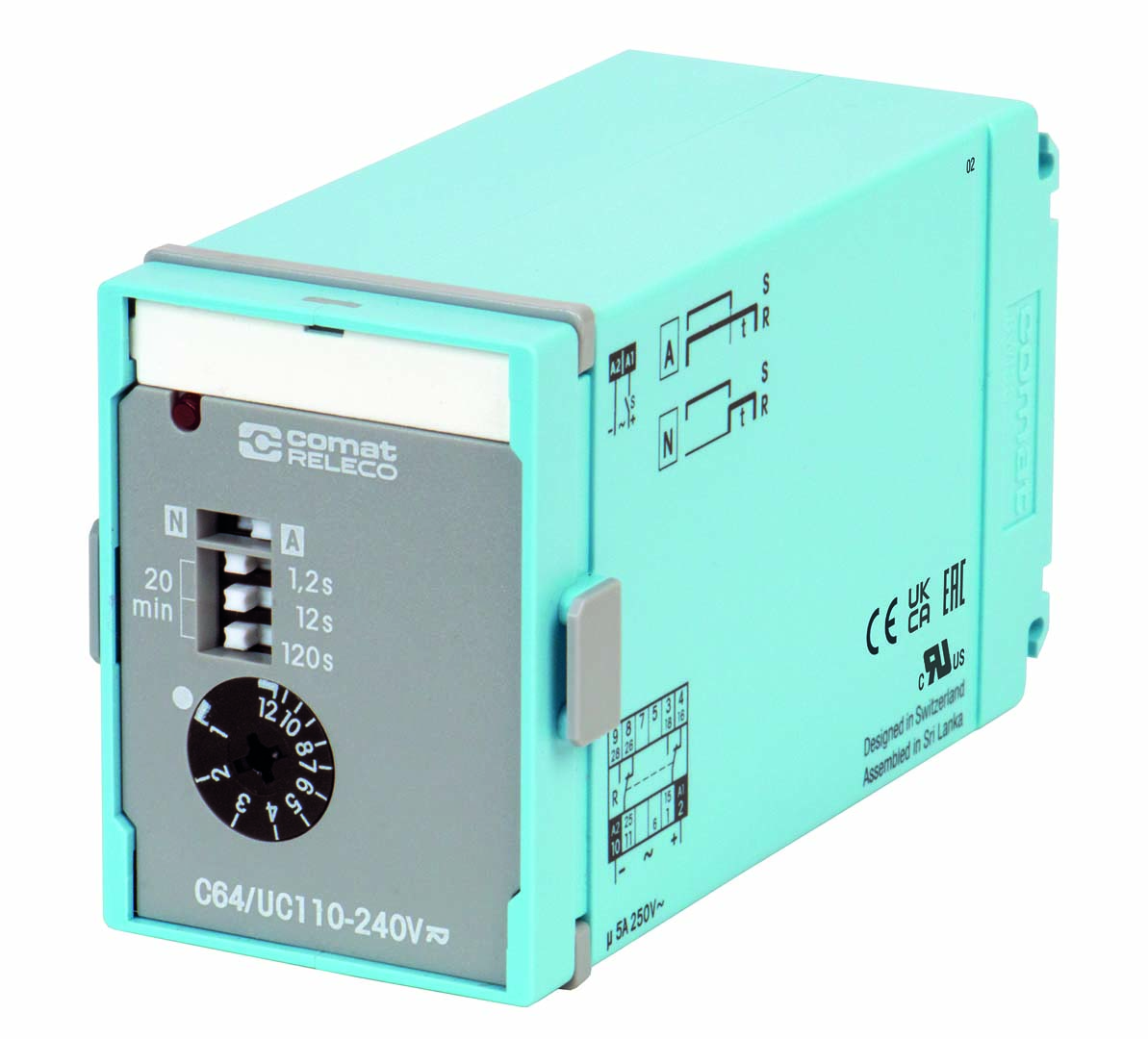

C64/UC110-240V
- 2 pole
- Changeover contacts
- Contact material AgNi
- 5 A @ 250 V AC / 5 A @ 30 V
- Time functions: A, N
- Changeover contacts
- Contact material AgNi
- 5 A @ 250 V AC / 5 A @ 30 V
- Time functions: A, N
ELDAS®:
528726002
| Current type | AC / DC (50 Hz) |
|---|---|
| Nominal voltage | 110 V-240 V |
| Current consumption on supply A1-A2 AC / DC | 5 mA / 5 mA |
|---|---|
| Frequency range | 0; 50 ... 400 Hz |
| Nominal voltage | 110 ... 240 V AC / DC |
| Operating voltage range | 88 ... 265 V AC / DC |
| Power consumption AC / DC | 1.2 VA / 1.2 W |
| Housing material | PC |
|---|---|
| Ingress Protection | IP 20 |
| Operation temperature | -25 … 60 °C |
| Storage temperature (no ice) | -40 … 85 °C |
| Weight | 75 g |
| Overvoltage category | III |
|---|---|
| Pollution degree | 2 |
| Rated test voltage control / main circuit | 2 kV rms / 1 min |
| Rated test voltage main / main circuit | 2 kV rms / 1 min |
| Rated test voltage open contact | 1 kV rms / 1 min |
| Contact materials | AgNi |
|---|---|
| Inrush current | 10 A, 10 ms |
| Mechanical endurance (cycles) | 5 000 000 |
| Minimum load | 10 mA, 12 V |
| Number of contacts | 2 CO |
| Rated current | 5 A |
| Rated load AC-1 | 1250 VA |
| Rated voltage | 250 V |
| Approvals | CE,EAC,cURus,UKCA |
|---|---|
| Standards | IEC/EN 61812-1 |
| Timing functions | Ausschaltwischend (N),Ausschaltverzögerung (A) |
|---|---|
| Timing range | 0.1 s … 1.2 s / 1 s … 12 s / 10 s … 120 s / 1.7 min … 20 min |
| Timing scale | 1.2 s / 12 s / 120 s / 20 min |
