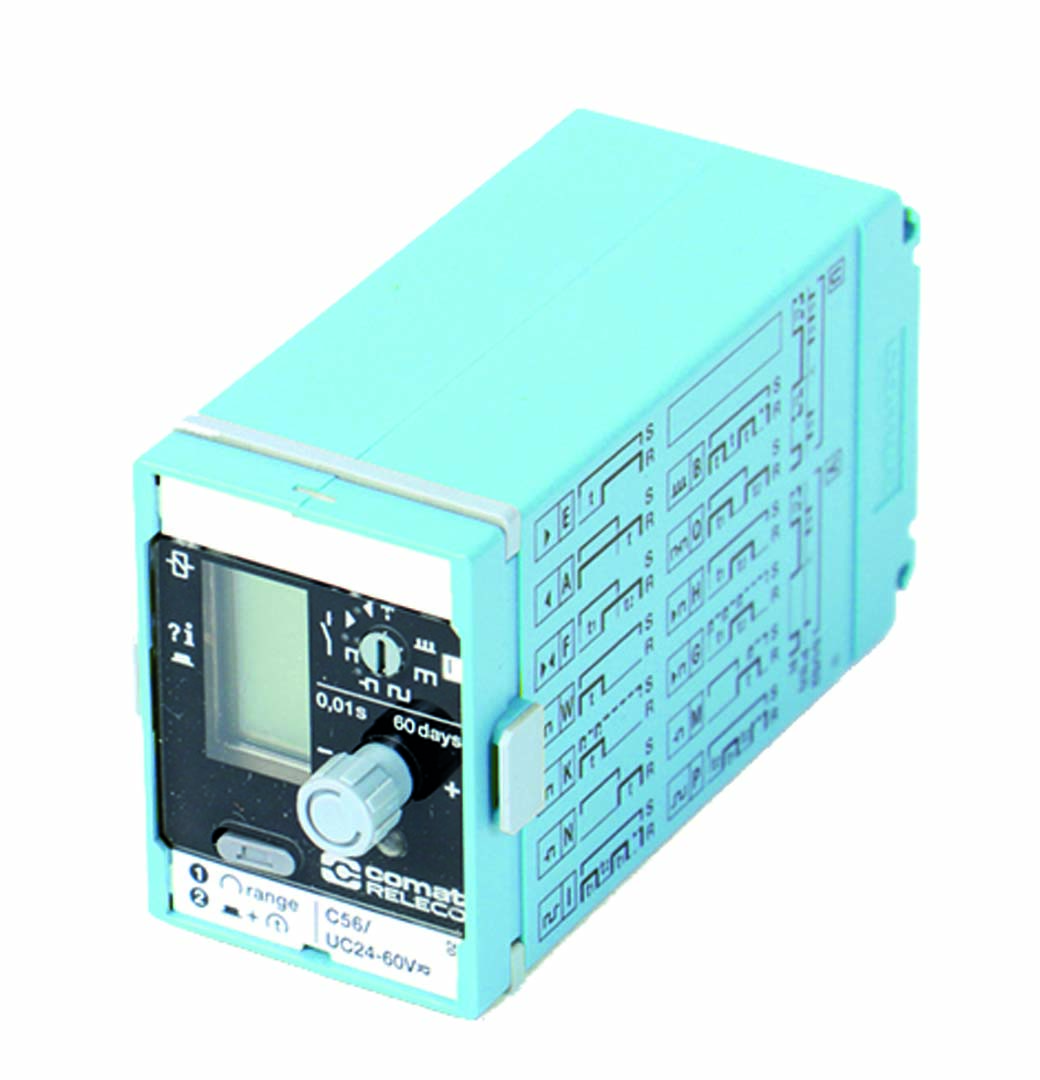

C56/UC24-60V

- 2-polig
- Changeover and NO contact
- Contact material AgNi
- 5 A @ 250 V AC / 5 A @ 35 V DC
- Time functions: E, W, H, B, I, P, A, L, N, M, G, F, Q, U, V

ELDAS®:

The C55 and C56 are high-quality multifunctional devices with up to 15 functions and large time ranges from 10 ms to 60 days. The devices have been developed for control ranges from 24 to 240 V and are capable of switching a rated current of up to 8 A at a rated voltage of 240 V.

Current type	AC / DC (50 Hz)
Nominal voltage	24 V-60 V

Current consumption on supply A1-A2 AC / DC	80 mA/ 80 mA
Frequency range	0; 50 ... 400 Hz
Nominal voltage	24 ... 60 V AC / DC
Operating voltage range	19 … 75 V AC / DC
Power consumption AC / DC	2 VA / 2 W

Housing material	PC
Ingress Protection	IP 20
Operation temperature	-25 … 60 °C
Storage temperature (no ice)	-40 … 85 °C
Weight	80 g

Overvoltage category	III
Pollution degree	2
Rated test voltage control / main circuit	2 kV rms / 1 min
Rated test voltage main / main circuit	2 kV rms / 1 min
Rated test voltage open contact	1 kV rms / 1 min

Contact materials	AgNi
Inrush current	10 A, 10 ms
Mechanical endurance (cycles)	5 000 000
Minimum load	10 mA, 12 V
Number of contacts	1 CO, 1 NO
Rated current	5 A
Rated load AC-1	1250 VA
Rated voltage	250 V
